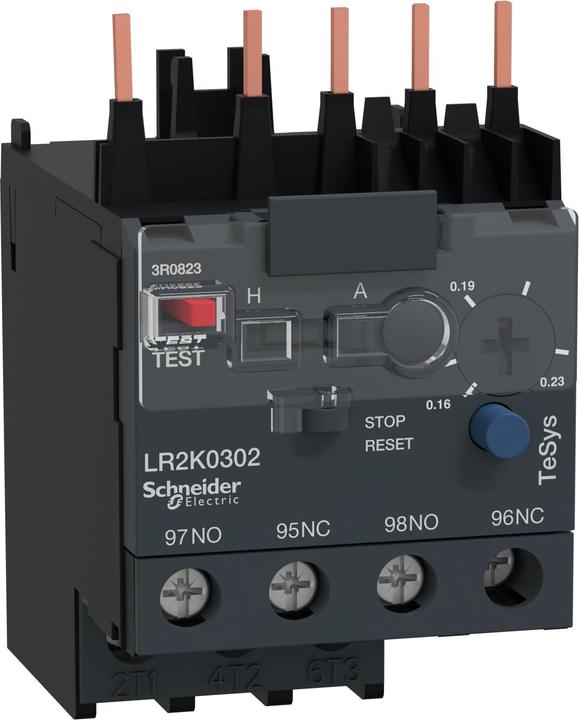

Schneider Electric Thermal protection relay 0.16-0.23A

Ratings
BrandMore from Schneider Electric
Delivered between Sat, 13.9. and Tue, 23.9.
More than 10 pieces in stock at supplier
free shipping

Electric current output

Product details

FLC motor power: 0.16 to 0.23 A
Control voltage: 250 Vdc, 690 Vac
Nominal contact current: 230 mA
Contact configuration: 3P
Range: TeSys
Rated contact voltage: 690 V ac
Mounting type: Direct contactor
Series: LR2K
Contact configuration: Normally open/normally closed contact
Number of auxiliary contacts: 2
Power rating: 100 W
Reset type: Automatic, manual
Length: 116 mm
Operating temperature range: -20 to +55 °C

CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB. IEC 947, BS4941, VDE 0660, NFC63-650. Protective relay for thermal overload. Sensitive to phase failure. Test button. Trip fault indication. Manual or automatic reset. Temperature compensated tripping -20 to +55 °C.

Key specifications

input voltage
690 V
Output voltage
690 V
Output current type
AC/DC
Electric current output
0.23 A
Relay type
Overload relay
Item number
9727455

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LR2K0302
Release date
24.9.2018

Relay properties

Relay type
Overload relay
input voltage
690 V
Output voltage
690 V
Electric current output
0.23 A
Output current type
AC/DC
Switching function
Toggle switch
Number of openers
1 x
Number of closers
1 x
Max. Switching capacity
0.16 kW
Manufacturer Type
LR2K0302

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Czech Republic
