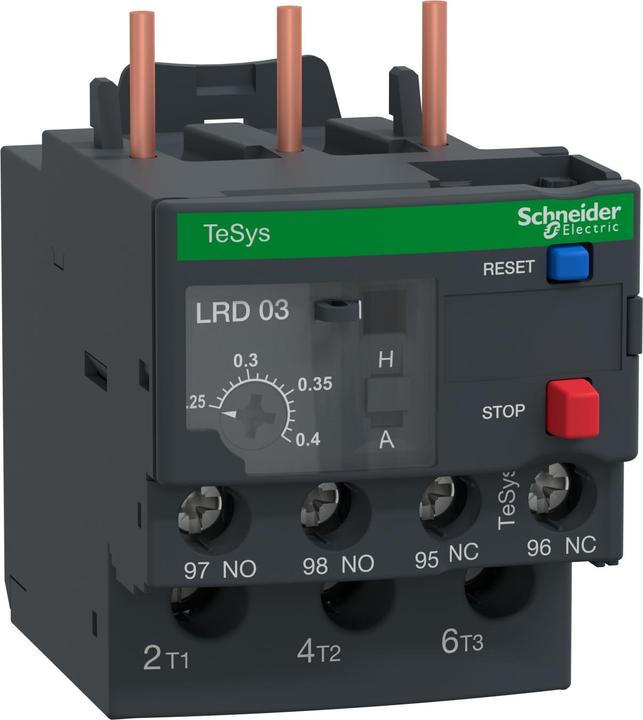

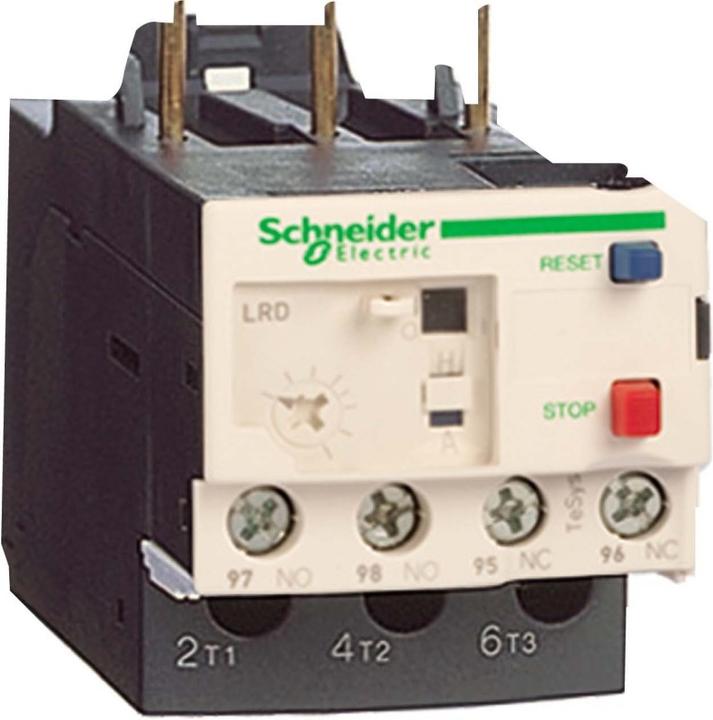

Schneider Electric Overload relay 0.24-0.40A

FLC motor power: 0.25 to 0.4 A
Contact rated current: 400 mA
Contact configuration: 3P
Range: TeSys
Contact rated voltage: 690 V AC
Mounting type: Direct contactor
Series: LRD0
Contact configuration: Normally open/normally closed contact
Number of auxiliary contacts: 2
Connection type: Screw mounting
Width: 45 mm
Operating temperature range: -20 to +60 °C

UL and CSA certified. This three-pole thermal overload relay protects AC circuits from overload, phase failure, long start-up times, and continuously stalled motors. Features include a dial for setting adjustable relays, a test button, a stop button, manual/auto reset, and a trip indicator. It has a cover for sealing and includes one normally closed/one normally open contact as auxiliary contacts. It can be directly mounted under three-pole contactors or independently mounted on DIN rails. Insulation voltage is 600 V with a dielectric strength of 6 kV.
