Electric current output19
Product details
Nominal contact current: 5 A
Contact configuration: 3P
Range: TeSys D
Mounting type: Direct mounting
Supply voltage: 690 V AC
Series: LRD4
Contact configuration: Normally open/normally closed
Number of auxiliary contacts: 2
Power: 100 W, 600 VA
Reset type: Automatic, manual
Depth: 132 mm
Operating temperature max: +60°C

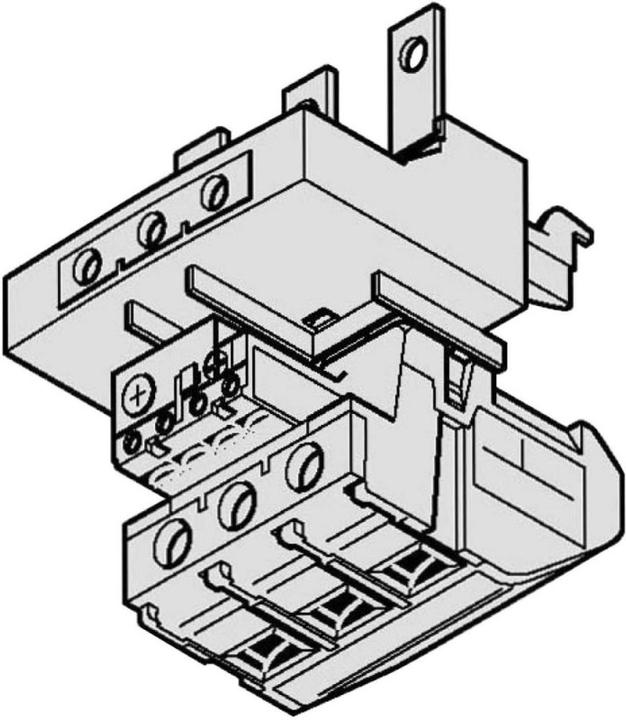

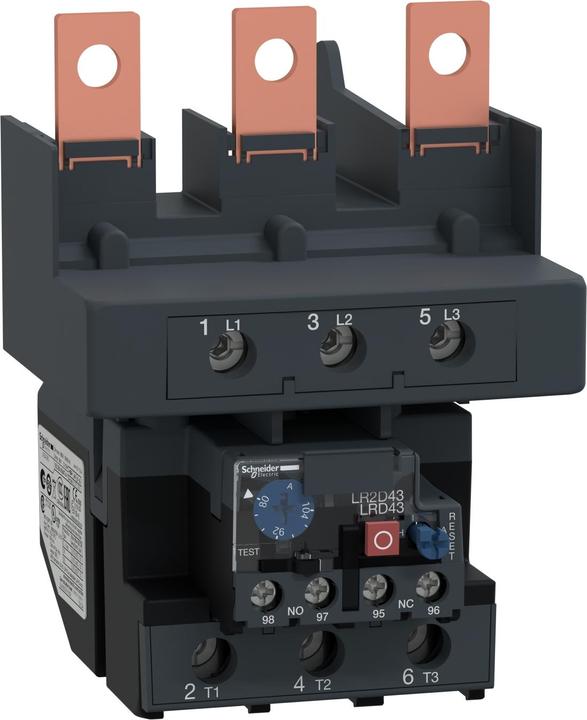

TeSys D series bimetallic thermal overload relay is a professional series of bimetallic thermal overload relays from Schneider Electric. The relays are used with TeSys D series contactors and are equipped to provide lockable, sealable, manual/automatic reset and test trip. These relays are suitable for industrial motor control applications and are designed for direct mounting.
Output voltage | 690 V |
Electric current output | 100 A |
Number of poles | 3x |
Item number | 9737627 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | LRD4365 |
Release date | 24.9.2018 |
Output voltage | 690 V |
Electric current output | 100 A |
Number of openers | 1x |
Number of closers | 1x |
Number of poles | 3x |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29.26 kg |
Climate contribution | CHF 0.70 |
