Electric current output19
Product details
FLC Motor current: 0.1 to 0.16 A
Rated contact current: 160 mA
Contact configuration: 3P
Series: TeSys
Rated contact voltage: 690 V AC
Mounting type: Direct contactor
Series: LRD0
Connection type: Screw mounting
Reset type: Automatic, manual
Width: 45 mm

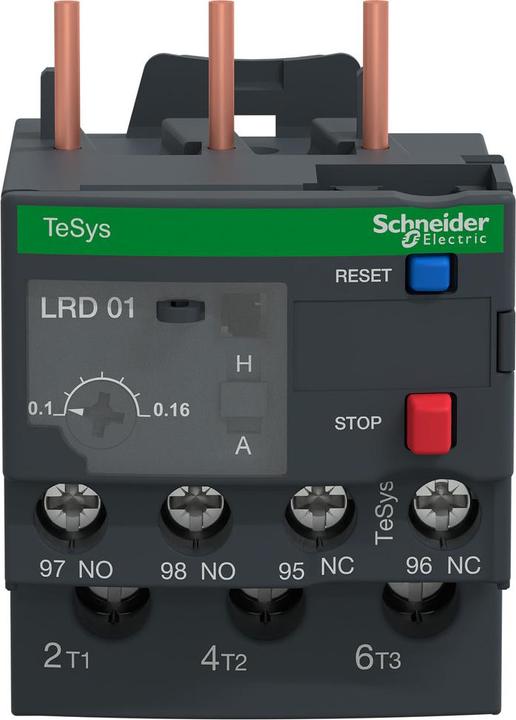

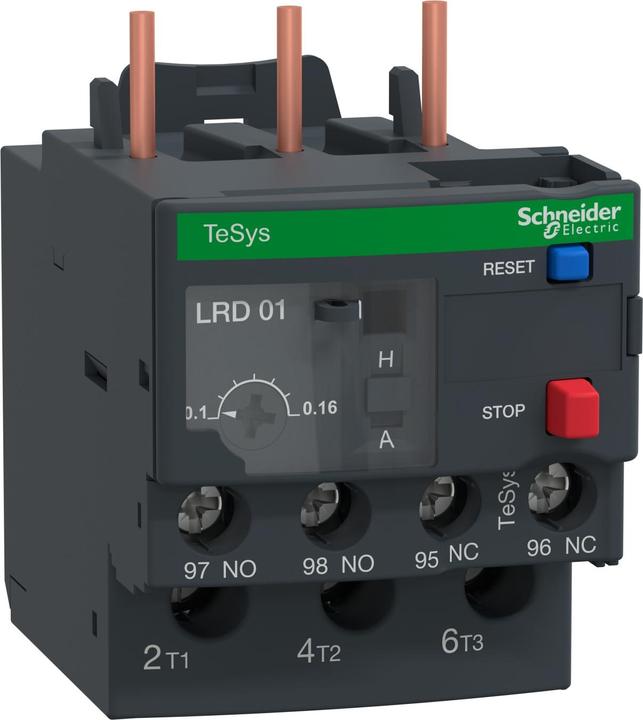

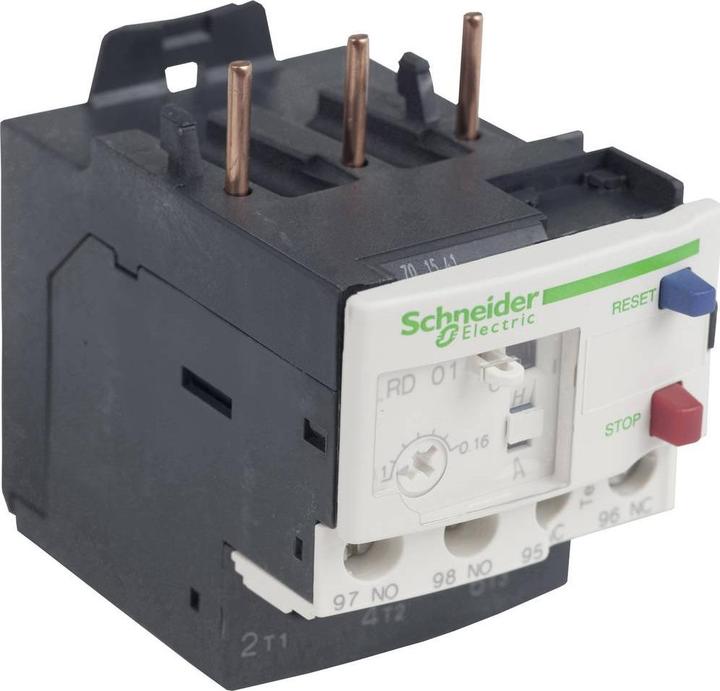

TeSys three-pole overtemperature protection relay. Series of TeSys thermal relays for motor protection. Compensated, with automatic or manual reset and trip indication. Equipped with a test function. Designed for mounting on LC1 type contactors from the TeSys series. No direct connection to older contactors for part numbers LRD01 to LRD35. Also suitable for pre-assembled kits and mounting brackets for DIN rail.
Electric current output | 0.16 A |
Number of poles | 3x |
Item number | 9717568 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | LRD01 |
Release date | 24.9.2018 |
Electric current output | 0.16 A |
Number of openers | 1x |
Number of closers | 1x |
Number of poles | 3x |
Smart home | Not compatible |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29.26 kg |
Climate contribution | CHF 0.70 |
Scope of delivery | 1 pc. |
Length | 123 mm |
Width | 45 mm |
