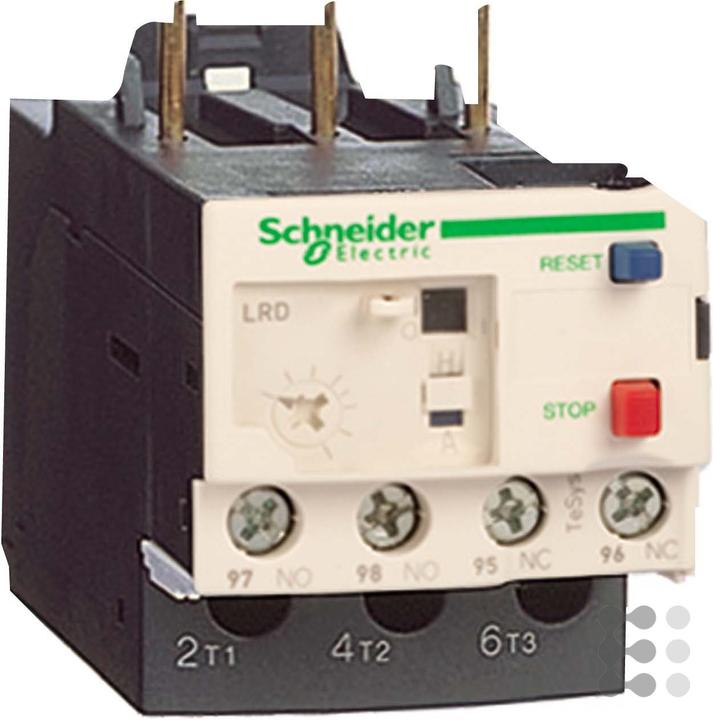

Schneider Electric Motor protection relay 1A

1Ratings
Delivered between Tue, 21.4. and Wed, 6.5.
7 pieces in stock at supplier
free shipping

Electric current output19

Product details

TeSys LR – 3-pole motor protection relay. Adjustable relay range 0.63-1 A, Max. size aM 2, Max. size BS88, Max. size gG 4, MTZ 01, suitable for D09-D38. Temperature compensated with differential protection. With manual or automatic reset. Tripping class 10 A. Screw terminals. Mounting directly under the contactor. On the front of the device, option for manual or automatic reset. Red button for triggering the function test. Blue button for the off function and manual reset. Yellow mechanical indicator appears when the relay is triggered. Auxiliary contact 1S+1Ö.

Key specifications

Output voltage
690 V
Electric current output
1 A
Number of poles
3x

General information

Item number
9726792
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LRD05
Release date
24.9.2018

Relay properties

Output voltage
690 V
Electric current output
1 A
Number of openers
1x
Number of closers
1x
Number of poles
3x

Origin

Country of origin
China, France, Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
15.84 kg
Climate contribution
CHF 0.38

Scope of delivery

Scope of delivery
1 pc

Product dimensions

Length
88 mm
Width
78 mm
Height
51 mm
Weight
124 g

Package dimensions

Length
9 cm
Width
7.70 cm
Height
5 cm
Weight
138 g
