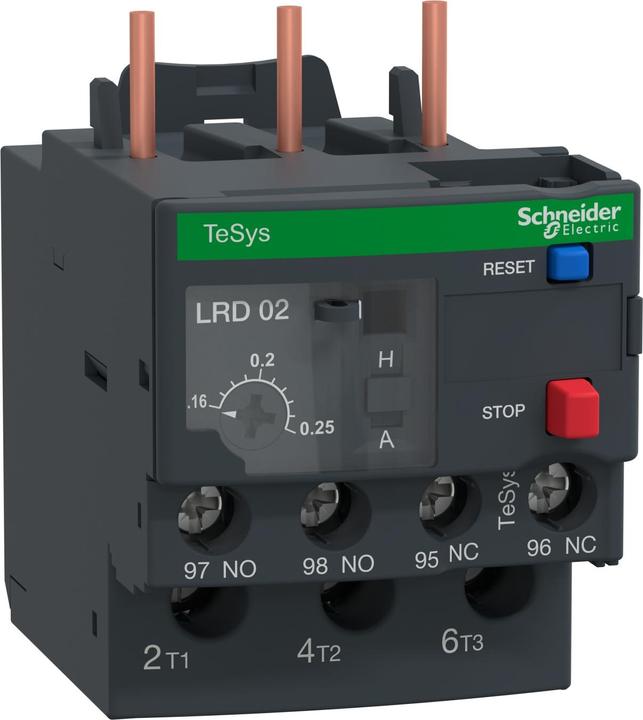

Schneider Electric Overload relay LRD02

Ratings
BrandMore from Schneider Electric
Need a last-minute gift?Discover our instantly available digital vouchers
Delivered between 2.2.2026 and 14.2.2026
free shipping

Electric current output7

Product details

FLC motor power: 0.16 to 0.25 A
Contact rated current: 250 mA
Contact configuration: 3P
Range: TeSys
Contact rated voltage: 690 V AC
Mounting type: Direct contactor
Series: LRD0
Connection type: Screw mounting
Reset type: Automatic, manual
Operating temperature min: -20°C

TeSys three pole over temperature protection relay. Series of TeSys thermal relays for motor protection. Compensated, with automatic or manual reset and trip indication. Equipped with test function. For mounting on contactors type LC1 from TeSys series. No direct connection to old contactors (insert panel) for part numbers LRD01 to LRD35. Also for pre-wiring kit and mounting bracket for DIN rail.

Key specifications

Output current type
AC/DC
Relay type
Overload relay
Electric current output
0.25 A
Output voltage
690 V
Number of poles
3x
Item number
9717576

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LRD02
Release date
24.9.2018

Relay properties

Relay type
Overload relay
Output voltage
690 V
Electric current output
0.25 A
Output current type
AC/DC
Switching function
Opener
Number of openers
1x
Number of closers
1x
Number of poles
3x
Manufacturer Type
LRD02

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
90 mm
Width
80 mm
Height
50 mm
Weight
124 g
