Best selling Electronics modules from Wago
On this page you’ll find a ranking of the best Electronics modules from Wago. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Wago Fieldbus coupler
Fieldbus Coupler CANopen D-Sub Extreme
This fieldbus coupler connects the WAGO I/O system as a slave to the CANopen fieldbus. Data is transmitted using PDOs and SDOs. The bus coupler detects all connected I/O terminals and creates a local process image from them. This can involve a mixed arrangement of analog (word-wise data exchange) and digital (byte-wise data exchange) terminals.
The local process image is divided into an input and output data area. Process data can be read via the CANopen bus and further processed in a controller. Process output data is transmitted over the CANopen bus.
The data from the analog terminals is mapped to the PDOs in the order of their position after the bus coupler. The bits from the digital terminals are combined into bytes and also mapped into PDOs. If the number of digital I/O exceeds 8 bits, the coupler automatically starts a new byte.
Entries in the object directory can be mapped to the 32 Rx PDOs and 32 Tx PDOs as needed. The entire input and output data area can be transmitted using SDOs. Placeholders for terminals can be set via software.
The device is suitable for use in harsh environmental conditions: extended temperature range, higher voltage resistance, and EMC stability, as well as increased vibration and shock resistance.

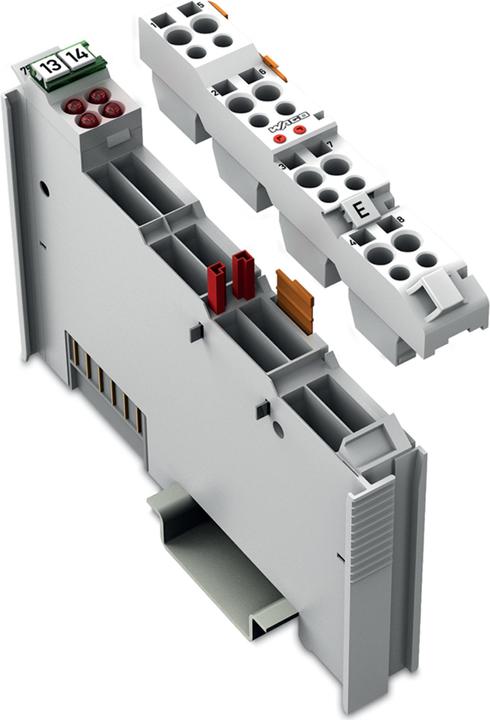

2. Wago 753-455
The Wago 753-455 electronic module is a highly advanced 4-channel analog input module specifically designed for processing standardized 4-20 mA signals. It provides galvanic isolation to the system level, ensuring safe signal transmission. With a resolution of 12 bits, the module enables precise measurements and is ideal for applications requiring reliable and accurate signal processing. The input channels are designed to share a common ground potential, facilitating integration into existing systems. Power is supplied via the internal system voltage, eliminating the need for additional external power sources. This module is an excellent choice for various industrial applications that require robust and efficient signal processing.
- Processes 4-20 mA signals with galvanic isolation
- 12-bit resolution for precise measurements
- Common ground potential for all input channels
- Utilizes internal system voltage for power supply.

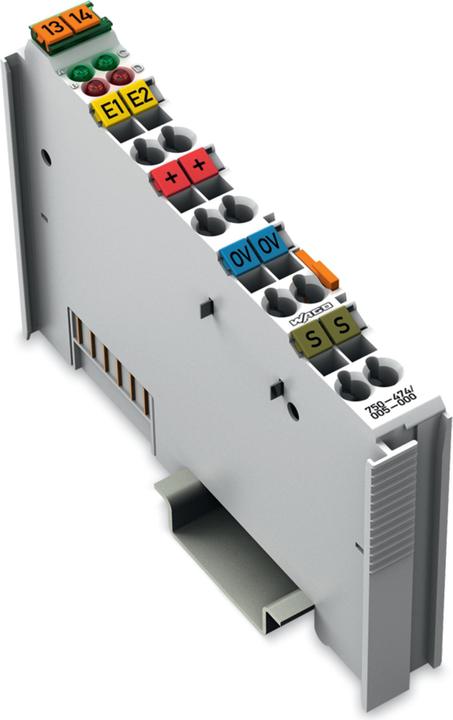

3. Wago 750-474/005-000
2-Channel Analog Input
4-20 mA
Single-Ended
16 Bit
60 Hz
The analog input module is designed to power the field-mounted transducers and to transmit analog measurement signals galvanically isolated to the bus system. The supply voltage of 24 V is fed through the power contacts for the field. The shield connection is directly routed to the mounting rail. The overload protection switches off the measurement input at a current of approximately 25 mA, putting it into a high-impedance state. This high-impedance state is automatically reset when returning to the normal measurement range. This module provides the power supply for 2-wire transducers that do not have their own power supply.

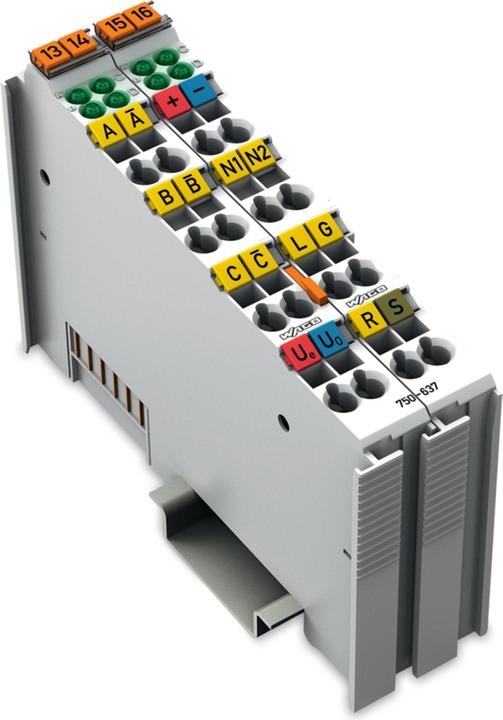

4. Wago 750-637
Incremental Encoder Interface; RS-422; 32 Bit
The bus terminal provides an interface for various incremental encoders with different connections.
A counter with a quadrature decoder and a latch for the zero pulse can be read and activated by the control system. The control system can set the counter. Depending on the operating mode, the counter value is transferred to the latch register and the counter is initialized on the positive edge at the input "C" or "Latch".
The speed (increments/ms) is automatically detected and can alternatively be transmitted to the control system instead of the latch value.
The "Gate" input allows for the counter to be locked. The "Ref" input can be used to activate the function of the zero mark "C".
Through the cam outputs (N1, N2), the bus terminal signals whether the counter value is within defined windows. The window areas can be individually adjusted.
The bus terminals require a supply voltage of DC 24 V, from which the power supply for the sensor (Ue, U0) is also derived.
The shield connection is directly routed to the mounting rail.

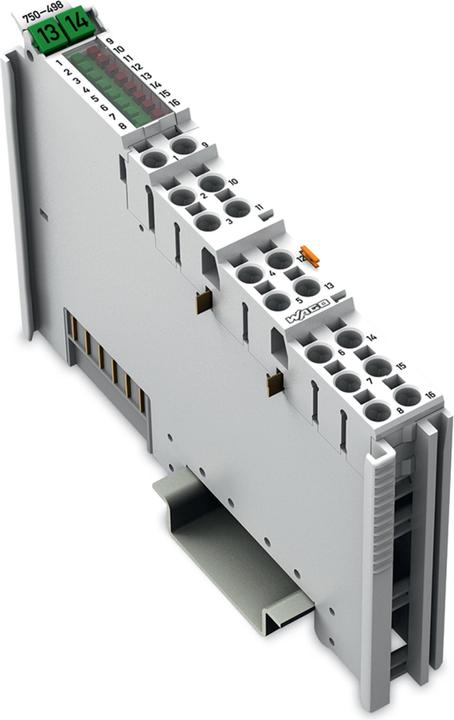

5. Wago 750-498 8-channel 750-498 Analogue input thermocouple light grey
The Wago 750-498 8-channel analog input module is a highly advanced electronic module specifically designed for the precise measurement of thermocouples and voltages in field applications. With the capability to connect up to eight thermocouples using a 2-wire technique, this module offers a flexible solution for various applications in automation technology. It allows for the conversion of voltage values into temperature values based on the measurements provided by the thermocouple and the cold junction temperature. The module is suitable for mounting on DIN rails and ensures galvanic isolation between the field level and the system level, enhancing the safety and reliability of measurements. With a robust design and an IP20 protection rating, the module is intended for use in industrial environments and offers a wide operating temperature range of -20 °C to 60 °C.
- Input type: Thermocouple with 8 channels
- Direct connection of thermocouples using 2-wire technique
- Galvanic isolation between field level and system level
- Adjustable conversion of voltage values into temperature values
- Suitable for PFC200 PLC and WAGO I/O System.
Electronics modules
CHF466.05
Wago 750-498 8-channel 750-498 Analogue input thermocouple light grey
Add-on

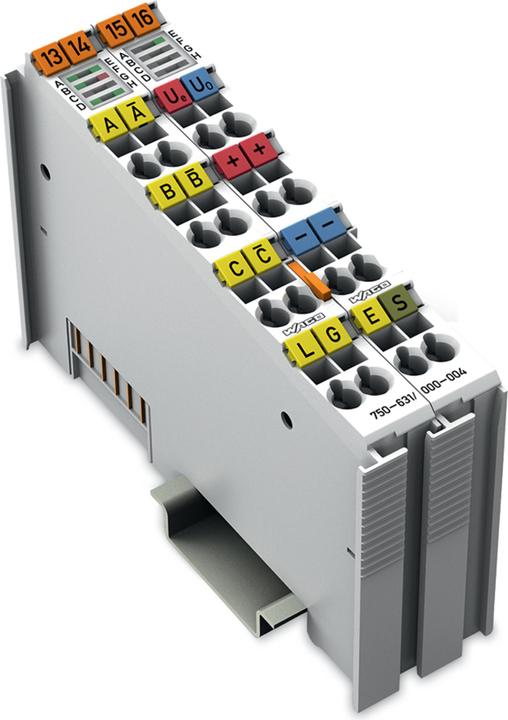

6. Wago Incremental encoder
Incremental Encoder Interface RS-422 16 Bit
The module provides an interface for connecting any incremental encoders. A 16-bit counter with quadrature decoder and a 16-bit latch for the zero pulse can be read, set, or activated. The counter status is quickly and reliably transmitted to the PC, PLC, and CNC via the installed fieldbus. The Gate input allows for the locking of the counter. The power supply for the encoder can be directly tapped at the terminals Ue/U0. The shield connection is directly routed to the mounting rail.
7. Wago Analogue I/O module DC Series 750 24V 750-478
The analog I/O module DC Series 750 24V 750-478 from Wago is a highly advanced electronic module specifically designed for processing analog input signals. With two channels for analog inputs, this module allows for the measurement of voltages in the range of 0 to 10 V. The signals are processed with a high resolution of 16 bits and provide galvanic isolation to the system level, enhancing the safety and reliability of data transmission. The internal system voltage is used for power supply, and the input channels share a common ground potential. The module is suitable for mounting on DIN rails and complies with various standards, making it a flexible solution for different applications in automation technology.
- Galvanically isolated signal transmission to the system level
- High resolution of 16 bits for precise measurements
- Suitable for voltages from 0 to 10 V
- DIN rail mounting for easy installation
- Complies with various standards such as CE and UL Listed.
8. Wago Analogue I/O module DC Series 750 24V 750-469
2-Channel Analog Input Thermocouple K Diagnosis The analog input module allows for the direct connection of two thermocouples. The operation of grounded sensors is possible due to the internal galvanic isolation. The module handles linearization across the entire temperature range. To compensate for the error voltage at the terminal in the range of 0 to 55 °C, cold junction compensation is performed using comparative measurement. A broken wire is indicated by a red error LED. The green LED indicates operational readiness and trouble-free communication with the bus coupler. The shield connection is directly routed to the mounting rail.
9. Wago Analog output 4-channel module 0-10V
Manufacturer series: I/O-System 750
Number of outputs: 4 (channel)
Output type: Analog
For use with: 750 series
Voltage category: 0 to 10 V
Module type: Output module
Length: 100 mm
Width: 12 mm
Depth: 64 mm
Dimensions: 100 x 12 x 64 mm
This 4-channel analog output module generates a standardized signal of ±10 V or 0-10 V. The output signal is electrically isolated and transmitted with a resolution of 12 bits. The system voltage supply is used for the power supply of the module, and the output channels of the module have a common potential.
10. Wago 4-channel analogue output terminal 753-559 via system voltage / DC Content: 1 unit (753-559)
The 4-channel analog output terminal 753-559 from Wago is a highly advanced electronic module specifically designed to generate standardized output signals of 0-10 V. This module provides galvanic isolation to the system level and ensures precise signal transmission with a resolution of 12 bits. The power supply is provided via the internal system voltage, facilitating integration into existing systems. The output channels of the module share a common ground potential, simplifying handling and installation. It is important to note that the required connectors and coding elements of series 753 are not included in the delivery, which should be considered during installation planning. This module is ideal for applications that require reliable and precise analog signal transmission.
- Galvanically isolated output signals to the system level
- 12-bit resolution for precise signal transmission
- Utilization of internal system voltage for power supply
- Common ground potential for all output channels.
Electronics modules
CHF281.95
Wago 4-channel analogue output terminal 753-559 via system voltage / DC Content: 1 unit (753-559)
