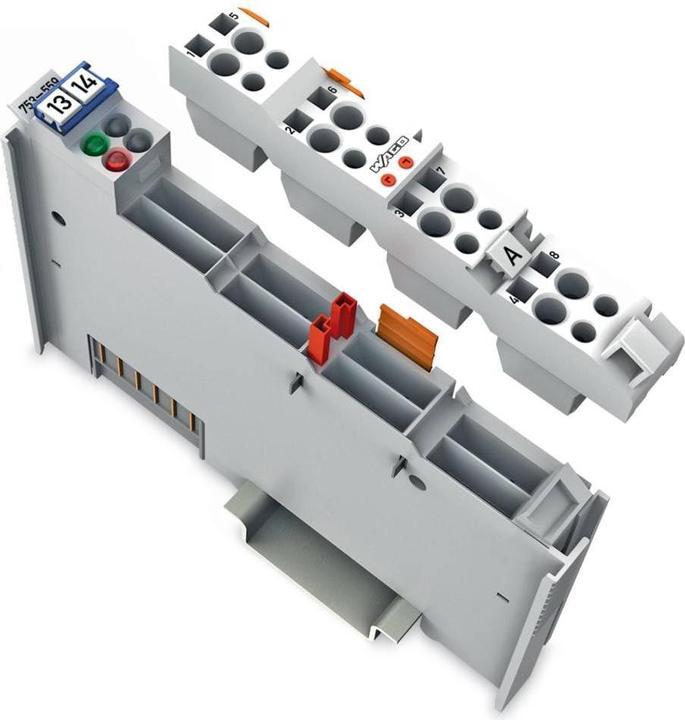

Wago 4-channel analogue output terminal 753-559 via system voltage / DC Content: 1 unit (753-559)

Power component
Ratings
BrandMore from Wago
Delivered between Wed, 8.4. and Thu, 9.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Product details

The 4-channel analog output terminal 753-559 from Wago is a highly advanced electronic module specifically designed to generate standardized output signals of 0-10 V. This module provides galvanic isolation to the system level and ensures precise signal transmission with a resolution of 12 bits. The power supply is provided via the internal system voltage, facilitating integration into existing systems. The output channels of the module share a common ground potential, simplifying handling and installation. It is important to note that the required connectors and coding elements of series 753 are not included in the delivery, which should be considered during installation planning. This module is ideal for applications that require reliable and precise analog signal transmission.

  • Galvanically isolated output signals to the system level
  • 12-bit resolution for precise signal transmission
  • Utilization of internal system voltage for power supply
  • Common ground potential for all output channels.

Key specifications

Compatible hardware
Various
Scope of delivery
1 pc.

General information

Item number
33376430
Manufacturer
Wago
Category
Electronics modules
Manufacturer no.
753-559
Release date
17.5.2023

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Power component

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.82 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1 pc.
Additionally required (not included)
753 series plugs and coding elements

Product dimensions

Length
69.80 mm
Width
12 mm
Height
64 mm
Weight
47.50 g
