Wago 750-474/005-000

2-Channel Analog Input
4-20 mA
Single-Ended
16 Bit
60 Hz

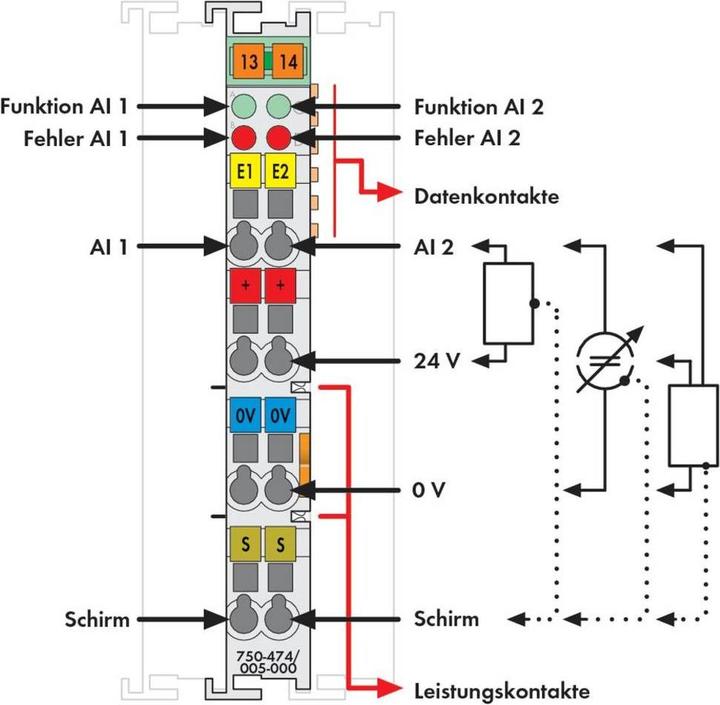

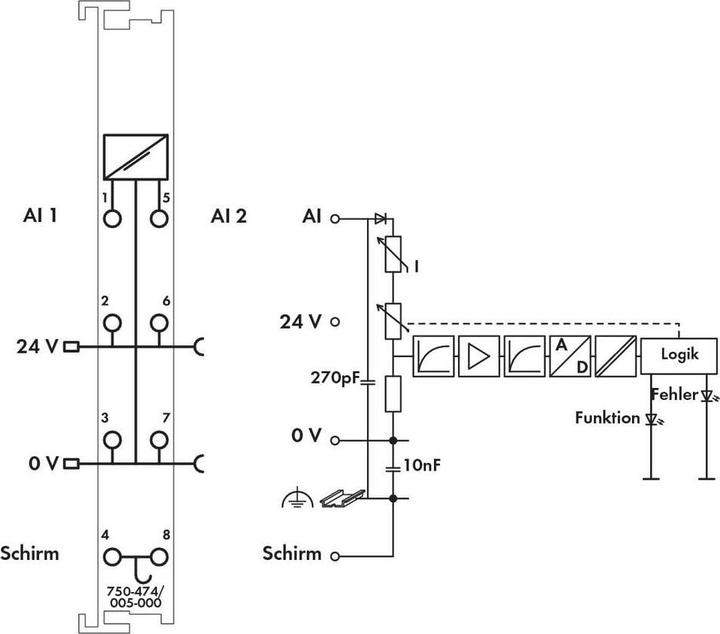

The analog input module is designed to power the field-mounted transducers and to transmit analog measurement signals galvanically isolated to the bus system. The supply voltage of 24 V is fed through the power contacts for the field. The shield connection is directly routed to the mounting rail. The overload protection switches off the measurement input at a current of approximately 25 mA, putting it into a high-impedance state. This high-impedance state is automatically reset when returning to the normal measurement range. This module provides the power supply for 2-wire transducers that do not have their own power supply.
