Best selling Relays from Eltako
On this page you'll find a ranking of the best Eltako products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eltako FR12-230V
1 non-potential-free switch 16A/250V AC. 230V LED lamps up to 200W, incandescent lamps 2300W. Self-learning. Standby loss only 0.8 watts. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high switching capacity of special relays. The field disconnector interrupts the power supply after the shutdown of downstream consumers, thereby preventing disturbing electromagnetic fields. Small consumers with a current draw of up to 200mA are allowed, which do not prevent the field disconnection after larger consumers are switched off. The threshold does not need to be set manually but is learned automatically by the FR12 using a patented method. Consumers with a current draw of more than 200mA are always defined as consumers that should trigger the connection of the mains voltage. As long as no larger consumer is switched on, the monitored circuit remains disconnected from the mains in a single-pole manner. Neutral and protective conductors are not switched to prevent an antenna effect. A low ripple adjustable DC voltage is present for monitoring. Therefore, bridging the working contact is not permitted and will lead to the destruction of the device. When a consumer is switched on, the field disconnector reconnects the monitored phase with a delay of about 1 second, and the LED lights up red.
2. Eltako Multifunktions-Zeitrelais
Analogue adjustable multifunction time relay with 18 functions. Stand-by loss only 0.02 - 0.6 watts. Simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional standby consumption of only 0.1 watts. Universal control voltage 8..230V UC. Supply voltage as the control voltage. Times between 0.1 seconds and 40 hours can be set. Thanks to the use of a bistable relay, there is no coil power loss or heating even when switched on. After installation, wait for the short automatic synchronisation before connecting the switched load to the mains. Two different function levels can be selected depending on whether the power supply is connected to terminals B1-A2 or B2-A2.
3. Eltako ER12-001-UC
Wechsler potential-free 16A 250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W. No standby loss. Rail-mounted device for installation on DIN-EN60715 TH35 mounting rails. Division unit 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage 8..230V UC. Low switching noise. Control indication with LED. Integrated freewheeling suppression diode A1=, A2= -. Safe isolation according to VDE 0106, part 101, therefore also usable as a coupling relay. By using a bistable relay, there is no coil loss and no heating even when switched on. The relay contact can be open or closed during commissioning and will synchronize on the first actuation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. For this purpose, only the relays ESR12DDX-UC, ESR12NP-230VUC, or ESR61NP-230VUC should be used. The electronics have no independent power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back. ER12-001-UC.
4. Eltako Time relay Current relay. 1 changeover contact potential free 16A/250V AC
Rail-mounted device for installation on a mounting rail (1 TE). Simply connect the neutral conductor to the terminal (N) and the live conductor to 1 (L). This results in an additional standby consumption of only 0.1 watts. If the contact is used to control switching devices that do not switch at zero crossing, (N) should not be connected, as the additional closing delay would otherwise have the opposite effect. An internal ring core current transformer compares the alternating current flowing through a load V1 from 0.1 A to a maximum of 32 A with the set value, and if exceeded, a relay disconnects a load V2 connected to terminal 2 within 0.5 seconds or switches on a load V3 connected to terminal 3. Setting accuracy is ±5%. The relay always switches on at 25 A. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. The current base A is set using the lower locking rotary switch A.
5. Eltako ER12-002-UC
6. Eltako Switching relay
Eltako switching relay for series installation R12-100-230V. Manufacturer: Eltako. Designation: Switching relay for series installation 1S 16A. Type: R12-100-230V. Function: other. Mounting type: DIN rail. Width in pitch units: 1. Installation depth: 55 mm. Number of contacts as normally open: 1. Control voltage: 230 V. Control voltage type: AC. Control voltage frequency: 50 Hz. Rated current: 16 A. Supply voltage: 230 V. Supply voltage type: AC. Max. incandescent lamp load: 2300 W. Max. fluorescent lamp load: 2300 VA. Max. fluorescent lamp load (duo circuit): 2300 VA. Max. fluorescent lamp load (parallel compensated): 500 VA. Max. switching current (cos phi 0.6): 10 A. Eltako switching relay for series installation R12-100-230V: further details 1-pole 16A/250V AC. Series installation devices for mounting on DIN-EN 60715 TH35 rail with manual operation and switching position indication. 1 pitch unit = 18 mm wide, 55 mm deep. Duty cycle 100%. Control power requirement 1.9 W. Contacts: 1 normally open. Contact gap: 3 mm. Test voltage contact/contact: 2000 V and test voltage control connections/contact: 4000 V. The compatible electronic switching relays ER12DX-UC, ER12-200-UC, and ER12-110-UC can also be used. The universal control voltage UC covers the voltage range of 12-230 V AC 50-60 Hz and 12-230 V DC. EAN: 4010312200445.
7. Eltako Coupling relay KRW12DX-UC
1 potential-free switch 16A/250V AC with tungsten pre-contact. The pre-contact closes before the main contact, thereby handling an inrush current of LED lamps that occurs over a few milliseconds. Max. inrush current 500A/2ms. 230V LED lamps up to 600W, incandescent lamps 3300W. No standby loss. Rail-mounted device for installation on DIN-EN 60715 TH35 mounting rails. 1 modular unit = 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With the patented Eltako duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50 Hz, thus drastically reducing wear. Simply connect the neutral conductor to terminal (N) and live to terminal 1(L). This results in a standby loss of only 0.1 watts. If the contact is used to control switching devices that do not switch at zero crossing, (N) should not be connected, as the additional closing delay would have the opposite effect. Universal control voltage 12..230V UC. Low switching noise. Control indication with LED. By using a bistable relay, there is no coil loss and no heating even in the switched-on state. The relay contact can be open or closed at startup and synchronizes on the first operation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. Only use the relays ESR12DDX-UC, ESR12NP-230V+UC, or ESR61NP-230V+UC for this purpose. The electronics have no own power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back.
8. Eltako Stromstossschalter
Eltako pulse switch f-series S12-100-230V. Manufacturer: Eltako. Designation: Impulse switch f-series. Type: S12-100-230V. Function: Other. Mounting type: DIN rail. Width in pitch units: 1. installation depth: 55 mm. Number of contacts as normally open: 1. Control voltage: 230 V. Control voltage type: AC. Control voltage frequency: 50 Hz. Rated switching current: 16 A. Max. Load for incandescent lamps: 2300 W. Max. Load for fluorescent lamps: 2300 VA. Max. Load of fluorescent lamps (duo circuit): 2300 VA. Max. Load for fluorescent lamps (parallel compensated): 2300 W. Load for fluorescent lamps (parallel compensated): 500 VA. Max. Switching current (cos phi: 0 A). Switching current (cos phi: 0.6): 10 A. Suitable for manual operation: Yes. Electromechanical pulse switch with manual operation and switching position indicator. Duty cycle 100 %. Control power requirement: 5-6 W. Contact spacing: 3 mm. Distance control terminals/contact: > 6 mm.

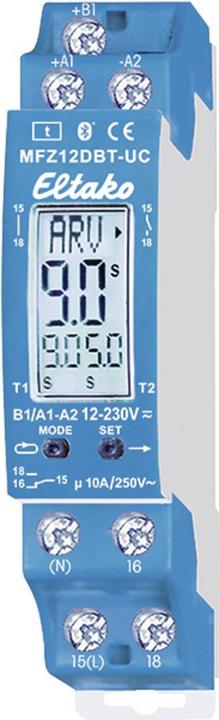

9. Eltako Relais temporisé multifonction réglable numériquement avec écran et Bluetooth, 1 inverseur 10A
Digitally adjustable multifunction time relay with display, Bluetooth, Eltako Connect app, and 18 functions. 1 potential-free changeover contact rated at 10 A/250 V AC and DX, 230 V LED lamps up to 200 W, incandescent lamps up to 2000 W. With display backlighting. Standby loss is only 0.1-0.3 watts. Rail-mounted device for installation on DIN-EN 60715 TH35.1 mounting rails. Division unit = 18 mm wide, 58 mm deep. With the patented Eltako duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230 V AC at 50 Hz, significantly reducing wear. Simply connect the neutral conductor to the terminal (N) and L to 15 (L). This results in an additional standby loss of only 0.1 watt. Universal control voltage 12..230 V UC.
Relays
CHF78.95
Eltako Relais temporisé multifonction réglable numériquement avec écran et Bluetooth, 1 inverseur 10A
10. Eltako Current limiting relay capacitive microfarad. NO contact
Current limiting relay with 1 normally open contact rated for 16A/250VAC. No standby loss. One division unit. Maximum capacitive load is 240 microfarads after rectifier (e.g., energy saving lamps and electronic ballasts) or 120 microfarads directly on mains (e.g., parallel compensated fluorescent lamps). The limiting resistor is 12 ohms, with a limiting duration of approximately 15ms. The inrush current of energy-saving lamps, fluorescent lamps, and compact fluorescent lamps is limited to 20A by briefly connecting high-load resistors (12 ohms) for about 15ms. The current limiting relay is connected downstream of the relay contact of a switching device to be protected. Continuous load is a maximum of 1200W, with a maximum switching frequency of 600 per hour. The specification of the maximum capacitive load directly on the mains must be observed, particularly for parallel-compensated fluorescent lamps or conventional ballasts. In this case, the capacitor per lamp in parallel with the mains determines the correct dimensioning.
