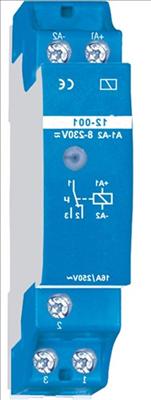

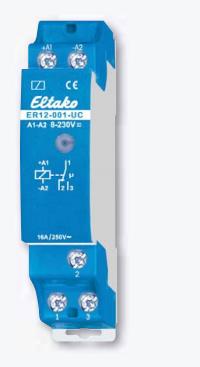

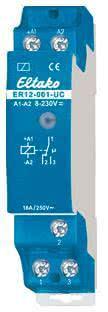

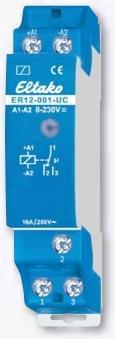

Wechsler potential-free 16A 250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W. No standby loss. Rail-mounted device for installation on DIN-EN60715 TH35 mounting rails. Division unit 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage 8..230V UC. Low switching noise. Control indication with LED. Integrated freewheeling suppression diode A1=, A2= -. Safe isolation according to VDE 0106, part 101, therefore also usable as a coupling relay. By using a bistable relay, there is no coil loss and no heating even when switched on. The relay contact can be open or closed during commissioning and will synchronize on the first actuation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. For this purpose, only the relays ESR12DDX-UC, ESR12NP-230VUC, or ESR61NP-230VUC should be used. The electronics have no independent power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back. ER12-001-UC.
input voltage | 230 V |
Scope of delivery | 250V 22001601, Switching and control relay UC. 1 changeover contact, potential-free 16A |
Output voltage | 250 V |
Output current type | AC/DC |
Electric current output | 16 A |
Relay type | Installation relay |
Item number | 14528253 |
Manufacturer | Eltako |
Category | Relays |
Manufacturer no. | 22001601 |
Release date | 29.12.2020 |
Sales rank in Category Relays | 7 of 23014 |
External links |
Relay type | Installation relay |
input voltage | 230 V |
Output voltage | 250 V |
Electric current output | 16 A |
Output current type | AC/DC |
Switching function | Normally open |
Number of openers | 1 x |
Number of closers | 1 x |
Number of poles | 1 x |
Max. Switching capacity | 2 kW |
Manufacturer Type | Er12-001-uc |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 250V 22001601, Switching and control relay UC. 1 changeover contact, potential-free 16A |
Length | 240 mm |
Width | 1000 mm |
Height | 80 mm |
Weight | 80 g |
Length | 9 cm |
Width | 7 cm |
Height | 2.30 cm |
Weight | 70 g |
