Eltako Stromstossschalter

Minimum order 2
1Ratings
BrandMore from Eltako
Delivered Tue, 7.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

input voltage3

Number of poles2

Product details

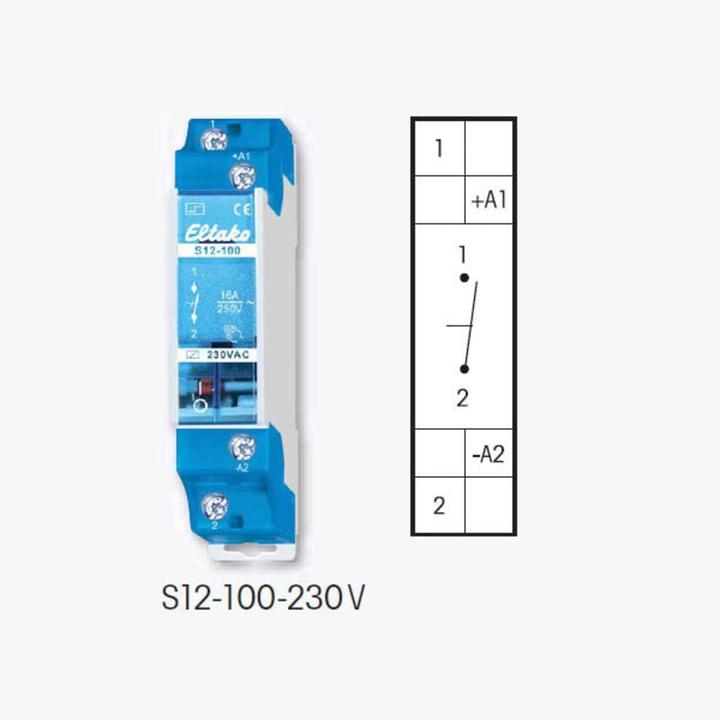

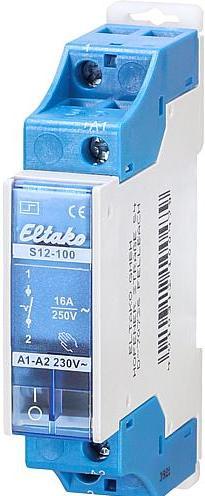

Eltako pulse switch f-series S12-100-230V. Manufacturer: Eltako. Designation: Impulse switch f-series. Type: S12-100-230V. Function: Other. Mounting type: DIN rail. Width in pitch units: 1. installation depth: 55 mm. Number of contacts as normally open: 1. Control voltage: 230 V. Control voltage type: AC. Control voltage frequency: 50 Hz. Rated switching current: 16 A. Max. Load for incandescent lamps: 2300 W. Max. Load for fluorescent lamps: 2300 VA. Max. Load of fluorescent lamps (duo circuit): 2300 VA. Max. Load for fluorescent lamps (parallel compensated): 2300 W. Load for fluorescent lamps (parallel compensated): 500 VA. Max. Switching current (cos phi: 0 A). Switching current (cos phi: 0.6): 10 A. Suitable for manual operation: Yes. Electromechanical pulse switch with manual operation and switching position indicator. Duty cycle 100 %. Control power requirement: 5-6 W. Contact spacing: 3 mm. Distance control terminals/contact: > 6 mm.

Key specifications

Relay type
Step switch
input voltage
230 V
Output voltage
230 V
Electric current output
16 A
Output current type
AC
Number of poles
1x

General information

Item number
20348268
Manufacturer
Eltako
Category
Relays
Manufacturer no.
21100030
Release date
30.3.2022
Minimum order
2

Relay properties

Relay type
Step switch
input voltage
230 V
Output voltage
230 V
Electric current output
16 A
Output current type
AC
Resistor
1600 Ω
Switching function
Normally open
Number of closers
1x
Number of poles
1x
Max. Switching capacity
2.30 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
10.9 kg
Climate contribution
CHF 0.26

Scope of delivery

Scope of delivery
Current impulse switch

Product dimensions

Length
18 mm
Height
7 mm
Weight
100 g

Package dimensions

Length
8.50 cm
Width
5.50 cm
Height
1.50 cm
Weight
95 g
