Best selling Light switches + Plug sockets from Eltako

On this page you’ll find a ranking of the best Light switches + Plug sockets from Eltako. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Eltako FT55-wg Wireless push-button

Radio button, 80 x 80 mm externally, frame inner dimension 55 x 55 mm, 15 mm high. Generates energy for radio telegrams even when pressed, therefore no connection cable and no standby loss. With rocker and double rocker. Smart Home sensor. The package includes frame R, a rocker W55, a double rocker DW55 (all in the same color), a mounting frame BRF, the holding plate HP, the radio module, and an adhesive film. A radio button with a rocker can send two evaluable signals, while a radio button with a double rocker can send four. The holding plate can be screwed onto a flat surface or adhered to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw fastening. The double rocker is factory-locked onto the radio module. If it needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then snap the large rocker into place so that its markings 0 and I on the back align with the radio module. When adhering, first attach the holding plate set with frame and mounting frame - with the locking mechanisms at the top and bottom - to the surface. Then snap the radio module set with rocker - marking 0 on the back always at the top - into place.

2. Eltako Blister Pack Switching BPS55-L62

Blister pack with wireless switch F2T55E-wg and light actuator FL62-230V. Smart home sensor and smart home actuator. F2T55E-wg: Wireless 2-channel switch in E-design 55, 80x80 mm exterior, frame inner dimensions 55x55 mm, 15 mm high. Generates energy for wireless telegrams even when the button is pressed, hence no connection cable and no standby loss. With rocker. The wireless switch with one rocker can send two evaluable signals: pressing the top rocker and pressing the bottom rocker. The mounting plate can be screwed onto a flat surface or adhered to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw fastening. FL62-230V: Wireless light actuator 10A/250V AC. Pulse switch with 1 normally open contact, potential-free. Compatible with 230V LED lamps and energy-saving lamps up to 200W, 230V incandescent and halogen lamps up to 1000W. For flush mounting. Dimensions 49x51 mm, depth 20 mm. Standby loss is only 0.4 watts. The connection terminals are plug terminals for conductor cross-sections from 0.2 mm² to 2.5 mm². With the convenient tap technology, up to 32 wireless universal switches, wireless directional switches, wireless central control switches, and motion sensors can be learned. Bidirectional wireless can be activated. Distance between control connections/contact is 6 mm. Supply, switching, and control voltage locally 230V. In the event of a power failure, the switching position is retained. When power is restored, it is defined as switched off. After installation, wait for the automatic short synchronization before connecting the switched load to the power supply. In addition to the wireless control input via an internal antenna, this wireless actuator can also be locally controlled with a possibly previously installed conventional 230V control switch. A glow lamp current is not permitted.

3. Eltako Blisterpack Dimmen BPD55-D62

Blister pack dimming with wireless switch F2T55E-wg and wireless universal dimmer FD62NPN-230V. Smart Home sensor and Smart Home actuator. F2T55E-wg: Wireless 2-channel switch in E-design 55, 80x80mm exterior dimensions, frame interior dimensions 55x55mm, 15mm high. Generates energy for wireless telegrams even when the button is pressed, thus no connection wire and no standby loss. With rocker switch. Smart Home sensor. A wireless switch with a rocker can send two evaluable signals: press the top of the rocker and press the bottom of the rocker. The mounting plate can be screwed onto a flat surface or attached to the wall, glass, or furniture using the included adhesive film. Above a 55mm switch box, the existing sleeves in the box are used for screw fastening. FD62NPN-230V: Wireless universal dimmer. With power MOSFET. Dimmable 230V LED lamps in phase-cut mode up to 300W, or in phase-angle mode up to 100W, depending on ventilation conditions. 230V incandescent and halogen lamps up to 300W, depending on ventilation conditions. No inductive (wound) transformers. With children's room and snooze function. No minimum load. Standby loss only 0.5 watts. For flush mounting. 49x51mm, 20mm deep. The connection terminals are plug terminals for conductor cross-sections from 0.2mm² to 2.5mm². With the convenient tap technology, up to 32 wireless universal switches, wireless directional switches, wireless central control switches, and motion sensors can be learned. Bidirectional wireless activation possible. Switching at zero crossing with soft on and soft off for lamp protection. Supply, switching, and control voltage locally 230V. The set brightness level is stored when switched off (memory). In the event of a power failure, it is defined to switch off. Automatic electronic overload protection and over-temperature shutdown.

4. Eltako LED Dimmer DALI 16 A tuneable white

DALI LED dimmer for independent control of brightness and color temperature. Designed for ceiling installation. Standby loss is only 0.12 watts. Suitable for driving constant voltage LED modules (CV) with operating voltages from 12V to 48V.

Operating mode DT8: Control of brightness and color temperature via a DALI address (Device Type 8, Colour Type Tc).

Operating mode Balance&Dim: Control via 2 DALI addresses, one for adjusting brightness and one for adjusting channel distribution (e.g., color temperature).

Operating mode Dim2Warm: one DALI address for dimming while simultaneously changing the color temperature.

SwitchDim2: Operation via 2 button inputs allows control of brightness and color temperature without DALI. Dimming range 0.1%-100%. Switchable PWM frequency (122Hz/244Hz/488Hz/976Hz).

Supply voltage depending on type from 12V to 28V DC or 12V to 48V DC (corresponding to the operating voltage of the LED modules). Connection current 16A. The maximum connection current can be distributed across the channels as needed. High efficiency.

Configuration via PC software DALI-Cockpit and DALI-USB interface.

Operating modes: The device features several operating modes: DT8 (default setting): In this mode, a DALI address (Device Type 8, Colour Type Tc) is used to control brightness and color temperature. Operation can alternatively be done via two button inputs (SwitchDim2): SwD1: Brightness. Short press: On/Off. Long press: Dimming. SwD2: Color temperature.

Balance&Dim: Control is done via 2 DALI addresses (or SwitchDim2), with one address used for dimming and the other for channel distribution (i.e., for example, Tunable White or direct/indirect lighting distribution). The Balance&Dim mode allows adjustment of color temperature without affecting brightness and vice versa. Adjustments are made using DALI standard commands such as Dim Up/Down and can thus be used with all common controls and gateways.

5. Eltako Wireless pushbutton

Eltako wireless switch, 80x80mm exterior, frame inner dimensions 55x55mm, 15mm high. Generates energy for radio telegrams even when the button is pressed, thus no connection cable and no standby loss. With a single rocker and double rocker. Smart Home sensor. The package includes the frame R, a rocker W55, a double rocker DW55 (all in the same color), a mounting frame BRF, the mounting plate HP, the radio module, and an adhesive film. Wireless switches with a single rocker can send two evaluable signals, while those with a double rocker can send four. The mounting plate can be screwed onto a flat surface or glued to the wall, glass, or furniture using the included adhesive film. Above a 55mm switch box, the existing sleeves in the box are used for screw fastening. The double rocker is factory-installed on the radio module. If it needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then, snap the large rocker in place so that its markings 0 and I on the back align with the radio module. When gluing, first attach the mounting plate set with frame and mounting frame - with the latches at the top and bottom - then attach the radio module set with rocker.

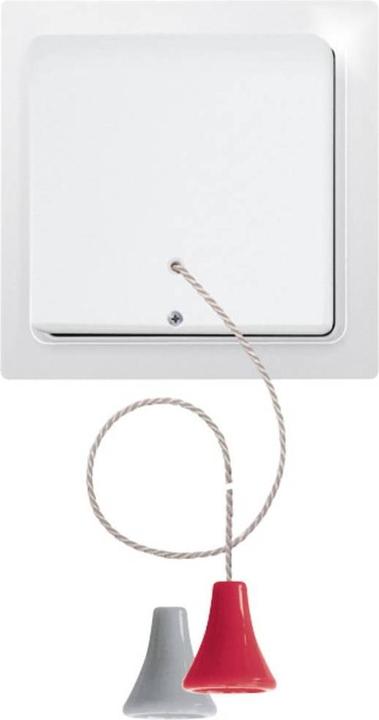

6. Eltako FZS65-wg Radio pull-cord switch surface-mounted Range max. (in free field) 30m

Radio pull switch for surface mounting 84x84x24 mm or for installation in the E-Design65 switch system. With silver and red handle. It generates the energy for radio telegrams, hence no connection cable and no standby loss. Smart Home sensor. When pulling and releasing the handle, a radio telegram is sent in the Eltako building radio system. The delivery includes the fully assembled pull switch, a silver handle, a red handle, and two screws with dowels.

Installation by screwing: First, disassemble the fully assembled pull switch. To do this, remove the screw, unhook the cover, and take out the intermediate frame including the rocker and transmission module by loosening the retaining brackets at the top and bottom. Attach the mounting plate by screwing it in. Snap the frame with the upper hanging cutouts onto the intermediate frame including the transmission module and rocker, with the rear marking 0 facing up. Hang the cover with the cord through the upper hanging cutouts of the frame and secure it at the bottom with the screw in the mounting plate. Cut the cord to the desired length, thread it through the red or silver handle, and secure it with a double knot.

Position-independent: The pull switch works in any position, even when mounted on the ceiling. Compatible actuators: The radio pull switch sends the same radio telegrams when activated as a radio push button and can therefore be learned into actuators and the GFVS software just like it. If it is learned as an emergency call switch into an actuator as central, an emergency call can only be acknowledged via another learned push button with central acknowledgment. The radio module contained in the radio pull switch can be encrypted into all encryptable actuators of series 61, 62, and 71 as well as into the FAM14. For this purpose, the radio push button encryption rocker FTVW is required. Encryptable actuators bear the key pictogram.

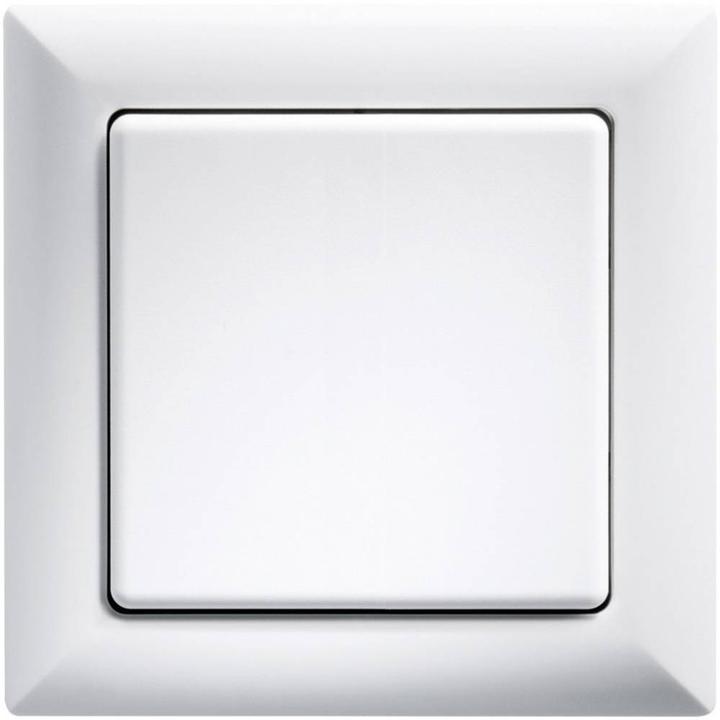

7. Eltako FT55-rw Wireless pushbutton pure white with rocker and double rocker

FT55 wireless switch 55x55 mm, battery and wire-free. Outer dimensions 80x80 mm, inner frame dimensions 55x55 mm, height 15 mm. Generates energy for radio telegrams even when the button is pressed, thus no connection wire and no standby loss. The package includes the frame R, a single rocker W55, a double rocker DW55 (all in the same color), a mounting frame BRF, a holding plate HP, the radio module, and an adhesive film.

The switch with a single rocker can send two evaluable signals: pressing the rocker up and pressing the rocker down. The switch with a double rocker can send four evaluable signals: pressing two rockers up and down. The holding plate can be screwed onto a flat surface or attached to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw fastening. The switch lighting FTB can then also be latched onto the holding plate from the back. The double rocker is factory-latched onto the radio module. If it needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then, latch the large rocker so that its markings 0 and I on the back align with the radio module.

With remote control: no, wall-mounted: yes, window-mounted: no, with remote control: no, signal transmission: radio, number of channels: 4, mounting type: surface-mounted, material: plastic, material quality: thermoplastic, halogen-free: yes, surface protection: untreated, surface finish: matte, color: white, transparent: no, range: 30 m, suitable for switches: yes, suitable for dimmers: yes, suitable for blind switches: yes, suitable for display elements: yes, suitable for motion detectors: no, compatible with Apple HomeKit: no, compatible with Google Assistant: no, compatible with Amazon Alexa: no, IFTTT support available: no.

8. Eltako F1T55E-wg

Eltako Wireless 1-Channel Switch F1T55E-wg

Manufacturer: Eltako
Description: Wireless 1-Channel Switch pure white glossy
Type: F1T55E-wg
With remote control: no
Wall switch: yes
Window switch: no
With remote control: no
Signal transmission: Wireless
Number of channels: 1
Mounting type: Surface-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9016
Transparent: no
Range: 30 m
Suitable for switches: yes
Suitable for dimmers: yes
Suitable for blinds switches: yes
Suitable for display elements: yes
Suitable for motion detectors: no
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Additional details: Wireless 1-Channel Switch in E-design, 80x80 mm exterior, frame inner dimension 55x55 mm, 15 mm high. Generates energy for wireless telegrams even when the button is pressed, thus no connection cable and no standby loss. The wireless switch with a rocker can send a signal that can be evaluated: press the rocker down in the marked area. The mounting plate can be screwed onto a flat surface or attached to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw fastening.
EAN: 4010312321096.

9. Eltako FT55-al Wireless pushbutton aluminum painted with rocker and double rocker

Radio button, 80x80mm outside, frame inner dimension 55x55mm, 15mm high. Generates energy for radio telegrams even when the button is pressed, therefore no connection cable and no standby loss. With single rocker and double rocker. Smart Home sensor. The delivery includes the frame R, a rocker W55, a double rocker DW55 (all in the same color), a mounting frame BRF, the mounting plate HP, the radio module, and an adhesive film. A radio button with a single rocker can send two evaluable signals, while a radio button with a double rocker can send four. The mounting plate can be screwed onto a flat surface or glued to the wall, glass, or furniture using the included adhesive film. Above a 55mm switch box, the existing sleeves in the box are used for screw fastening. The double rocker is factory-mounted on the radio module. If it needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then snap the large rocker into place so that its markings 0 and I on the back align with the radio module. When gluing, first attach the mounting plate set with the frame and mounting frame - with the latches at the top and bottom - to the surface. Then snap the radio module set with the rocker - marking 0 on the back always facing up - into place.

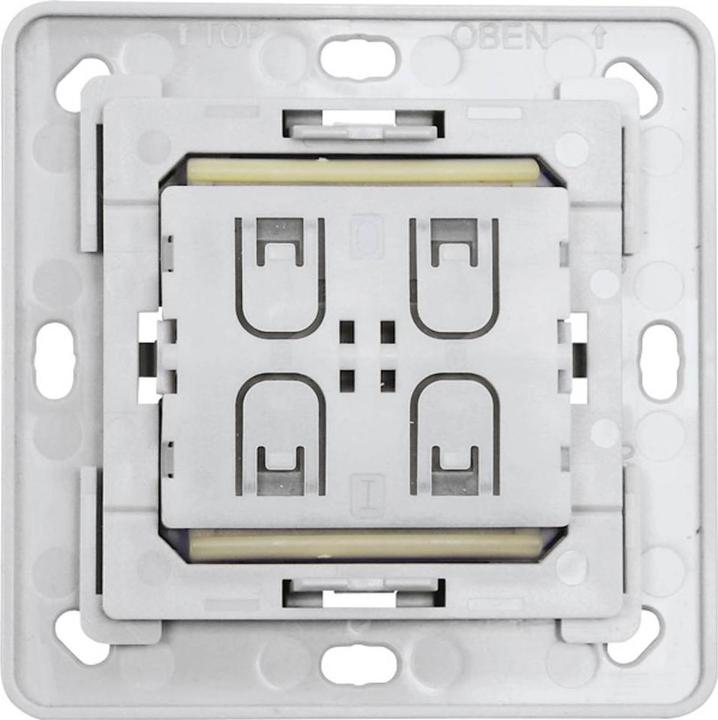

10. Eltako Wireless push-button insert

Radio button module with EnOcean energy generator. It generates the energy for radio telegrams even when the button is pressed, thus eliminating the need for connection wires and preventing standby losses. The package includes a mounting plate, a mounting frame for PTM modules with the installed EnOcean module PTM216Z (ZigBee Green Power), and an adhesive foil. The mounting plate can be screwed onto a device box with a screw distance of 60 mm or onto a flat surface. With the included adhesive foil, the radio button can be attached to walls, glass, or furniture. Radio buttons with a single rocker can send two evaluable signals, while buttons with a double rocker can send four evaluable signals. Note: Not compatible with EnOcean radio actuators!.
