Product details

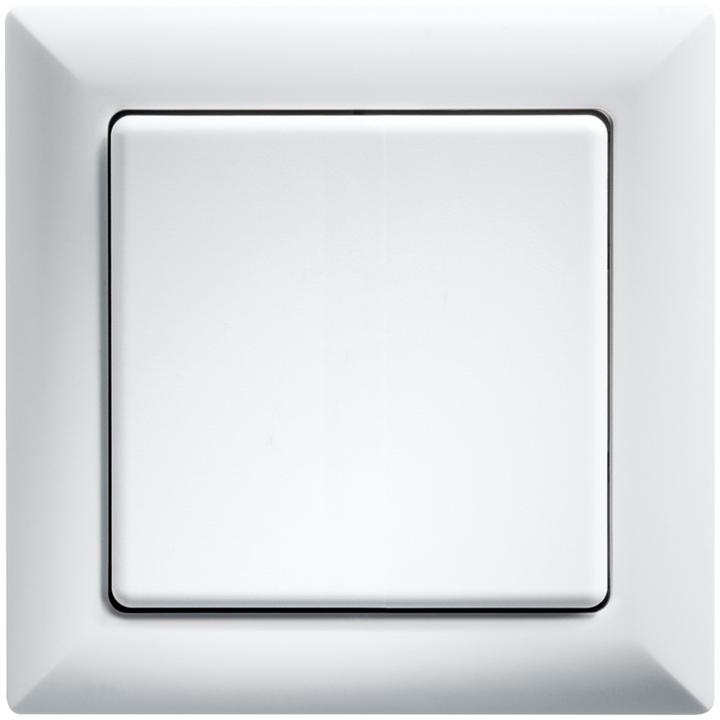

FT55 Wireless Switch 55x55 mm, battery and wire-free. Outer dimensions 80x80 mm, inner dimensions of the frame 55x55 mm, height 15 mm. It generates the energy for wireless signals even when the button is pressed, thus eliminating the need for connection wires and preventing standby loss. The package includes the frame R, a single rocker W55, a double rocker DW55 (all in the same color), a mounting frame BRF, the holding plate HP, the wireless module, and an adhesive film.

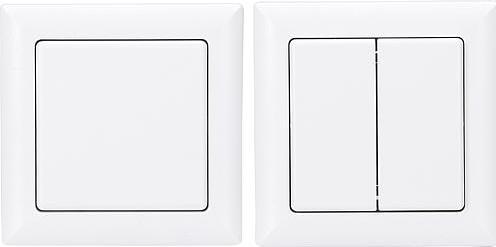

The switch with a single rocker can send two actionable signals: pressing the top rocker and pressing the bottom rocker. The switch with a double rocker can send four actionable signals: pressing both rockers at the top and bottom. The holding plate can be screwed onto a flat surface or adhered to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw mounting. The wireless switch lighting FTB can then be latched onto the holding plate from behind. The double rocker is factory-latched onto the wireless module. If it needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then, latch the large rocker so that its markings 0 and I on the back align with the wireless module.
With remote control: no, wall-mounted: yes, window-mounted: no, with remote control: no, signal transmission: wireless, number of channels: 4, mounting type: surface-mounted, material: plastic, material quality: thermoplastic, halogen-free: yes, surface protection: untreated, surface finish: matte, color: white, transparent: no, range: 30 m, suitable for switches: yes, suitable for dimmers: yes, suitable for blind switches: yes, suitable for display elements: yes, suitable for motion detectors: no, compatible with Apple HomeKit: no, compatible with Google Assistant: no, compatible with Amazon Alexa: no, IFTTT support available: no.
Light switch + socket Type | Radio wall switch |
mounting style | Finery |
Application range | Indoor |
Number of switches | 4 x |
Exact colour description | White |
Item number | 14169787 |
Manufacturer | Eltako |
Category | Light switches + Plug sockets |
Manufacturer no. | 30000592 |
Release date | 11.11.2020 |
External links |
Colour | White |
Exact colour description | White |
Material group | Glass |
Material | Plastic |
Light switch + socket Type | Radio wall switch |
mounting style | Finery |
Application range | Indoor |
Number of switches | 4 x |
Additional properties | Halogen-free |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Transmission type | Funk |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 9 cm |
Width | 5 cm |
Height | 9 cm |
Weight | 0.09 kg |
Length | 10 cm |
Width | 10 cm |
Height | 4 cm |
Weight | 80 g |
