Best selling Diodes from EVN-Lichttechnik
This page always stays fresh and updates automatically.
1. EVN-Lichttechnik LED power supply
EVN Lichttechnik LED Power Supply LV 24008
Manufacturer: EVN Lichttechnik
Designation: LED Power Supply 24VDC 0.1-8W round
Type: LV 24008
Design: Static
Suitable for outdoor use: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming potentiometer (device-integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase cut: No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with Push-button: No
Constant luminous flux control: No
Without dimming function: Yes
Housing: Plastic housing
Suitable for constant current: No
Suitable for constant voltage: Yes
Output voltage: 24 V
Suitable for DC voltage (primary side): No
Output power: 0.1-8 W
Protection class (IP): IP20
Protection class: II
Height: 22 mm
Diameter: 53 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
The short-circuit-proof safety transformer can be perfectly installed in switch boxes due to its small design, but can also be used in furniture construction as the MM marking is given. The connecting leads have a length of 14 cm on the primary side and 17 cm on the secondary side.
Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.90. EAN: 4037293012812.

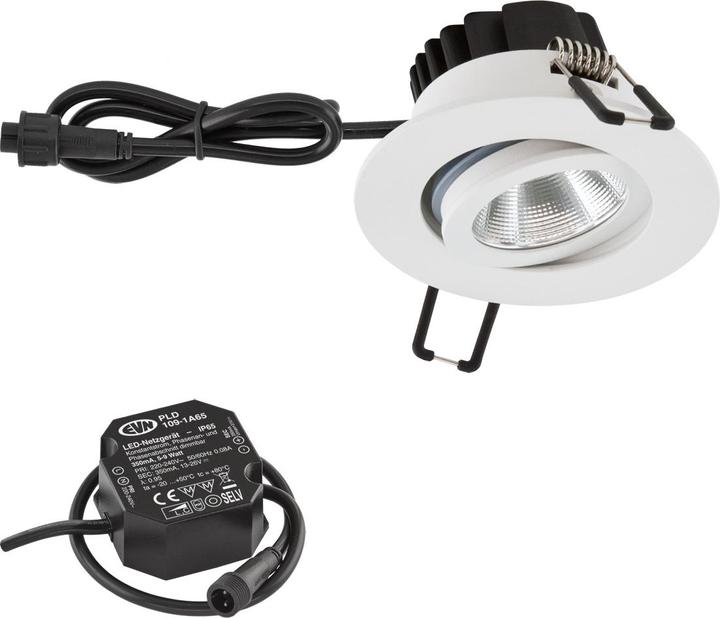

2. EVN-Lichttechnik Lighting technology LED recessed ceiling luminaire PCE650N60102
The EVN Lichttechnik LED recessed ceiling light PCE650N60102 is a modern and efficient lighting solution that is ideal for ceiling installation. With its elegant housing made of powder-coated stainless steel and a transparent glass cover, it harmoniously integrates into various room designs. This light is equipped with a non-replaceable LED that provides a pleasant light color of 3000K, creating a warm and inviting atmosphere. The swivel function allows for flexible light orientation to achieve targeted lighting effects. The fixture is designed to operate with a nominal voltage of 220 to 240 V and offers easy installation without additional mounting options such as pendant or wall mounting. This recessed ceiling light is an excellent choice for those who value quality and design.
- Energy-efficient LED technology for low power consumption
- Swivel function for flexible light orientation
- Elegant housing made of powder-coated stainless steel
- Easy installation for ceiling mounting.

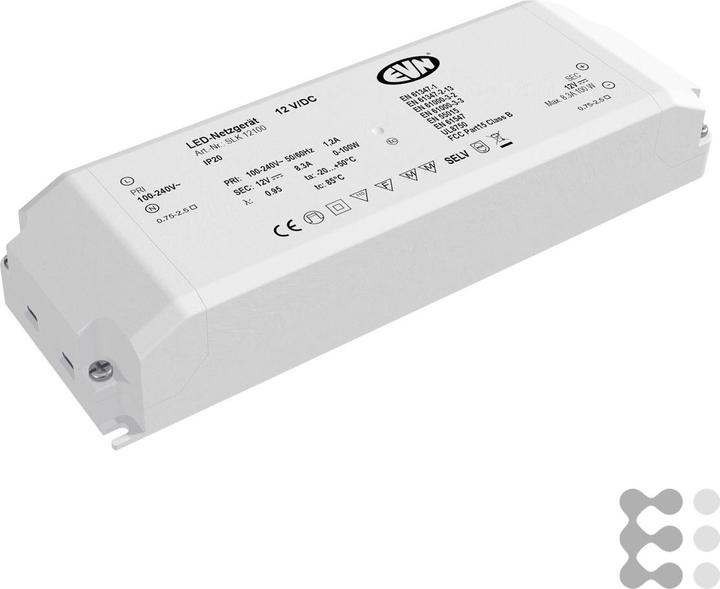

3. EVN-Lichttechnik Power supply unit
The short-circuit-proof safety transformer can be easily used in furniture construction, as it has the MM marking. The primary and secondary connections are made via screw terminals, which are suitable for cables from 0.75 mm² to 2.5 mm². Technical data: Supply voltage: 100-240 V/AC and 180-250 V/DC, ta: -20 °C to 50 °C, tc: 85 °C, power factor: 0.95.

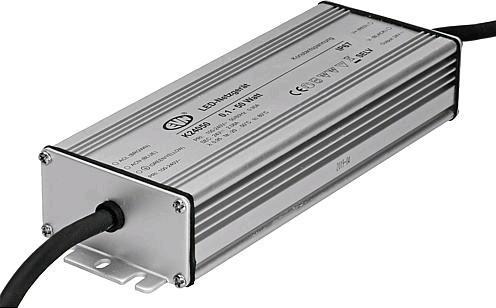

4. EVN-Lichttechnik Lighting Technology LED Power Supply Unit K24050
The short-circuit-proof safety transformer can be easily used outdoors due to its higher protection class, but it can also be utilized in furniture construction, as it has the MM marking. The connection cables are 29 cm long on the primary side and 29 cm long on the secondary side. Technical data: Supply voltage: 100-240 V/AC and 180-250 V/DC, ta: -20 °C to 50 °C, tc: 80 °C, power factor 0.95.
5. EVN-Lichttechnik Dali
EVN Lichttechnik DALI multicolour receiver DALD824100VS
Manufacturer: EVN Lichttechnik
Designation: DALI multicolour receiver including power supply
Type: DALD824100VS
Version: Dynamic
Power supply unit: DALD824100VS
Suitable for outdoor use: No
Type of control: DALI
Number of colour channels: 4
Programmable: Yes
Housing: Plastic housing
Construction: Yes
Installation: Yes
DIN rail mounting: No
Output voltage: 24 V
Input voltage: 100-240 V
Protection class (IP): IP20
Protection class: II
Length: 244 mm
Width: 64 mm
Height: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
The DALI multicolour receiver with integrated power supply unit is designed for tunable white, RGB, and RGBW luminaires with manual or automatic DALI address setting. An additional control gear is not required as the receiver also functions as such.
Connections include 1x input for DALI bus or Push-L, 1x input for 100-240V/AC, and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0.5mm² to 1.5mm².
Technical data:
Ambient temperature: -20°C to 45°C
Case temperature: 85°C
Complies with standard protocol IEC 60929.
Protocol: DT8, DALI2.
EAN: 4037293031295.

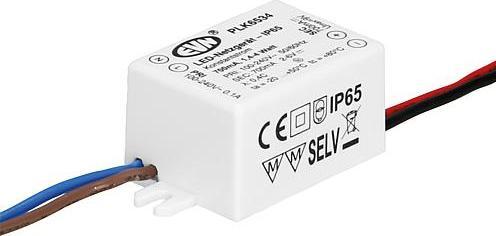

6. EVN-Lichttechnik P-LED
EVN Lichttechnik P-LED Power Supply PLK6534
Manufacturer: EVN Lichttechnik
Designation: P-LED Power Supply
IP Rating: IP65
Output Current: 700 mA
Output Power: 2-4 W
Type: PLK6534
Version: Static
Suitable for Outdoor Use: Yes
Dimming Options:
- 0-10 V: No
- 1-10 V: No
- DALI: No
- DSI: No
- DMX: No
- Potentiometer (Device-Integrated): No
- GPRS: No
- LineSwitch: No
- Manufacturer-Specific: No
- Mains Voltage Modulation: No
- Phase Cut: No
- Programmable: No
- RF: No
- Sine Wave Reduction: No
- Touch and Dim: No
- Zigbee: No
- With Push-Button: No
Constant Luminous Flux Control: No
Without Dimming Function: Yes
Housing: Plastic
Suitable for Constant Current: Yes
Suitable for Constant Voltage: No
Suitable for DC Voltage (Primary Side): No
Protection Class (IP): IP65
Protection Class: II
Dimensions:
- Length: 54 mm
- Width: 27 mm
- Height: 21 mm
Compatibility:
- Apple HomeKit: No
- Google Assistant: No
- Amazon Alexa: No
- IFTTT Support: No
The LED power supply unit can be perfectly installed in switch boxes due to its compact design. The connection cables have a length of 17 cm on both the primary and secondary sides.
Technical Data:
Supply Voltage: 100-240V/AC
Operating Temperature: -20°C to 50°C
Case Temperature: 80°C
Power Factor: 0.40
EAN: 4037293013260.

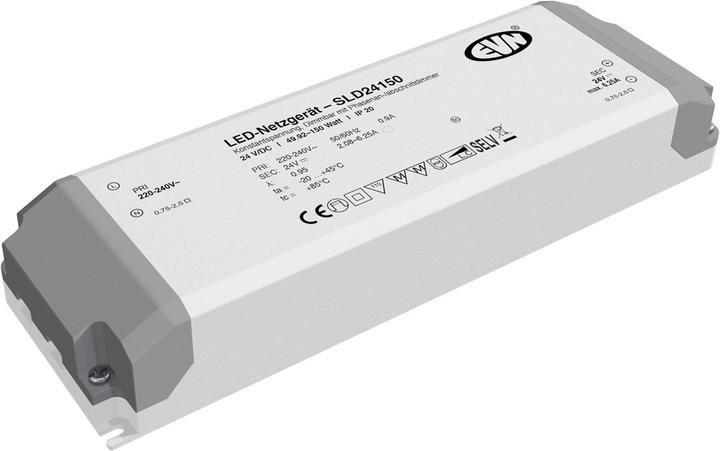

7. EVN-Lichttechnik LED power supply unit IP20 50-150W SLD24150 ** dimmable phase 24V/DC 210x67x34mm
EVN Lichttechnik LED Power Supply SLD24150
Manufacturer: EVN Lichttechnik
Designation: LED Power Supply 24V/DC dimmable
Type: SLD24150
Execution: dynamic
Suitable for outdoor use: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DSI: no
Dimming DMX: no
Dimming Potentiometer (integrated): no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming phase cut: yes
Dimming phase control: yes
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with Push-button: no
Constant current regulation: no
Without dimming function: no
Housing: plastic housing
Suitable for constant current: no
Suitable for constant voltage: yes
Output voltage: 24 V
Suitable for direct current (primary side): no
Output power: 49.92..150 W
Protection class (IP): IP20
Protection class: II
Length: 210 mm
Width: 67 mm
Height: 34 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
The short-circuit-proof safety transformer is intended for indoor use only but can also be used in furniture construction, as it has the MM marking. The screw terminals on both the primary and secondary sides are suitable for cables from 0.75-2.5 mm². When using an LED dimmer with a minimum load of max. 3 W, the dimming range is 100 - 0 %, while using an LED dimmer with a higher minimum load may result in a reduced dimming range.
Technical data:
Supply voltage: 220-240 V/AC
ta: -20 °C - 45 °C
tc: 90 °C
Power factor: 0.95
EAN: 4037293061537.
Diode
CHF189.–
EVN-Lichttechnik LED power supply unit IP20 50-150W SLD24150 ** dimmable phase 24V/DC 210x67x34mm
8. EVN-Lichttechnik DALI LED control
EVN Lichttechnik DALI LED control unit DALD35050VS
Manufacturer: EVN Lichttechnik
Designation: DALI LED control unit 350mA 50W
Type: DALD35050VS
Version: Dynamic
Suitable for outdoor use: No
Type of control: DALI
Number of colour channels: 1
Programmable: No
Housing: Plastic housing
Construction: Yes
Installation: Yes
DIN rail mounting: No
Output voltage: 0 V
Input voltage: 200-240 V
Max. output current: 0.35 A
Protection class (IP): IP20
Protection class: II
Length: 210 mm
Width: 50 mm
Height: 32 mm
Diameter: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
The EVN Lichttechnik DALI LED control DALD35050VS is a DALI dimmer receiver with an integrated power supply unit for Unicolor luminaires, featuring manual or automatic DALI address setting. No additional control gear is required, as the receiver functions as such simultaneously. Optionally, the receiver can also be dimmed via Push-L (as 1-channel).
Connections include: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC, and 1x output for 350mA. The screw terminals are suitable for cables of 0.5mm² - 1.5mm².
Technical data:
- Ambient temperature: -20°C to 45°C
- Case temperature: 75°C
- Power: 10.5-50W
- Power factor: 0.95
Conforms to standard protocol IEC 60929.
Protocol: DT6, DALI2.
EAN: 4037293014748.

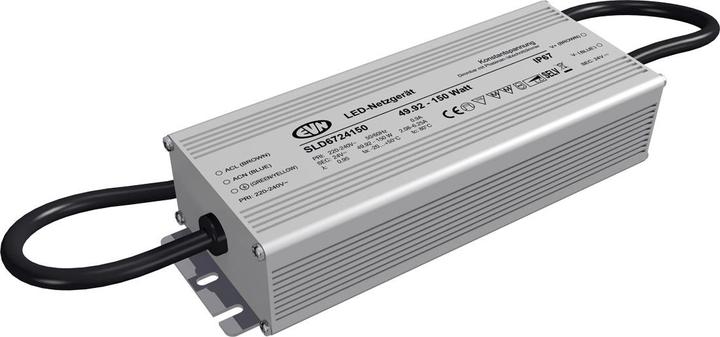

9. EVN-Lichttechnik Power supply unit IP67 50-150W SLD6724150 ** dimmable phase 24V/DC 192x70x40mm
EVN Lichttechnik LED power supply unit SLD6724150
Manufacturer: EVN Lichttechnik
Designation: LED power supply unit
Voltage: 24V/DC
Type: SLD6724150
Design: Dynamic
Suitable for outdoor use: Yes
Dimming options:
- 0-10 V: No
- 1-10 V: No
- DALI: No
- DSI: No
- DMX: No
- Potentiometer (device-integrated): No
- GPRS: No
- LineSwitch: No
- Manufacturer-specific: No
- Mains voltage modulation: No
- Phase section: Yes
- Phase angle: Yes
- Programmable: No
- RF: No
- Sine Wave Reduction: No
- Touch and Dim: No
- Zigbee: No
- With Push-button: No
Constant luminous flux control: No
Without dimming function: No
Housing: Metal housing
Suitable for constant current: No
Suitable for constant voltage: Yes
Output voltage: 24 V
Suitable for DC voltage (primary side): No
Output power: 49.92 - 150 W
Protection class (IP): IP67
Protection class: I
Dimensions:
- Length: 192 mm
- Width: 70 mm
- Height: 40 mm
Compatible with:
- Apple HomeKit: No
- Google Assistant: No
- Amazon Alexa: No
- IFTTT support: No
The short-circuit-proof safety transformer can be used outdoors due to its higher protection rating, and it is also suitable for furniture construction as it is MM-marked. When using an LED dimmer with a minimum load of max. 3W, the dimming range is 100 - 0%. With a higher minimum load, the dimming range may be reduced. The connecting cables have a length of 29 cm on both the primary and secondary sides.
Technical data:
Supply voltage: 220-240V/AC
Temperature range: -20°C to 50°C
tc: 80°C
Power factor: 0.95
EAN: 4037293061544.
Diode
CHF219.–
EVN-Lichttechnik Power supply unit IP67 50-150W SLD6724150 ** dimmable phase 24V/DC 192x70x40mm

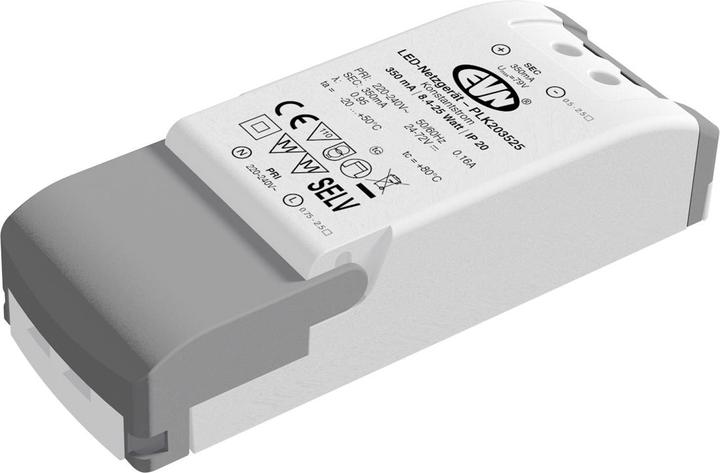

10. EVN-Lichttechnik Lighting Technology LED Power Supply PLK203525
The short-circuit-proof safety transformer can be easily used in furniture construction, as it has the MM marking. The primary and secondary connections are made via screw terminals, which are suitable for cables ranging from 0.75 mm² to 2.5 mm². Technical data: Supply voltage: 220-240 V/AC and 180-250 V/DC, ta: -20 °C to 50 °C, tc: 80 °C, power factor 0.95.
