EVN-Lichttechnik P-LED

EVN Lichttechnik P-LED Power Supply PLK6534

Manufacturer: EVN Lichttechnik
Designation: P-LED Power Supply
IP Rating: IP65
Output Current: 700 mA
Output Power: 2-4 W
Type: PLK6534
Version: Static
Suitable for Outdoor Use: Yes

Dimming Options:

• 0-10 V: No
• 1-10 V: No
• DALI: No
• DSI: No
• DMX: No
• Potentiometer (Device-Integrated): No
• GPRS: No
• LineSwitch: No
• Manufacturer-Specific: No
• Mains Voltage Modulation: No
• Phase Cut: No
• Programmable: No
• RF: No
• Sine Wave Reduction: No
• Touch and Dim: No
• Zigbee: No
• With Push-Button: No

Constant Luminous Flux Control: No
Without Dimming Function: Yes

Housing: Plastic
Suitable for Constant Current: Yes
Suitable for Constant Voltage: No
Suitable for DC Voltage (Primary Side): No

Protection Class (IP): IP65
Protection Class: II

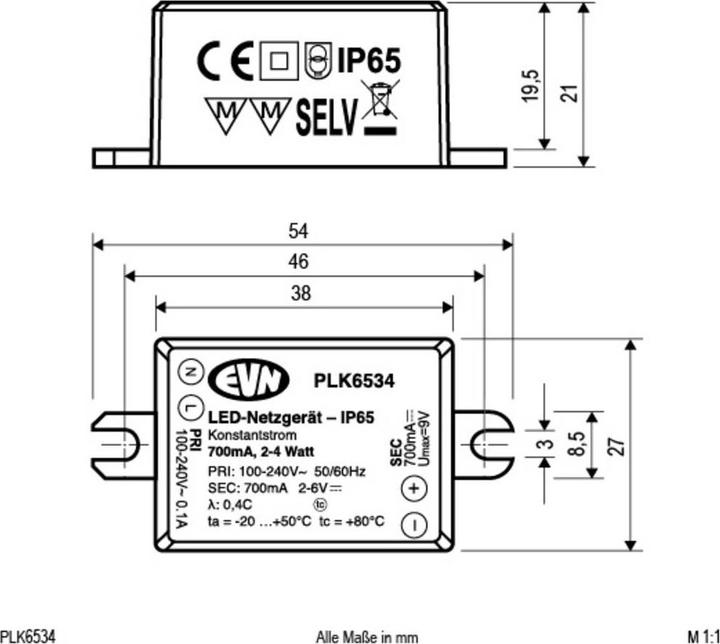

Dimensions:

• Length: 54 mm
• Width: 27 mm
• Height: 21 mm

Compatibility:

• Apple HomeKit: No
• Google Assistant: No
• Amazon Alexa: No
• IFTTT Support: No

The LED power supply unit can be perfectly installed in switch boxes due to its compact design. The connection cables have a length of 17 cm on both the primary and secondary sides.

Technical Data:
Supply Voltage: 100-240V/AC
Operating Temperature: -20°C to 50°C
Case Temperature: 80°C
Power Factor: 0.40
EAN: 4037293013260.
