EVN-Lichttechnik Power supply unit IP67 50-150W SLD6724150 ** dimmable phase 24V/DC 192x70x40mm

EVN Lichttechnik LED power supply unit SLD6724150

Manufacturer: EVN Lichttechnik
Designation: LED power supply unit
Voltage: 24V/DC
Type: SLD6724150
Design: Dynamic
Suitable for outdoor use: Yes
Dimming options:

• 0-10 V: No
• 1-10 V: No
• DALI: No
• DSI: No
• DMX: No
• Potentiometer (device-integrated): No
• GPRS: No
• LineSwitch: No
• Manufacturer-specific: No
• Mains voltage modulation: No
• Phase section: Yes
• Phase angle: Yes
• Programmable: No
• RF: No
• Sine Wave Reduction: No
• Touch and Dim: No
• Zigbee: No
• With Push-button: No

Constant luminous flux control: No
Without dimming function: No
Housing: Metal housing
Suitable for constant current: No
Suitable for constant voltage: Yes
Output voltage: 24 V
Suitable for DC voltage (primary side): No
Output power: 49.92 - 150 W
Protection class (IP): IP67
Protection class: I

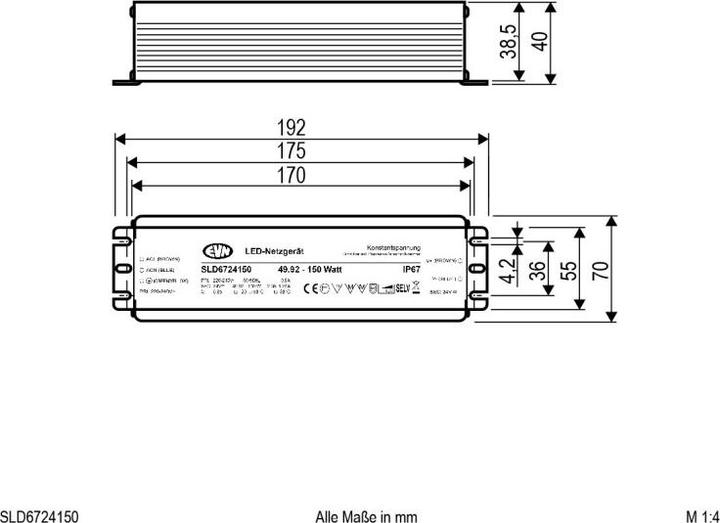

Dimensions:

• Length: 192 mm
• Width: 70 mm
• Height: 40 mm

Compatible with:

• Apple HomeKit: No
• Google Assistant: No
• Amazon Alexa: No
• IFTTT support: No

The short-circuit-proof safety transformer can be used outdoors due to its higher protection rating, and it is also suitable for furniture construction as it is MM-marked. When using an LED dimmer with a minimum load of max. 3W, the dimming range is 100 - 0%. With a higher minimum load, the dimming range may be reduced. The connecting cables have a length of 29 cm on both the primary and secondary sides.

Technical data:
Supply voltage: 220-240V/AC
Temperature range: -20°C to 50°C
tc: 80°C
Power factor: 0.95
EAN: 4037293061544.
