EVN Lichttechnik DALI multicolour receiver DALD824100VS

Manufacturer: EVN Lichttechnik
Designation: DALI multicolour receiver including power supply
Type: DALD824100VS
Version: Dynamic
Power supply unit: DALD824100VS
Suitable for outdoor use: No
Type of control: DALI
Number of colour channels: 4
Programmable: Yes
Housing: Plastic housing
Construction: Yes
Installation: Yes
DIN rail mounting: No
Output voltage: 24 V
Input voltage: 100-240 V
Protection class (IP): IP20
Protection class: II

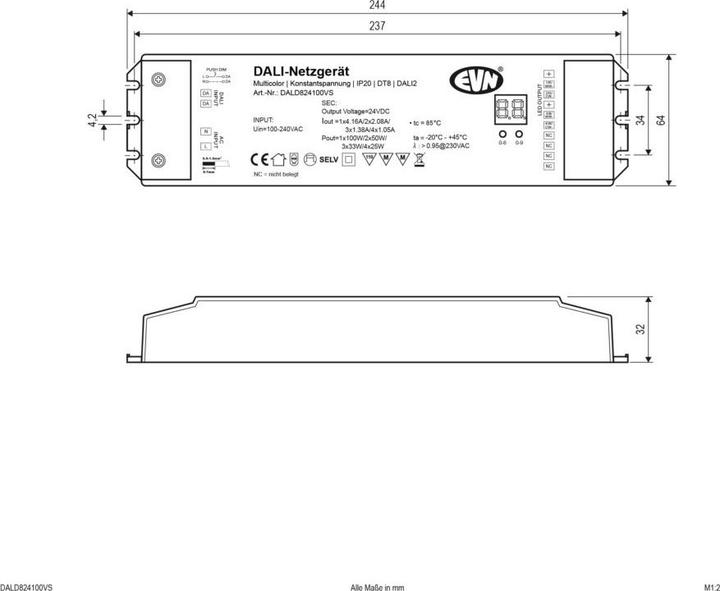

Length: 244 mm
Width: 64 mm
Height: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

The DALI multicolour receiver with integrated power supply unit is designed for tunable white, RGB, and RGBW luminaires with manual or automatic DALI address setting. An additional control gear is not required as the receiver also functions as such.

Connections include 1x input for DALI bus or Push-L, 1x input for 100-240V/AC, and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0.5mm² to 1.5mm².

Technical data:
Ambient temperature: -20°C to 45°C
Case temperature: 85°C
Complies with standard protocol IEC 60929.
Protocol: DT8, DALI2.
EAN: 4037293031295.
