EVN-Lichttechnik DALI LED control

EVN Lichttechnik DALI LED control unit DALD35050VS

Manufacturer: EVN Lichttechnik
Designation: DALI LED control unit 350mA 50W
Type: DALD35050VS
Version: Dynamic
Suitable for outdoor use: No
Type of control: DALI
Number of colour channels: 1
Programmable: No
Housing: Plastic housing
Construction: Yes
Installation: Yes
DIN rail mounting: No
Output voltage: 0 V
Input voltage: 200-240 V
Max. output current: 0.35 A
Protection class (IP): IP20
Protection class: II

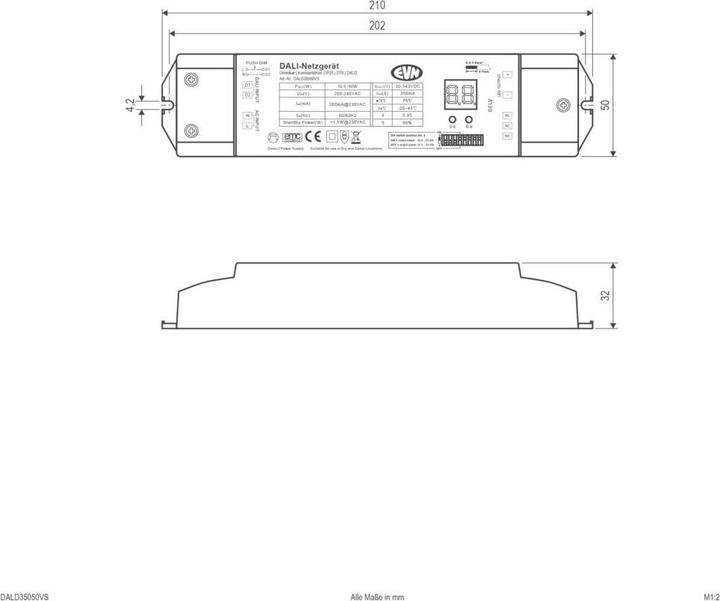

Length: 210 mm
Width: 50 mm
Height: 32 mm
Diameter: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

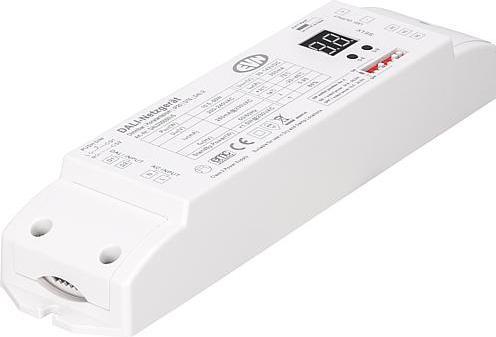

The EVN Lichttechnik DALI LED control DALD35050VS is a DALI dimmer receiver with an integrated power supply unit for Unicolor luminaires, featuring manual or automatic DALI address setting. No additional control gear is required, as the receiver functions as such simultaneously. Optionally, the receiver can also be dimmed via Push-L (as 1-channel).

Connections include: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC, and 1x output for 350mA. The screw terminals are suitable for cables of 0.5mm² - 1.5mm².

Technical data:

• Ambient temperature: -20°C to 45°C
• Case temperature: 75°C
• Power: 10.5-50W
• Power factor: 0.95

Conforms to standard protocol IEC 60929.
Protocol: DT6, DALI2.
EAN: 4037293014748.
