Swaytronic Bluetooth Module Solar Charge Controller
On this page you'll find a ranking of the best Swaytronic products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
Suitable for the models Tracer and DR (Duoracer) vo EpeverBluetooth module for pairing the solar charge controllers of the series Duoracer and Tracer of the brand Epever via an IOS or Android device.
Swaytronic Bluetooth Module Solar Charge Controller

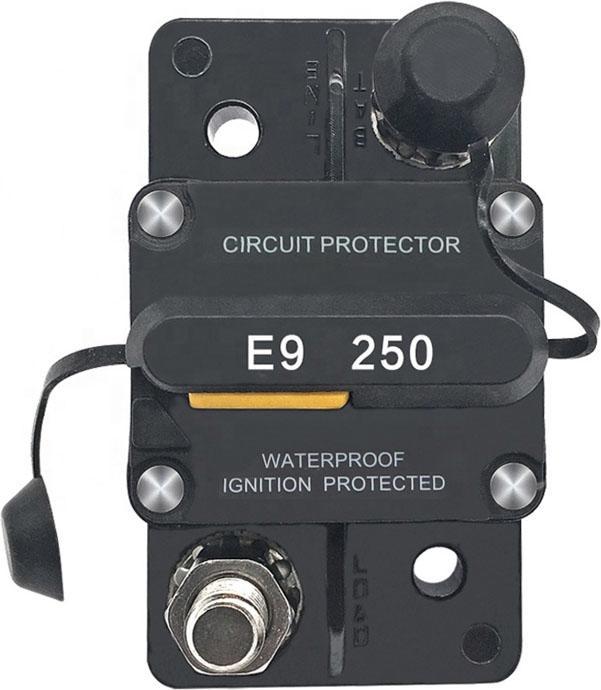

SWAYTRONIC - Automatic circuit breaker 250A
With the thermal circuit breaker from Swaytronic you have the possibility to fuse your DC power applications. The circuit breaker has a manual fuse reset, so you don't have to keep a spare fuse on hand. If the circuit breaker trips, you can reset it manually.The circuit breaker has 3/8" connection terminals.It is suitable for DC voltages in the range of 12V - 48V.Housing | UL certified 94V0 thermosetCurrent rating | DC 250A ARegulatory isolation |Interrupting capacity: SAE J1625; SAE J553,ABYC-E11;UL 1077*Ignition protection type: SAE J1171; UL 1500*Durability| SAE J1625; SAE J553 Dielectric strength | UL 1077*Dust and waterproof| IP67Shock, vibration, corrosion, humidity | Mil-STD-202
Scope of delivery:
1x 250A circuit breaker.

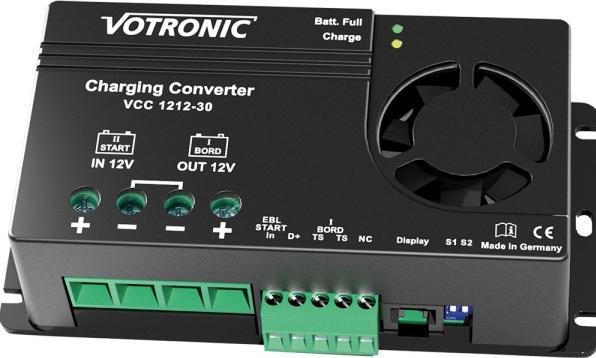

Charging booster 30A VCC 1212-30A 12V 30A Votronic
Fully parameterisable charging converter, ideal for campers and boats.
The most important technical features at a glance:
High charging power even for short distances or full charge for longer journeys.Increases/decreases the voltage to the necessary level to precisely charge the on-board battery with the optimum charging characteristic for it.Compensates for line losses and voltage fluctuations of the alternator, such as those found in Euro 6 vehicles.Fully compensates for line losses and voltage fluctuations of the alternator, which occur constantly to a considerable extent in Euro 6 vehicles (intelligent alternators).Compact design, low weight (high-frequency switch mode technology) and strongly dimensioned power components for safe operation.Significantly improved energy balance of the on-board battery without intervention in the starter circuitSupplied 12 V consumers are protected against overvoltage and voltage fluctuations.The charging voltage is free of peaks and regulated in such a way that overcharging of the batteries is ruled out.Fully automatic operation: The unit is permanently connected to the batteries and is automatically activated by the vehicle's running alternator. When the engine is not running, the batteries are not discharged.Parallel and buffer operation: In case of simultaneous consumption, the battery is further charged or kept full. The unit automatically calculates and monitors the adjustment of the charging times.Monitoring-free charging: Multiple protection against overload, overheating, overvoltage, short-circuit, malfunction and battery back-discharge by electronic cut-off up to complete disconnection of unit and battery.Built-in on-board power supply filter: Problem-free parallel operation with other charging sources (EBL, chargers, motor and fuel generators, solar systems) on one battery.Charging cable compensation: Voltage losses on the charging cables are automatically compensated.Connection for battery temperature sensor (included): For lead batteries (acid, gel, AGM), the charging voltage is automatically adjusted to the battery temperature, resulting in better full charging of the weaker battery in cold weather, and avoiding unnecessary battery gassing in summer temperatures.LiFePO4 batteries: Battery protection at high and especially at low temperatures < 0°C.Charging aid for deeply discharged lead batteries: Gentle pre-charging of the (lead-acid, -gel, -AGM) battery up to 8 V, then powerful support of the battery with possibly still switched on consumers.
Scope of delivery:
1 x charge booster1 x operating instructions.

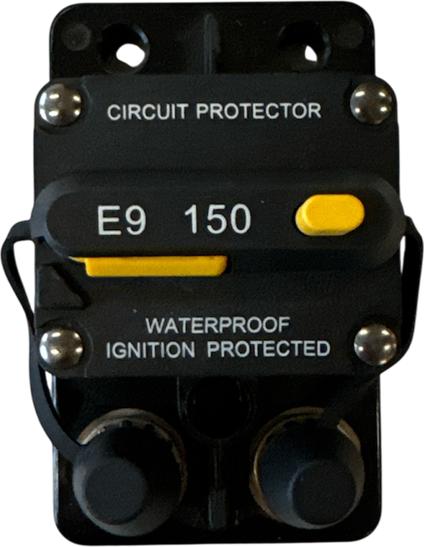

Automatic circuit breaker 150A. With the thermal circuit breaker from Swaytronic you have the possibility to fuse your DC power applications. The circuit breaker has a manual reset of the fuse. You do not need to have a spare fuse ready. If the circuit breaker trips, you can reset it manually. The circuit breaker has 1/4" connection terminals. It is suitable for DC voltages in the range of 12V - 48V. Housing | UL-certified 94V0 thermoset. Current carrying capacity | DC 150A. Regulatory separation |Interrupting capacity: SAE J1625; SAE J553,ABYC-E11;UL 1077*. Ignition protection type: SAE J1171; UL 1500*. Durability| SAE J1625; SAE J553. Dielectric strength | UL 1077. Shock, vibration, corrosion, humidity | Mil-STD-202. Scope of delivery: 1x 150A circuit breaker.
SWAYTRONIC 2 in1 charge booster 20/20A - B2B and MPPT
Charge booster and solar charge controller in one unitThe unit has fully automatic computer control. The desired battery type to be charged is simply set via the pressure switch on the housing.
The 2in1 charge booster and MPPT takes over the regulation of the charging characteristic curve of the solar or alternator fully automatically and charges your surface-mounted battery.
The charge booster has a switch-on voltage threshold of 12.5V to ensure that the starter battery is not discharged. In addition, a D+ or ignition signal can also be controlled. The small design makes it possible to optimally integrate the combination unit in the vehicle.
Features:
- Combi - charge booster and solar charge controller in one unit-Adjustable battery type - AGM/Gel, Lead Acid, Calcium, LiFePO4- Automatic switch-off of the charge booster at input voltage below 12.5V- MPPT solar charge controller for maximum yield with solar (input solar 16-25V)- Various safety mechanisms such as: Reverse polarity protection at input and output, overtemperature protection, short-circuit protection, etc.- Memory function in case of current undercalculation - The unit saves the previously set battery type.
- Small size - Optimal integration in tight spacesAdaptive charging takes into account multiple factors to perform multi-stage charging, including temperature, current and time.It ensures proper charging in any environment.The unit is protected against dust and moisture with IP65 housing.
Scope of delivery:
1 x SWAYTRONIC 2 in1 charge booster 20/20A - B2B and MPPT1 x instruction manual.

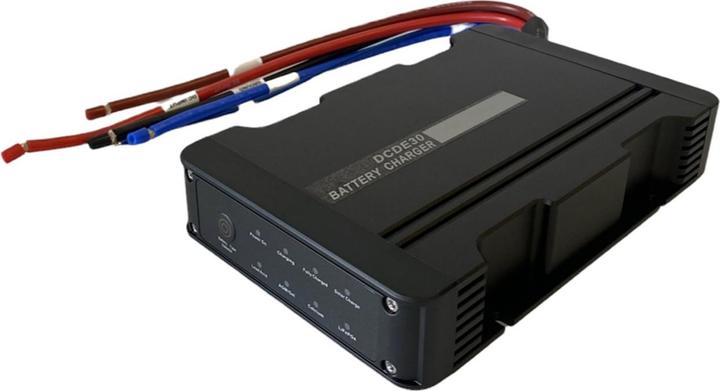

SWAYTRONIC 2 in1 Charge Booster 30/30A - B2B and MPPT Charge booster and solar charge controller in one device The combined solar charge controller-charge converter is equipped with the latest technology to ensure a full charge of the service battery in the vehicle. The toggle switches on the side of the unit can be used to directly set the type of battery used (AGM, Gel, LFP, Wet). The unit is compatible with an intelligent ECU controlled alternator (Euro 6) and maintains a stable output for multi-stage charging. The housing is jet water resistant (IP63). In addition, the model has a powerful and high-efficiency solar charge controller (MPPT) integrated. Features: - Safe, fast and correct temperature and voltage compensated battery charging - Battery type (AGM, GEL, LFP, WET) adjustable by dip switches - With function of battery isolation, protection of starter battery - Built-in automatic temperature and voltage compensated battery charging - Built-in MPPT solar charge controller - IP65 housing, No fan for convenient installation - TBB Premium II adaptive charging algorithm Adaptive charging considers multiple factors to perform multi-stage charging, including temperature, current and time. It ensures proper charging in any environment. The device is protected against dust and moisture with IP65 enclosure. Lithium-ion battery compatible The charge converter can provide the charging characteristic for lithium battery, which is usually very sensitive to voltage. The device is equipped with a built-in temperature-controlled charging algorithm. This ensures that the lithium batteries are charged gently at low temperatures. Scope of delivery: 1 x SWAYTRONIC 2 in1 charge booster 30/30A - B2B and MPPT 1 x user manual.
Charging booster Victron Smart Orion-Tr 12/12/30
Fully parameterisable charging converter Orion Smart with 3 charging levels, ideal for campers and boats.
Suitable for Bluetooth Smart
Monitoring, changing settings and updating the charger when new software functions become available can be done with any Bluetooth-enabled smartphone, tablet or other device.
Fully programmable
Battery charging algorithm (configurable) or fixed output.
Intelligent generator compatibility: engine run detection.
Adaptive 3-stage charging algorithm: constant current - constant voltage - conservation.
For lead-acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery is fully charged.
For lithium batteries, the recording time is fixed, by default 2 hours.
Alternatively, a fixed output voltage can be selected.
Remote on/off
A remote on/off switch or a relay contact can be connected to the two-pole plug. Alternatively, the H terminal (right) of the two-pole plug can be connected to a battery positive terminal or the L terminal (left) of the two-pole plug can be connected to the battery negative terminal (or to the body of a vehicle, for example).
All models are short-circuit proof and can be connected in parallel to increase the output current.An unlimited number of units can be connected in parallel.Over-temperature protectionThe output current is reduced at high ambient temperatures.IP43 protection classIf the screw terminals on the unit are installed facing downwards.Screw terminalsNo special tools are required for installation.Input fuse (non-replaceable).
Scope of delivery:
1 x Charging booster1 x Operating instructions.
Charging booster 50A VCC 1212-50A 12V 50A Votronic
Fully parameterisable charging converter, ideal for campers and boats.
The most important technical features at a glance:
High charging power even for short distances or full charge for longer journeys.Increases/decreases the voltage to the necessary level to precisely charge the on-board battery with the optimum charging characteristic for it.Compensates for line losses and voltage fluctuations of the alternator, such as those found in Euro 6 vehicles.Fully compensates for line losses and voltage fluctuations of the alternator, which occur constantly to a considerable extent in Euro 6 vehicles (intelligent alternators).Compact design, low weight (high-frequency switch mode technology) and strongly dimensioned power components for safe operation.Significantly improved energy balance of the on-board battery without intervention in the starter circuitSupplied 12 V consumers are protected against overvoltage and voltage fluctuations.The charging voltage is free of peaks and regulated in such a way that overcharging of the batteries is ruled out.Fully automatic operation: The unit is permanently connected to the batteries and is automatically activated by the vehicle's running alternator. When the engine is not running, the batteries are not discharged.Parallel and buffer operation: In case of simultaneous consumption, the battery is further charged or kept full. The unit automatically calculates and monitors the adjustment of the charging times.Monitoring-free charging: Multiple protection against overload, overheating, overvoltage, short-circuit, malfunction and battery back-discharge by electronic cut-off up to complete disconnection of unit and battery.Built-in on-board power supply filter: Problem-free parallel operation with other charging sources (EBL, chargers, motor and fuel generators, solar systems) on one battery.Charging cable compensation: Voltage losses on the charging cables are automatically compensated.Connection for battery temperature sensor (included): For lead batteries (acid, gel, AGM), the charging voltage is automatically adapted to the battery temperature, resulting in better full charging of the weaker battery in cold weather, and avoiding unnecessary battery gassing in summer temperatures.LiFePO4 batteries: Battery protection at high and especially at low temperatures < 0°C.Charging aid for deeply discharged lead batteries: Gentle pre-charging of the (lead-acid, -gel, -AGM) battery up to 8 V, then powerful support of the battery with possibly still switched on consumers.
Scope of delivery:
1 x charge booster1 x operating instructions.
SWAYTRONIC Energy-Station AC Charger 20A 29.2V The battery charger has 3-stage intelligent charging technology with single chip microcomputer (MCU), which can accurately track the battery charging process and always put the battery in the best electrochemical reaction state to prolong its life. The control circuit adopts advanced high bridge transformer -LLC half bridge control technology. The solid case ensures good heat dissipation and improves the efficiency of the charger. Applications: Chargers in this series are used to charge the Swaytronic Energy Station and Battery Packs. Scope of delivery: 1 x charger 1 x power cord 1 x instruction manual.
