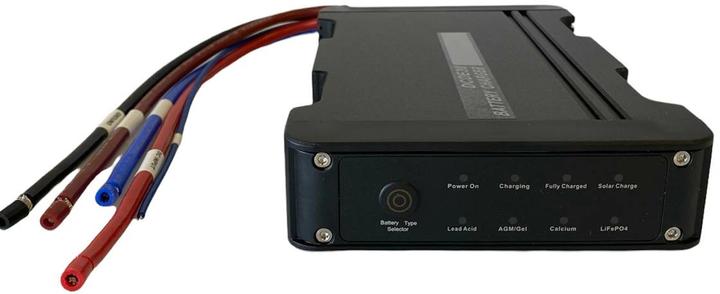

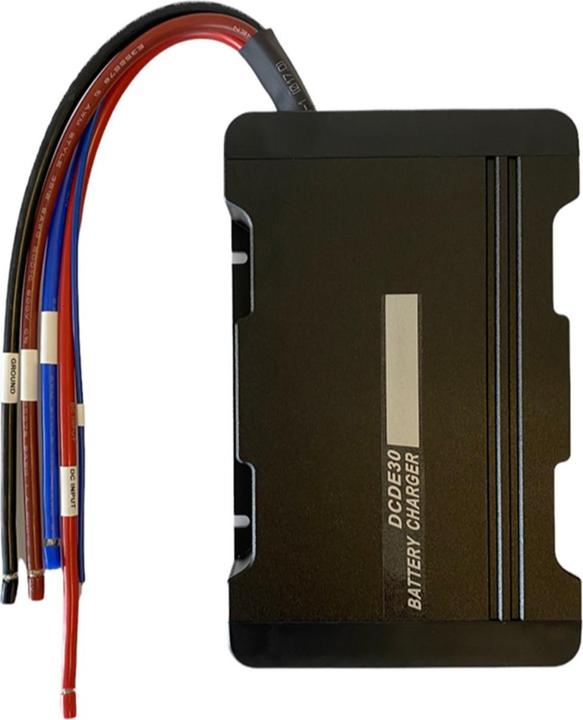

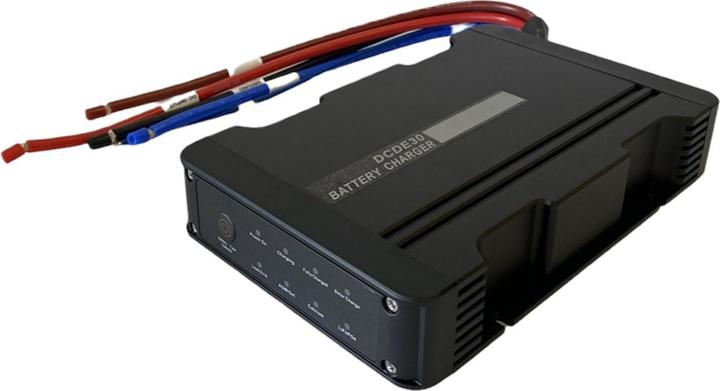

Swaytronic 2 in1 charge booster 30/30A - B2B and MPPT

Swaytronic 2 in 1 Charge Booster 30/30A - B2B and MPPT

Charge booster and solar charge controller in one device. The unit features fully automatic computer control. The desired battery type to be charged is easily set via the push button on the housing. The 2 in 1 charge booster and MPPT automatically regulates the charging curve from solar or alternator and charges your auxiliary battery. With the integration of an MPPT solar charge controller, the device also delivers maximum performance in solar operation.

The charge booster has a switch-on voltage threshold of 12.5 V to ensure that the starter battery is not discharged. Additionally, a D+ or ignition signal can also be controlled. Due to its compact design, the combination device can be optimally integrated into the vehicle.

Features:

• Combination - Charge booster and solar charge controller in one device
• Adjustable battery type - AGM/Gel, Lead-Acid, Calcium, LiFePO4
• Automatic shutdown of the charge booster at input voltage below 12.5 V
• MPPT solar charge controller for maximum yield with solar (Solar input 16-25 V)
• Various safety mechanisms such as reverse polarity protection at input and output, over-temperature protection, short-circuit protection, etc.
• Memory function during power interruption - The device remembers the previously set battery type
• Compact design - Optimal integration in tight spaces

During adaptive charging, multiple factors are taken into account to perform a multi-stage charge, including temperature, current, and time. It ensures the correct charging in any environment. The device is protected against dust and moisture with an IP65 housing.

Delivery includes:
1 x Swaytronic 2 in 1 Charge Booster 30/30A - B2B and MPPT
1 x User manual.
