Swaytronic Charging booster Victron Smart Orion-Tr 12/12/18 isol.

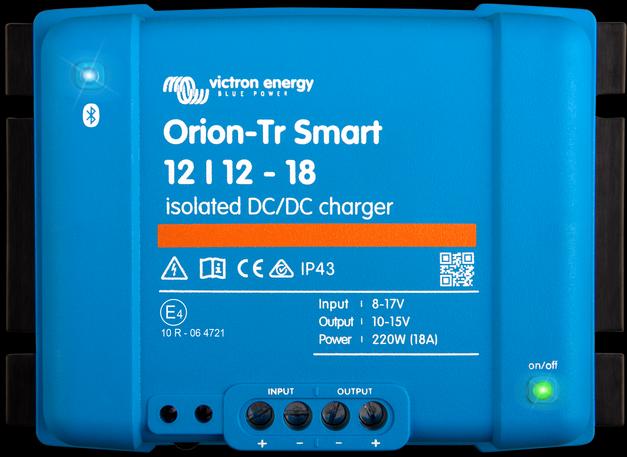

Victron Smart Orion-Tr 12/12/18 Battery Booster
Fully programmable battery charger inverter Orion Smart with 3 charging stages, ideal for campers and boats.

Compatible with Bluetooth Smart
Monitoring, changing settings, and updating the charger with newly available software features can be done with any Bluetooth-enabled smartphone, tablet, or other devices.

Fully programmable

Battery charging algorithm (configurable) or fixed output.

Intelligent generator compatibility: engine running detection.

Adaptive 3-stage charging algorithm: Constant current - Constant voltage - Maintenance

For lead batteries, it is important to keep the absorption time short during deep discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure the battery is fully charged.

For lithium batteries, the absorption time is preset to 2 hours.

Alternatively, a fixed output voltage can be selected.

Remote on/off switching
A remote-controlled on/off switch or relay contact can be connected to the two-pole connector. Alternatively, the H connection (right) of the two-pole connector can be wired to a battery positive terminal, or the L connection (left) of the two-pole connector can be connected to the battery negative terminal (or, for example, to the vehicle chassis).
All models are short-circuit proof and can be connected in parallel to increase the output current. Unlimited devices can be connected in parallel.

Overtemperature protection
At high ambient temperatures, the output current is reduced.

Protection class IP43
When the screw terminals on the device are installed facing downwards.

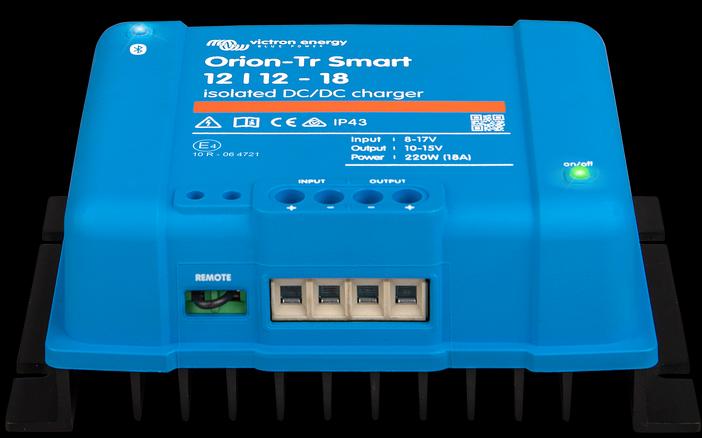

Screw terminals
No special tools are required for installation.

Input fuse (non-replaceable)

Scope of delivery:
1 x Battery Booster
1 x Operating manual.
