Swaytronic Automatic circuit breaker 250A
More than 10 pieces in stock at supplier
Nominal current2
Product details

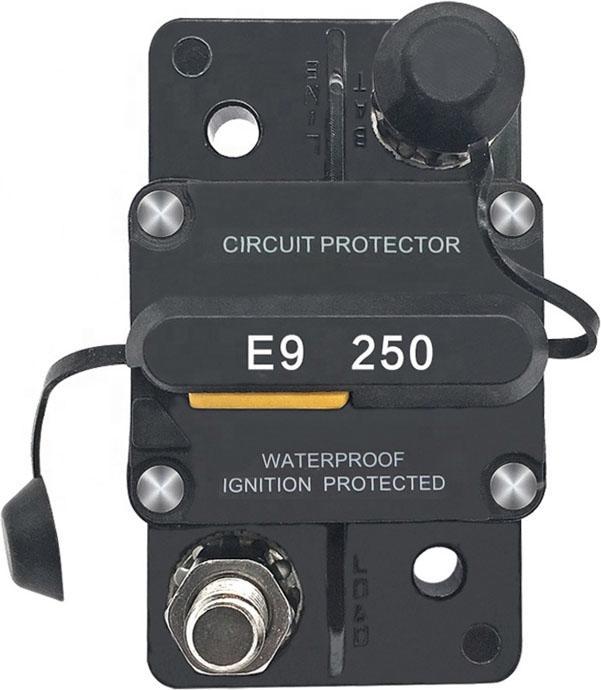

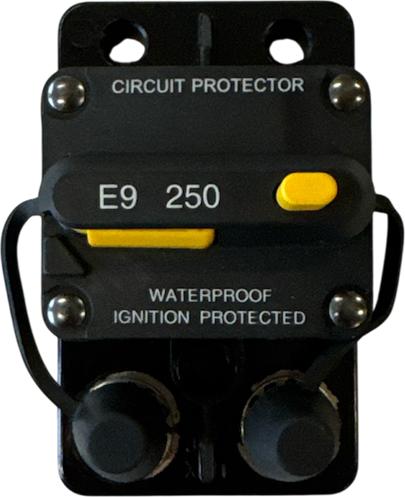

Swaytronic - Circuit Breaker 250A
With the thermal circuit breaker from Swaytronic, you have the option to protect your DC power applications. The circuit breaker features a manual reset function, so you don't need to keep a spare fuse on hand. If the circuit breaker trips, you can manually reset it. The circuit breaker is equipped with 3/8" connection terminals and is suitable for DC voltages ranging from 12V to 48V.
Housing: UL-certified 94V0 thermoplastic
Current rating: DC 250A
Regulatory separation: Interrupting capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077
Ignition protection type: SAE J1171; UL 1500
Durability: SAE J1625; SAE J553
Dielectric strength: UL 1077
Dust and waterproof: IP67
Shock, vibration, corrosion, humidity: Mil-STD-202
Delivery includes:
1x Circuit Breaker 250A.
Nominal voltage | 48 V |
Nominal current | 250 A |
Item number | 21642818 |
Manufacturer | Swaytronic |
Category | Charge controller |
Manufacturer no. | 7640370545126 |
Release date | 16.11.2022 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Thermoset |
Nominal voltage | 48 V |
Nominal current | 250 A |
Protection type (IP code) | IP67 |
Country of origin | Germany |
CO₂ emissions | 26.49 kg |
Climate contribution | CHF 0.63 |
Items per sales unit | 1x |
Length | 8.60 cm |
Width | 4.80 cm |
Height | 3.70 cm |
Weight | 400 g |
Length | 19.10 cm |
Width | 10.20 cm |
Height | 5.30 cm |
Weight | 151 g |
