Best Epever products in the Charge controller category
On this page you'll find a ranking of the best Epever products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Epever Tracer 3210AN MPPT charge controller
Charging current:30A, Max. PV open circuit voltage: 100V, Rated voltage:12V/24VDC
MPPT tracking efficiency over 99.5%, Maximum charge conversion efficiency up to 98%.
Supporting battery type: Lead-acid battery: AGM, GEL, Flooded, User; Lithium battery
Standard Modbus communication protocol with RS485 interface.
2. Epever Tracer 4210AN MPPT charge controller
Charging current:40A, Max. PV open circuit voltage: 100V, Rated voltage:12V/24VDC
MPPT tracking efficiency over 99.5%, Maximum charge conversion efficiency up to 98%.
Supporting battery type: Lead-acid battery: AGM, GEL, Flooded, User; Lithium battery
Standard Modbus communication protocol with RS485 interface.
3. Epever LS2024B
Low-cost solar charge controller with display connection. LS2024B The solar charge controller 12V/24V with load shedding maurelma B is the new generation of programmable solar charge controllers. All models are equipped with aluminium heat sinks that guarantee reliability at high temperatures. Connection to a remote meter or PC for real-time monitoring is possible via RS-485 interface to ensure user-defined setting and permanent control. The charge controller can only be parameterised via the interface. We therefore recommend using the MT50 display in addition. Technical data: Short designation LS2024B Nominal battery voltage 12V/24V Max. solar panel voltage 50V Solar panel voltage 50V Max. Battery voltage 34V Max. Battery current 20A Self-consumption 8.4mA(12V), 7.8mA(24V) Temperature compensation -3mV/℃/2V（25℃ ref） Battery type Basic setting Sealed (sealed batteries) Final charge voltage Equalisation charge Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2) Final charge voltage Main charge Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2) End of charge voltage trickle charge Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V (at 24V: x2) Load disconnection undervoltage Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V (at 24V: x2) Operating temperature -35℃~+55℃ Humidity ≤95% (non-condensing) Protection class IP30 Dimensions 159.6x81.4x48mm Connection 10mm^2 Weight 0.3kg Instructions For general information about batteries, see: About batteries For general information about charging batteries, see: About charging batteries For general information about solar technology, see: About solar technology.

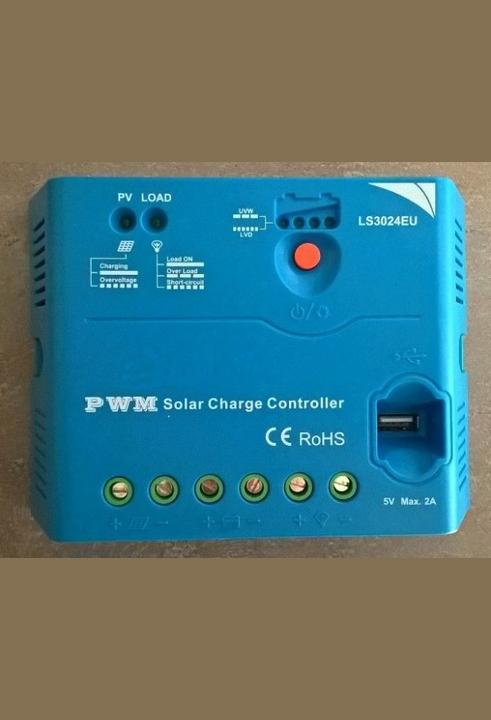

4. Epever LS3024EU
PWM solar charge controller LS3024EU 12 Volt / 24Volt, 30 Amp with USB The LS-EU economy solar charge controller is a new member of the LandStar family and ideal for small solar installation, especially household systems. The LS-EU series also has a + 5V / 2 A USB port to charge e.g. mobile phone, fans and other electronic devices. Features: Highly efficient PWM charging technology to increase battery life and improve solar yield Use of MOSFET as electronic switch, no mechanical switches or relays Intuitive LED indicators for battery voltage status 3 different battery types adjustable Gel, AGM or open lead acid.ure battery Manual control of consumer output possible Temperature compensation for optimal charging and discharging of the battery User-friendly, comfortable and conveniently adjustable Electronic protection functions: Overload protection Short-circuit protection Battery deep discharge protection Battery reverse polarity protection Technical data Battery voltage : 12V / 24V Maximum charging current: 30A Maximum current at load output: 30A Maximum solar open-circuit voltage: 50V Maximum charging current at USB port: 1.2A Weight: 0.29kg Dimensions: 148x106.8x33.7mm Cable terminals: 10mm^2 Operating temperature range: -35°C to +55°C Intrinsic current consumption: <= 7mA Protection class: IP20 Datasheet_English Manual_English General information about batteries can be found at:Worth knowing about batteries For general information about charging batteries, see: Worth knowing about charging batteries For general information about solar technology, see: Worth knowing about solar technology.
5. Epever LS3024B
The solar charge controller 12V/24V with load shedding maurelma B is the new generation of programmable solar charge controllers. All models are equipped with aluminium heat sinks that guarantee reliability at high temperatures. Connection to a remote meter or PC for real-time monitoring is possible via RS-485 interface to ensure user-defined setting and permanent control. The charge controller can only be parameterised via the interface. We therefore recommend using the MT50 display in addition. Technical data: Short designation LS3024B Nominal battery voltage 12V/24V Max. solar panel voltage 50V Solar panel voltage 50V Max. Battery voltage 34V Max. Battery current 30A Self-consumption 8.4mA(12V), 7.8mA(24V) Temperature compensation -3mV/℃/2V（25℃ ref） Battery type Basic setting Sealed (sealed batteries) Charge end voltage Equalisation charge Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2) Charge end voltage Main charge Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2) End of charge voltage trickle charge Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V (at 24V: x2) Load disconnection undervoltage Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V (at 24V: x2) Operating temperature -35℃~+55℃ Humidity ≤95% (non-condensing) Protection class IP30 Dimensions 200.6x102x57mm Connection 10mm^2 Weight 0.5kg Instructions For general information about batteries, see: About batteries For general information about charging batteries, see: About charging batteries For general information about solar technology, see: About solar technology.

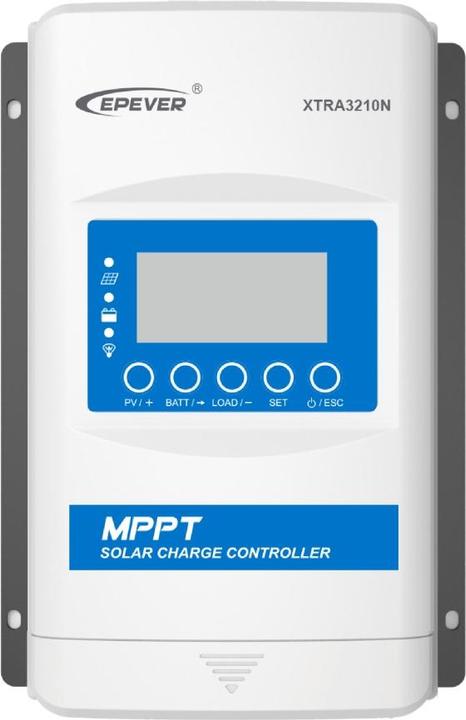

6. Epever XTRA 3210N
MPPT solar charge controller Tracer XTRA-N 3210N 12V/24V 30A 100V with display for display and parameterisation With the XTRA-N series, EP-Solar takes MPPT charge controller technology to a new level and sets new standards! The XTRA-N series has a new modular design, combines the advantages of previous generations in one device and has been further improved with the latest developments! An optimised MPPT algorithm, a bundle of protective functions, extended communication options and maximum efficiency are just a few highlights of these new charge controllers. Solar charge controller XTRA-N series Advanced MPPT technology High efficiency of no less than 98 % "ultra-fast" recording speed Precise detection of multiple maximum power points (MPP) Multifunctional LCD display Manual adjustability of battery types, load control, etc.negative grounding via (-) pole RS485 interface with MODBUS industry standard Fully programmable functions via PC software Automatic limitation of charging power and current Wide MPP operating voltage range Compatible with lead-acid and lithium-ion batteries.ure and lithium-ion batteries Battery temperature compensation function Real-time energy statistics Overheating reduction function Multiple charging modes Technical data Type XTRA 3210N XDS2 System voltage 12/24VDC Auto Max. Charge current 30A Max. Discharge current 30A Battery voltage range 8～32V Max. No-load voltage module 92V MPP voltage range (battery voltage +2V) ～72V Max. input power 390W/12V780V Input power 390W/12V780W/24V Self consumption <=12mA Voltage loss from discharge circuit <=0.23V Temperature Coefficient -3mV/°C/2V (Default) Ground Negative RS485 interface 5VDC/100mA USB interface 60S (Default) Working Temperature Range -25°C～+50°C Storage Temperature Range -20°C～+70°C Relative Humidity ≤95%, N.C. Protection class IP32 Dimensions 230×165×63mm Hole pattern 180×159mm Mounting holes D 5mm Terminal 16mm2 Weight 1.31kg Datasheet Instructions For general information about batteries, see: About batteries For general information about charging batteries, see: About charging batteries For general information about solar technology, see: About solar technology.
7. Epever Tracer AN Tracer6420AN
Affordable MPPT solar charge controller from EPever with 60A battery charging current and up to 200V input voltage. Technical data Nominal battery voltages 12V, 24V, 36V, 48V Battery voltage range 8V to 68V Battery types AGM (default)/GEL/liquid/Li-Ion Max. Battery charging current 60A Max. Solar input voltage 200VDC MPPT Voltage range battery voltage+2V to 144V Protection class IP20 Interface RS485 Grounding Negative Working temperature range -25°C to 60°C Dimensions LxWxH 340x236x119mm Weight 4.5kg.
8. Epever DualRacer DR1206N-DDS
MPPT Solar Charge Controller 12/24V 10A Dual 60V. The MPPT charge controller DuoRacer from EPSolar is specially designed to charge two batteries in a solar system at the same time. Charge controller EPSolar MPPT DuoRacer 10AHighly efficient, compact and reliable charge controller to use the full power of your solar modules.The MPPT charge controller DuoRacer by EPSolar was specially designed to charge two batteries in a solar system at the same time. It supports multiple battery types (sealed, gel, flooded, LiFePO4 and Li-NiCoMn). MPPT charge controller 10A- 12-24V system voltage- MPP voltage range up to 72V- Negative groundingCharge controller EPSolar MPPT DuoRacer 10ADer MPPT solar charge controller Duo Racer from EPSolar charges two batteries (BATT1 and BATT2) at the same time and is therefore ideal for travelling in the caravan and car. With the AES interface, the DuoRacer is able to supply surplus PV energy to consumers such as a refrigerator.BATT1 = Battery storage for supplying consumers in an off-grid system, household (supports sealed, gel, flooded, LiFePO4, Li-NiCoMn)BATT2 = Battery storage for supplying vehicles, boats (supports only lead-acid batteries).Features- MPPT technology with efficiency = 99.5%- Mature MPPT control algorithm to minimise MPP loss rate- Automatic limitation of charging power and charging current- LCD display - display and setting of parameters- RS485 interface, Modbus protocol- Compatible with LiFePo4 and Li-NiCoMn batteries- Automatic energy-saving mode if charging power is too low- Wide MPP operating voltage rangerange of MPP operating voltages- Numerous protection mechanisms (deep discharge, overcharge, overvoltage protection)- AES interface for maximum utilisation of the PV surplus.Technical data Manufacturer's designation DR1206N-DDS Nominal battery voltage BATT1 12/24VDC Nominal battery voltage BATT2 12/24VDC Auto Max. charging current 10A Battery voltage range 8.5V to 32V Max. module voltage (25°C) 46V Module Voltage (25°C) 46V Max. Max. module power with 12V battery 130Wp Max. module power with 24V battery 260Wp Max. module power with 24V battery 260Wp Max. module power with 24V battery 260Wp Max. module power with 24V battery 260Wp Efficiency 97.4% Efficiency at full power 97% Temperature compensation (lead-acid battery) -3mV/2V (standard) Earth Minus Dimensions 227.2×143×58.1mm Mounting holes 160×134mm , D5mm Connection BATT1 4mm^2 Connection BATT2 4mm^2 Weight 1.1kg Working temperature range -20°C to +45°C Storage temperature range -30°C to +80°C Humidity >=95% non-condensing Protection class IP33 Datasheet Instructions For general information about batteries, refer to:Worth knowing about batteries General information about charging batteries can be found under: Worth knowing about charging batteries General information about solar technology can be found under: Worth knowing about solar technology.
9. Epever Triron 2210N
.
10. Epever XTRA 4215N XDS2
