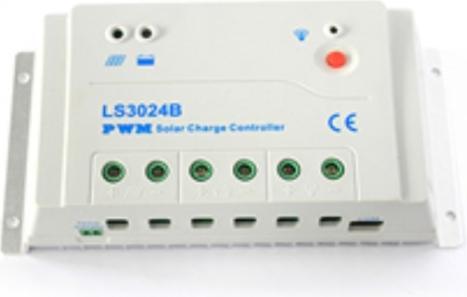

Epever LS3024B

The solar charge controller 12V/24V with load disconnect maurelma B is the new generation of programmable solar charge controllers. All models are equipped with aluminum heat sinks that ensure reliability at high temperatures. A connection to a remote measuring device or PC for real-time monitoring is possible via the RS-485 interface, allowing for custom settings and continuous control. The charge controller can only be configured through the interface. Therefore, we additionally recommend using the MT50 display.

Technical Data:
Short designation: LS3024B
Battery nominal voltage: 12V/24V
Max. solar panel voltage: 50V
Max. battery voltage: 34V
Max. battery current: 30A
Self-consumption: 8.4mA (12V), 7.8mA (24V)
Temperature compensation: -3mV/℃/2V (25℃ ref)
Default battery type setting: Sealed (sealed batteries)
End charging voltage equalization charge: Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2)
End charging voltage bulk charge: Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2)
End charging voltage float charge: Gel/Sealed/Flooded: 13.8V, User-defined: 9~17V (at 24V: x2)
Load disconnect under voltage: Gel/Sealed/Flooded: 11.1V, User-defined: 9~17V (at 24V: x2)
Operating temperature: -35℃~+55℃
Humidity: ≤95% (non-condensing)
Protection class: IP30
Dimensions: 200.6x102x57mm
Connection: 10mm²
Weight: 0.5kg

Instructions: General information about batteries can be found under Useful Information about Batteries. General information about charging batteries can be found under Useful Information about Charging Batteries. General information about solar technology can be found under Useful Information about Solar Technology.
