Epever LS3024EU

Delivered Tue, 8.7.
5 pieces in stock at third-party supplier
free shipping

Product details

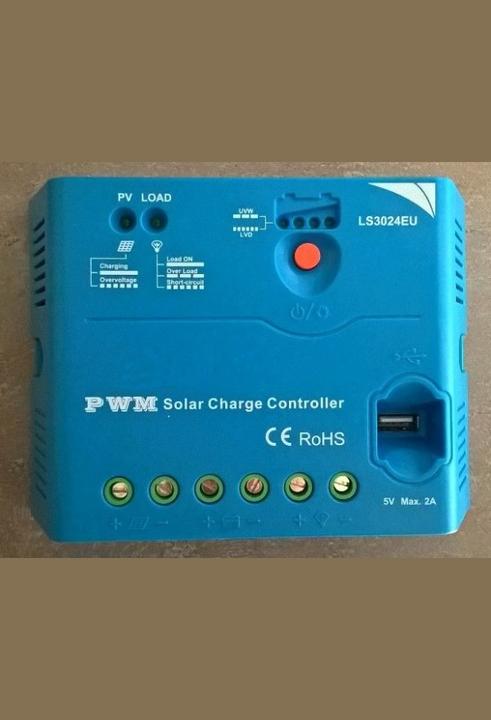

PWM Solar Charge Controller LS3024EU 12 Volt / 24 Volt, 30 Amperes with USB

The LS-EU budget solar charge controller is a new member of the LandStar family and is ideal for small solar systems, especially household systems. The LS-EU series also features a 5V / 2A USB port for charging devices such as mobile phones, fans, and other electronic gadgets.

Features:

  • Highly efficient PWM charging technology to extend battery life and improve solar yield
  • Use of MOSFET as an electronic switch, without mechanical switches or relays
  • Intuitive LED indicators for battery voltage status
  • Adjustable for 3 different battery types: Gel, AGM, or flooded lead-acid battery
  • Manual control of the consumer output is possible
  • Temperature compensation for optimal battery charging and discharging
  • User-friendly, comfortable, and easy to adjust

Electronic protection features:

  • Overload protection
  • Short circuit protection
  • Battery deep discharge protection
  • Battery reverse polarity protection

Technical specifications:

  • Battery voltage: 12V / 24V
  • Maximum charging current: 30A
  • Maximum current at load output: 30A
  • Maximum solar open-circuit voltage: 50V
  • Maximum charging current at USB port: 1.2A
  • Weight: 0.29kg
  • Dimensions: 148 x 106.8 x 33.7 mm
  • Cable terminals: 10 mm²
  • Operating temperature range: -35°C to +55°C
  • Self-consumption: <= 7mA
  • Protection class: IP20.

Key specifications

Nominal voltage
24 V
Nominal current
30 A
Safety function
OverloadReverse polarityShort circuitUndervoltage
Item number
35996185

General information

Manufacturer
Epever
Category
Charge controller
Release date
31.5.2023

Charge controller properties

Nominal voltage
24 V
Nominal current
30 A
Safety function
OverloadReverse polarityShort circuitUndervoltage
Protection type (IP code)
IP20

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
14.80 cm
Width
10.70 cm
Height
3.40 cm
Weight
290 g
