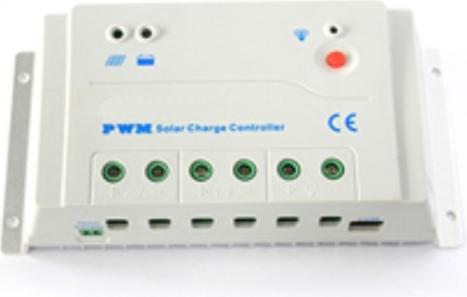

Epever LS2024B

Affordable solar charge controller with display connection. The solar charge controller 12V/24V with load disconnect maurelma B is the new generation of programmable solar charge controllers. All models are equipped with aluminum heat sinks, ensuring reliability at high temperatures. A connection to a remote measuring device or PC for real-time monitoring is possible via the RS-485 interface, allowing for custom settings and continuous control. The charge controller can only be configured through the interface. Therefore, we additionally recommend using the MT50 display.

Technical specifications:

• Short designation: LS2024B
• Battery nominal voltage: 12V/24V
• Max. solar panel voltage: 50V
• Max. battery voltage: 34V
• Max. battery current: 20A
• Self-consumption: 8.4mA (12V), 7.8mA (24V)
• Temperature compensation: -3mV/℃/2V (25℃ ref)
• Default battery type setting: Sealed (sealed batteries)
• Charge end voltage equalization charge: Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2)
• Charge end voltage bulk charge: Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V (at 24V: x2)
• Charge end voltage float charge: Gel/Sealed/Flooded: 13.8V, User-defined: 9~17V (at 24V: x2)
• Load disconnect under voltage: Gel/Sealed/Flooded: 11.1V, User-defined: 9~17V (at 24V: x2)
• Operating temperature: -35℃~+55℃
• Humidity: ≤95% (non-condensing)
• Protection class: IP30
• Dimensions: 159.6x81.4x48mm
• Connection: 10mm²
• Weight: 0.3kg.
