Best selling Cable trunkings from Niedax
On this page you’ll find a ranking of the best Cable trunkings from Niedax. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Niedax Connector
Niedax connector RV 60.250 F
Manufacturer: Niedax
Designation: Connector
Type: RV 60.250 F
Version: Longitudinal connector
Horizontal joint connector: No
Vertical joint connector: No
Connection type: Screw connector
Suitable for mesh cable tray: No
Suitable for cable ladder: No
Suitable for cable tray: Yes
Suitable for cable support system width: 250 mm
Suitable for cable support system height: 60 mm
Length: 246 mm
Suitable for functional integrity: Yes
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Hot-dip galvanised
Further details: Joint connector, one-piece, U-shaped, for cable trays, including hot-dip galvanised fixing accessories.
For cable tray: RL 60.250... RLU 60.250...
Dimensions (approx.) H x W: 49 x 246 mm
Material: Steel, hot-dip galvanised to DIN EN ISO 1461.
2. Niedax RESCD 150 S

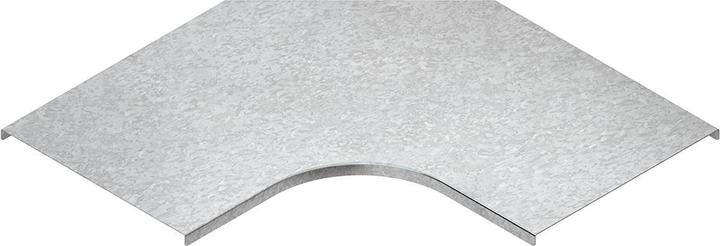

Niedax Cover for 90° Bend RESCD 150 S
Manufacturer: Niedax
Description: Cover for 90° Bend
Width: 155.5 mm
Type: RESCD 150 S
Angle: 90°
Direction Change: Horizontal
Suitable for Cable Trays: Yes
Suitable for Wire Mesh Cable Trays: No
Suitable for Cable Ladders: No
Mounting Type: Surface-mounted
Swivel: No
Suitable for Functional Integrity: No
Material: Steel
Material Quality: Other
Surface Protection: Hot-dip Galvanized
This cover is designed for CITO 90° bends without rotary locks and features a height-independent design. It is used in addition to cover a 90° bend that has been made with a corner extension piece. Dimensions (approximately): Width (inside): 155.5 mm. Material: Steel, hot-dip galvanized according to DIN EN 10346.
3. Niedax NIE KLAB 600 F end outlet plate B600mm f.v.w.pre-assembled accessories
Niedax KLAB 600 F end outlet plate B600mm.
Cable trunking
CHF129.–
Niedax NIE KLAB 600 F end outlet plate B600mm f.v.w.pre-assembled accessories
4. Niedax Hanging handle 500mm HU5050/500 **
Niedax Hanging Handle HU 5050/500
Manufacturer: Niedax
Designation: Hanging Handle
Type: HU 5050/500
Length: 505 mm
Profile width: 50 mm
Profile height: 50 mm
Design: U-profile
Load capacity: 4 kN
Suitable for functional maintenance: Yes
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Hot-dip galvanised
Weight: 1.65968 kg
Niedax Hanging Handle HU 5050/500 further details:
Hanging handle with a three-sided continuously perforated U-profile and a welded-on top plate, designed for outriggers for one-, two-, and three-sided installation. This design prevents deformation of the suspended support profile when installing outriggers. For static reasons, the suspended support spacer profile HDS 50.50 F with a hexagon head screw should be considered. If the bracket is attached to the suspended support profile on one side, it is preferable to align the closed side of the bracket with the profile web of the suspended support. For static reasons and to enable the protective cap to be fitted without issues, the bracket must be mounted at a distance of 50 mm (lower edge of bracket to end of hanger post) above the end of the hanger post.
For use in functional maintenance or for suspended ceilings with fire protection requirements, please observe additional regulations. VDE certified.
For outriggers: KTAL... KTAM... KTA...
For cantilevers: KTAS 100 - 400 (functional integrity/KFO)
For cantilevers: KTA 100 - 600 (functional integrity/MLAR)
Dimensions (approx.):
Top plate L x W x d: 140 x 80 x 5 mm
Fixing holes: 13 x 20 mm
Central distance: 100 mm
U-profile: 50 x 50 x 50 mm
Material thickness t: 2.5 mm
Three-sided profile perforation, single row: 12 x 30 mm
Central distance: 50 mm
Total length L: 505 mm
Material: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339858781.

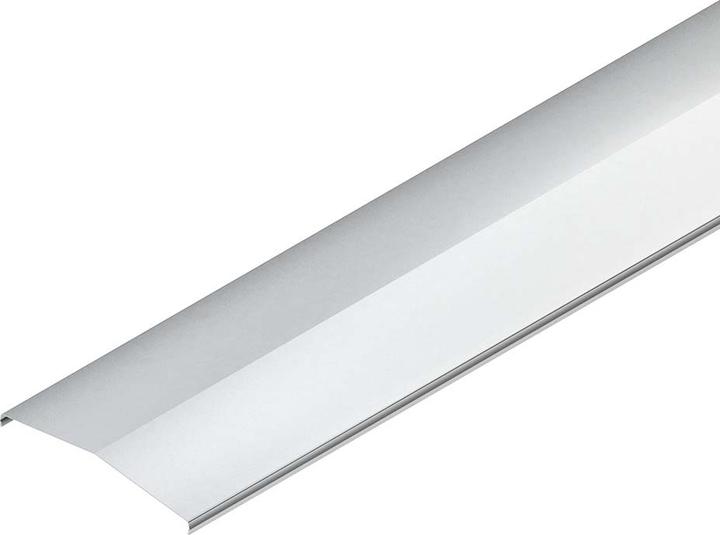

5. Niedax GRD 300/7.5° E3
The Niedax GRD 300/7.5° E3 is a high-quality cover for grid grates, specifically designed for cable protection and management applications. With a length of 3000 millimeters and a width of 300 millimeters, this cover provides optimal coverage and protection for cables and wires. Made from durable stainless steel (material designations 1.4301 and 1.4303), it ensures high resistance to corrosion and mechanical influences. Installation is straightforward through a simple snap-on mechanism, allowing for quick and easy setup. The cover comes without a lock, making it ideal for applications where quick access to cables is required. Made in Germany, the Niedax GRD 300/7.5° E3 stands for quality and durability.
6. Niedax Edge protection tape
The Niedax edge protection tape RKBA 5 is an effective solution for protecting cables from injuries caused by sharp edges, whether metal or plastic. Made from halogenated polyvinyl chloride (PVC), this protective tape offers high flexibility and durability. With a length of 10 meters and a width of 14.5 mm, it is versatile and suitable for various applications in personal hazard areas. The edge protection tape is designed for easy installation and provides a reliable barrier against potential dangers. It is suitable for a temperature range of -25 °C to 60 °C, making it ideal for use in different environments. The steel clamps provide additional hold and safety, making the product a valuable addition to any cable installation.
- Made from halogenated polyvinyl chloride (PVC) for high flexibility and durability
- Operating temperature range of -25 °C to 60 °C, suitable for various environments
- To be arranged in personal hazard areas to protect cables from injuries
- Easy to install with steel clamps for additional hold.

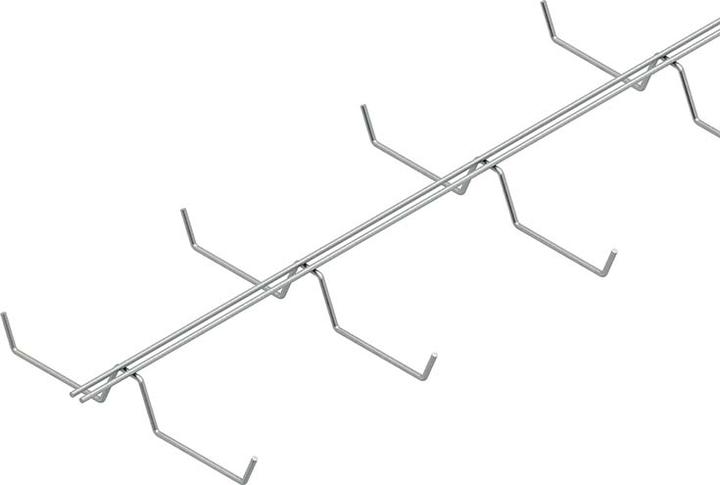

7. Niedax Ceiling support
Niedax Ceiling Bracket DT 50.200 DV
Manufacturer: Niedax
Description: Ceiling bracket 50x200x2000mm
Type: DT 50.200 DV
Profile shape: Other
Width: 200 mm
Height: 55 mm
Length: 2000 mm
Working length: 2000 mm
Wire diameter longitudinal side: 5 mm
Wire diameter transverse side: 4 mm
Usable cross-section: 2280 mm²
Integrated partition: No
Design: Without connector
Suitable for function maintenance: No
Material: Steel
Material quality: Other
Surface protection: Other
Weight: 0.45435 kg/m
Operating temperature: -20 to 120 °C
Safe working load according to IEC 61537 at support distance 0.5 m: 400 N/m
Safe working load according to IEC 61537 at support distance 1.0 m: 60 N/m
Niedax Ceiling Bracket DT 50.200 DV: Additional details
Ceiling bracket according to DIN EN IEC 61537, W-shaped, made of steel wires for suspended ceiling constructions and/or for direct attachment to the ceiling. A three-part universal connector GRV M6X20 V must be ordered separately. For use in ceilings with fire protection requirements, please observe additional regulations. For use in function maintenance, please observe additional regulations.
Dimensions (approx. external dimensions): Height H x Width B: 55 x 200 mm
Longitudinal wire diameter: 5 mm
Transverse wire diameter: 4 mm
Transverse wire spacing: 211 mm
Delivery length L: 2000 mm
Usable cross-section: 2280 mm²
Material: Steel, wire galvanized according to DIN EN 10244-2
EAN: 4013339116072.
8. Niedax GK lower part
Niedax GK lower part DKU 220-78T90 C
Manufacturer: Niedax
Designation: GK lower part 220x90x2000 mm
Type: DKU 220-78T90 C
Further details: Device trunking base, double symmetrical, with loops and rear fixing holes for flexible mounting on wall or wall bracket. It features two self-contacting aluminium separating profiles with cable entry openings that can be retrofitted, allowing for separate cable runs of the same size. Continuous loops accommodate separating profiles in the back, with visible surfaces electrostatically powder-coated in RAL colour according to the manufacturer's catalogue.
Device mounting in the cable runs is facilitated by a snap-in device box for installation programs without perforated panels, including six cable retaining clips GKF 78 per 2 m supply length. For equipotential bonding, two butt connectors GSVA are required per joint, which must be ordered separately.
VDE certified! When mounting, ensure that the loop openings point upwards. To achieve a tight fit of the cover, the cable retaining clips GKF must be inserted at intervals of 0.6 m - 0.7 m in the trunking base.
Dimensions (approx.):
Height H x Depth D: 220 x 90 mm
Cover openings: 78 mm and 78 mm
Pitch of cable runs: 110 mm and 110 mm
Three-row horizontal back perforation: 7 x 33 mm
Central hole spacing: 62.5 mm
Row spacing: 48 mm and 106 mm
Loop spacing grid dimension: 250 mm
Separating profile cable entry opening: 30 mm x 65 mm
Central spacing: 500 mm
Delivery length L: 2000 mm
Usable cross-section total: 17136 mm²
Usable cross-section upper cable run: 8484 mm²
Usable cross-section lower cable run: 8652 mm²
Colour: [customer specification required]
RAL: [customer specification required]
Material: Steel, strip galvanised according to DIN EN 10346
EAN: 4013339205035.
9. Niedax RTADV 150 F
Niedax cover for mounting T-piece RTADV 150 F
Manufacturer: Niedax
Designation: Cover for mounting T-piece with twist lock
Type: RTADV 150 F
Width: 154 mm
Suitable for cable tray: Yes
Suitable for cable ladder: No
Fastening type: Twist lock
Wide-span version: No
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised
Niedax cover for surface-mounted T-piece RTADV 150 F: Further details
Cover for mounting T-piece, with captive pre-assembled twist-lock fasteners in stainless steel, height-independent cover for cable tray mounting T-pieces. Due to external influences, such as wind loads, outdoor use is only possible with additional securing (self-tapping screws, steel band, etc.). RDRS 2 E3 twist locks can be used for additional requirements. VDE certified!
For cable tray attachment T-pieces: RTA ... F
Dimensions (approx. dimension) B (inside): 154 mm
Material: Steel, hot-dip galvanised in accordance with DIN EN ISO 1461
Material twist-lock catches: Stainless steel, material no. 1.4571.

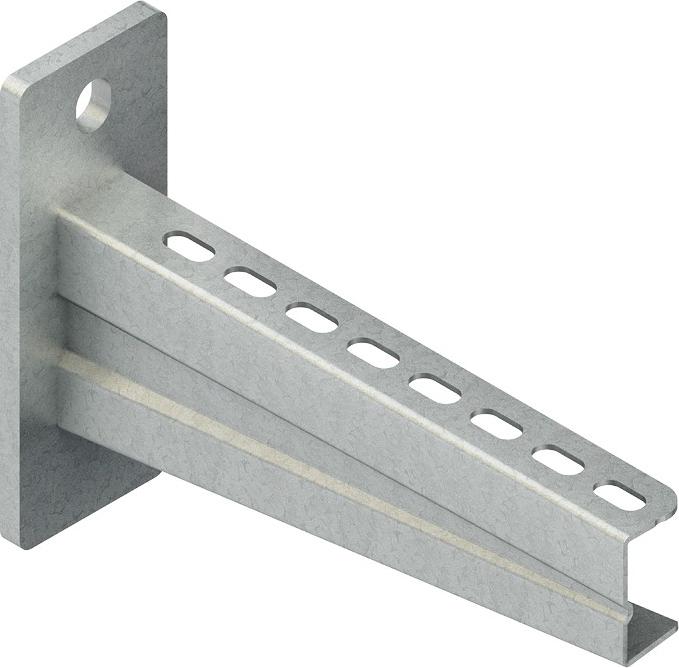

10. Niedax Wall bracket heavy KTAS200 ** 145x230mm hot-dip galvanised
Niedax wall bracket KTAS 200
Manufacturer: Niedax
Designation: Wall bracket
Type: KTAS 200
Length: 230 mm
Width: 28 mm
Height: 113 mm
Suitable for cable support system width: 50 to 200 mm
Design: Wall and support bracket
Angle: 90 degrees
Load capacity: 5 kN
Suitable for functional integrity: Yes
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised
Niedax wall bracket KTAS 200: further details
Suspended support bracket, heavy, for wall and suspended support bracket mounting. Please order required fixing accessories for mesh cable trays, cable trays/ladder, and wide span cable trays/ladder separately. The load-bearing capacity data is only valid with sufficient anchoring to the load-bearing substrate or with correct installation on suspended supports. For use in functional maintenance, please observe additional instructions!
Dimensions (approx. dimensions)
Support height: 113 mm
Support length: 230 mm
Load capacity at half length: 5 kN tested in the system
Material outrigger: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339188406.
Cable trunking
CHF19.– CHF82.60/1m
Niedax Wall bracket heavy KTAS200 ** 145x230mm hot-dip galvanised
Duct, 23 cm
