Niedax Wall bracket heavy KTAS200 ** 145x230mm hot-dip galvanised

Duct, 23 cm
CHF82.60/1m
Ratings
Delivered between Fri, 17.4. and Fri, 24.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Niedax wall bracket KTAS 200
Manufacturer: Niedax
Designation: Wall bracket
Type: KTAS 200
Length: 230 mm
Width: 28 mm
Height: 113 mm
Suitable for cable support system width: 50 to 200 mm
Design: Wall and support bracket
Angle: 90 degrees
Load capacity: 5 kN
Suitable for functional integrity: Yes
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised

Niedax wall bracket KTAS 200: further details
Suspended support bracket, heavy, for wall and suspended support bracket mounting. Please order required fixing accessories for mesh cable trays, cable trays/ladder, and wide span cable trays/ladder separately. The load-bearing capacity data is only valid with sufficient anchoring to the load-bearing substrate or with correct installation on suspended supports. For use in functional maintenance, please observe additional instructions!

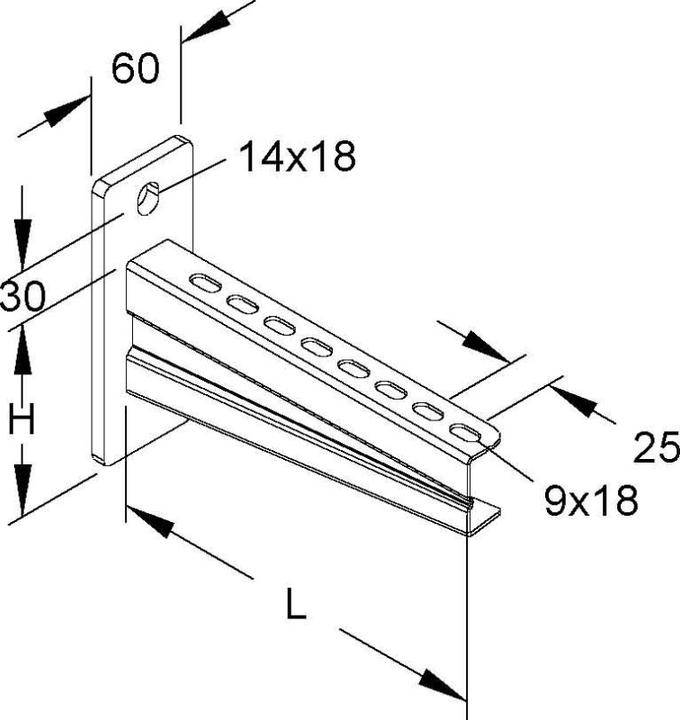

Dimensions (approx. dimensions)
Support height: 113 mm
Support length: 230 mm
Load capacity at half length: 5 kN tested in the system
Material outrigger: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339188406.

Key specifications

Exact colour description
Hot dip galvanized
Material
Hot-dip galvanised in accordance with DIN EN ISO 1461, Steel
Cable duct type
Duct
Height
113 mm
Width
2.80 cm

General information

Item number
22654513
Manufacturer
Niedax
Category
Cable trunking
Manufacturer no.
KTAS 200
Release date
13.10.2022
External links
Manufacturer's site (de)

Colour

Colour
Silver
Exact colour description
Hot dip galvanized

Material

Material group
Metal
Material
Hot-dip galvanised in accordance with DIN EN ISO 1461, Steel

Cable duct properties

Cable duct type
Duct

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
4.29 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
113 mm
Width
2.80 cm
Length
23 cm
Weight
1085 g

Package dimensions

Length
24.50 cm
Width
16.30 cm
Height
6 cm
Weight
1.05 kg
