Niedax Ceiling support

Duct, 200 cm
CHF16.43/1m
Ratings
Delivered between Thu, 9.4. and Fri, 10.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Niedax Ceiling Bracket DT 50.200 DV

Manufacturer: Niedax
Description: Ceiling bracket 50x200x2000mm
Type: DT 50.200 DV
Profile shape: Other
Width: 200 mm
Height: 55 mm
Length: 2000 mm
Working length: 2000 mm
Wire diameter longitudinal side: 5 mm
Wire diameter transverse side: 4 mm
Usable cross-section: 2280 mm²
Integrated partition: No
Design: Without connector
Suitable for function maintenance: No
Material: Steel
Material quality: Other
Surface protection: Other
Weight: 0.45435 kg/m
Operating temperature: -20 to 120 °C
Safe working load according to IEC 61537 at support distance 0.5 m: 400 N/m
Safe working load according to IEC 61537 at support distance 1.0 m: 60 N/m

Niedax Ceiling Bracket DT 50.200 DV: Additional details
Ceiling bracket according to DIN EN IEC 61537, W-shaped, made of steel wires for suspended ceiling constructions and/or for direct attachment to the ceiling. A three-part universal connector GRV M6X20 V must be ordered separately. For use in ceilings with fire protection requirements, please observe additional regulations. For use in function maintenance, please observe additional regulations.

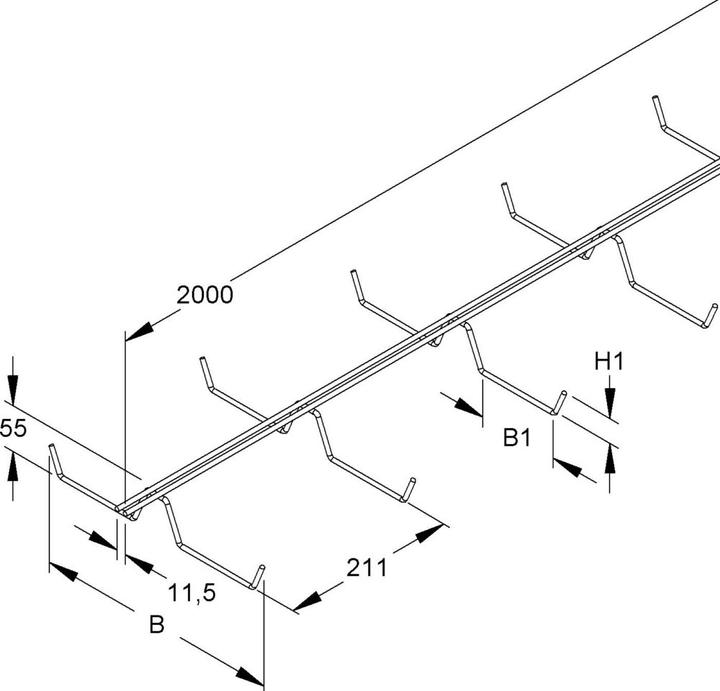

Dimensions (approx. external dimensions): Height H x Width B: 55 x 200 mm
Longitudinal wire diameter: 5 mm
Transverse wire diameter: 4 mm
Transverse wire spacing: 211 mm
Delivery length L: 2000 mm
Usable cross-section: 2280 mm²
Material: Steel, wire galvanized according to DIN EN 10244-2
EAN: 4013339116072.

Key specifications

Exact colour description
Galvanized
Material
Steel
Cable duct type
Duct
Version
Rigid
Height
55 mm
Width
20 cm

General information

Item number
33221553
Manufacturer
Niedax
Category
Cable trunking
Manufacturer no.
DT50.200DV
Release date
17.5.2023

Colour

Exact colour description
Galvanized

Material

Material group
Metal
Material
Steel

Cable duct properties

Cable duct type
Duct
Version
Rigid
Fastener
No closure

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
1.04 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
2 pcs.

Product dimensions

Height
55 mm
Width
20 cm
Diameter
5 mm
Length
200 cm
Weight
454.35 g
