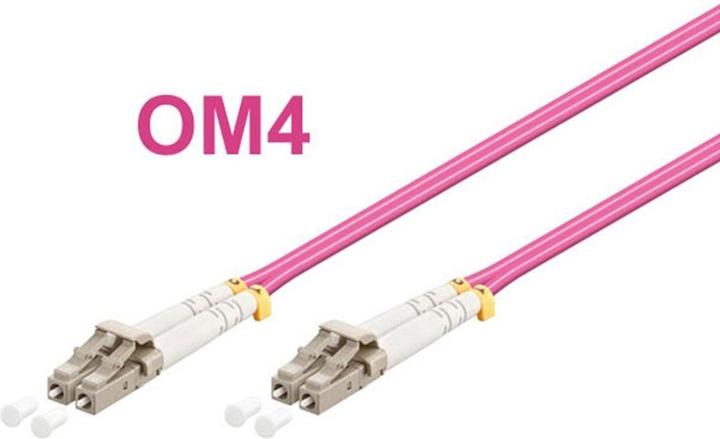

OEM Optical patch cable duplex LC-LC 50/125 MM 15m OM4

Optical Patch Cable Duplex LC-LC 50/125 MM OM4

An optical patch cable (jumper cable) is a standardized or custom connection cable that is terminated with optical connectors at both ends. Patch cables are used to connect devices within a distribution frame or to connect active components to an optical link that ends in the frame. Patch cables are typically duplex (2x fiber, 4x connectors), but simplex cables (1x fiber, 2x connectors) can also be provided for single-fiber xWDM applications upon request. The connectors E2000, SC, and LC are connected in a duplex configuration with a clip – this is detachable and allows for splitting the duplex patch cable into two simplex cables (not possible with the robust HEAVY DUPLEX variant). The specified patch cables represent only a small selection from the range. Additionally, we are capable of supplying patch cables with E2000, ST, SC, LC, FC, MTRJ, and VF-45 connectors.

Technical Specification:
Fiber Type: MM, OM4, 50/125
Connector: LC-LC
Polish Type: UPC-UPC
Color: Pink
Armoring: No
Sheath: LSZH
Diameter: 3mm
Length: 15m
Design: Duplex
Storage and Operating Temperature: -40 to +70°C.
