Best Schneider Electric products in the UPS accessories category
On this page you'll find a ranking of the best Schneider Electric products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Schneider Electric MTN6513-1202
Schneider Electric Power Supply 640mA MTN6513-1202
Manufacturer: Schneider Electric
Description: Power Supply 640mA SpaceLogic KNX
Type: MTN6513-1202
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 4
With LED Display: yes
Bus Voltage Bufferable: no
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 640 mA
Secondary Voltage: 30 V
Further Details:
KNX Power Supply 640mA, REG SpaceLogic KNX Power Supply 640mA.
Intended Use:
- Supply of KNX devices with bus voltage
- Supply of devices with DC voltage
- For mounting on DIN rails TH35 according to EN 60715.
The bus is connected via a bus connection terminal. The SpaceLogic KNX power supply generates the bus voltage for the KNX line. The power supply has two outputs: one KNX output with integrated choke and one DC 30 V output for additional devices. Two identical power supplies can be connected in parallel to double the output current. The power supply features a potential-free relay contact for operational and diagnostic notifications.
Features:
- The rated current can be distributed as needed.
- Reset button to turn off the power supply and reset bus devices.
- Short-circuit proof
- Overvoltage proof
- No-load proof
- For operation in systems with emergency power supply.
Technical Data:
Rated Voltage: 220-240 V AC
Mains Frequency: 50/60 Hz
Power Loss: max. 1.8 W
KNX Medium: TP256
Bus Output Voltage: 28-31 V DC SELV
Bus Output Current: 640 mA (all outputs)
DC 30 V.
Device Width: 4 TE (72 mm)
Contents: With bus connection terminal and cable cover.
EAN: 3606481902825.

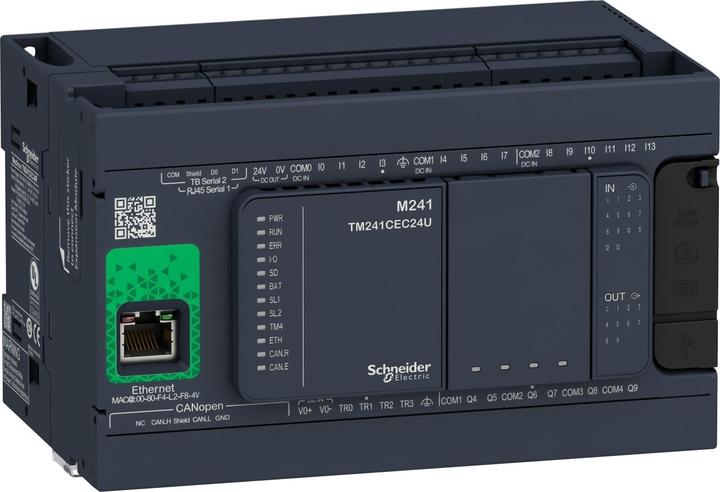

2. Schneider Electric CONTROLLER M241-24IO RELAY ETHERNET CAN
Number of Inputs/Outputs: 24
Manufacturer Series: Modicon M241
Number of Inputs: 14
Voltage Category: 100 - 240 V
Output Type: Relay
Number of Outputs: 10
Network Type: Ethernet, ModBus, Profibus DP, USB
Display Included: Yes
Communication Interface Type: Ethernet, RS232, RS485, USB
Program Memory: 128,000 Steps
Programmable Interface: Mini-USB
Width: 95 mm
Modicon M241 – Logic Controller. The Modicon M241 logic controller is designed for controlling simple motion control machines and offers class-leading communication with 5 integrated ports. It features state-of-the-art technical specifications and embedded CANopen for fieldbus architectures with up to 63 devices while reducing installation time and costs. Gain unlimited access to your machine via Ethernet – anywhere and anytime, and simplify maintenance with any mobile device through visualization pages developed directly in SoMachine and stored on the PLC web server. Logic Controller M241 with 5 ports: Ethernet, CANopen, 2 serial lines, USB port for programming. CPU for high processing power and cartridge expansions. Web and FTP server. Pulse output / high-speed counter. SD card. Safety function. Programming with SoMachineBasic software. All programming, visualization, and commissioning are done through a single intuitive tool. Additional modules for this controller include: Tesys SoLink motor starters, a wide range of analog and digital modules, Ethernet, and Profibus.
3. Schneider Electric Module Tm3-8 Analog Inputs
Manufacturer series: TM3 series
Number of inputs: 8
Input type: Current, voltage
For use with: Modicon M221, Modicon M241, Modicon M251
Voltage category: -10 to 10 V DC
Length: 90 mm
Width: 23.6 mm
Depth: 70 mm
Dimensions: 90 x 23.6 x 70 mm
Modicon TM3 analog input modules are designed for Modicon M221, M241, and M251 logic controllers. Versions with different numbers of analog inputs and options for voltage, current, or temperature inputs are available. The terminal block features screw or spring terminal connections.
4. Schneider Electric Differential current block 4p 63A 300mA
Differential current block 4p 63A 300mA 19016.
5. Schneider Electric Lead gel battery, 7.2 Ah MTN668990
The lead gel battery from Schneider Electric with model number MTN668990 is a reliable supply battery specifically designed for connection to the emergency power input of the 320 REG-K power supply. With a nominal voltage of 12 V and a capacity of 7.2 Ah, this battery provides a stable energy source for various applications. The lead-acid gel technology ensures high performance and longevity, making it ideal for use in emergency power supplies. The battery is compact and lightweight, facilitating installation and handling. It is also compatible with KNX systems, allowing for easy integration into existing systems. The lead gel battery is an excellent choice for anyone in need of a reliable and efficient energy source.
- Lead-acid gel technology for high performance
- Compatible with KNX systems for easy integration
- Designed for connection to emergency power inputs
- Compact design for easy installation and handling.
6. Schneider Electric VDIG118241BX0
The VDIG118241BX0 from Schneider Electric is a high-quality patch panel specifically designed for use with CAT 6A cables. It provides an efficient solution for organizing and managing network connections in a rack-mounted setup. With a height of 1U and a width of 490 mm, it is ideal for integration into standardized 19-inch racks. The product is made from robust metal and plastic, ensuring high durability and stability. Installation is straightforward and user-friendly, making it easy to set up in various environments. The patch panel supports S/UTP (STP) cable shielding, which enhances signal quality and reduces interference. Additionally, it meets the requirements of the REACH and RoHS directives, making it an environmentally friendly choice.
- Supports CAT 6A cable types for high network speeds
- Robust construction from metal and plastic for durability
- Easy installation in rack mounting for flexible applications
- Complies with REACH and RoHS directives for environmentally friendly use.

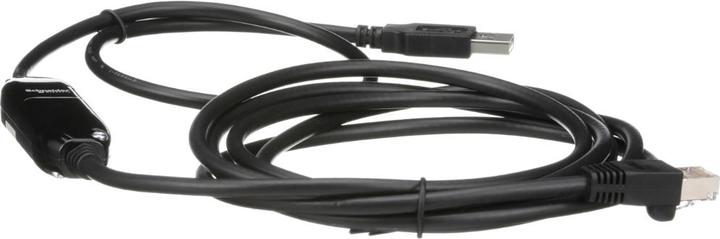

7. Schneider Electric Cable USB/RJ45, ATS22-for connection TCSMCNAM3M002P
The USB/RJ45 cable from Schneider Electric, model TCSMCNAM3M002P, is an essential accessory for the wireless remote controls of the Harmony eXLhoist series. It enables a reliable connection between a PC and the corresponding devices to ensure efficient control and monitoring. With a length of 2.5 meters, this cable provides ample flexibility for various applications. The product is manufactured in China and meets the requirements for accessories for uninterruptible power supplies (UPS). It is designed to ensure a stable and secure connection, making it a valuable addition to any system that relies on Harmony eXLhoist technology.
- Reliable connection for wireless remote controls of the Harmony eXLhoist series
- Length of 2.5 meters for flexible applications
- Designed for stable and secure data transmission.

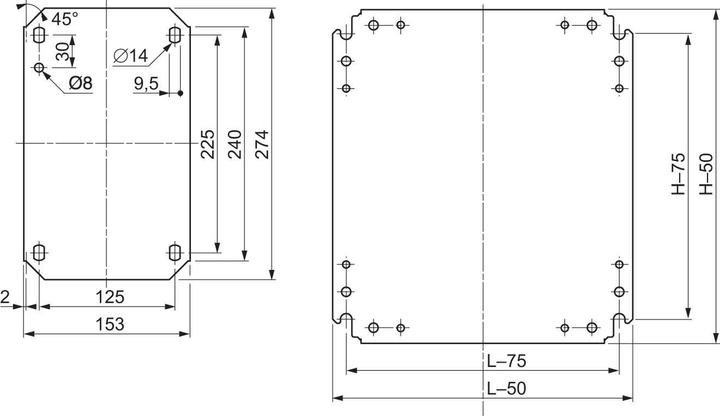

8. Schneider Electric Chassis plate for IP66 box,750X550X3mm
The chassis plate from Schneider Electric is a versatile and robust mounting plate specifically designed for use in various enclosures. With dimensions of 750 mm in height and 550 mm in width, it provides ample space for the installation of components and accessories. The plate is made of galvanized steel, which not only ensures high stability but also offers corrosion protection. This mounting plate is ideal for use in UPS systems and other applications where reliable and secure fastening is required. It allows for easy installation and can be used for both step slides and direct attachment to backplanes. With a maximum load capacity of 135 kg, it is suitable for demanding applications and provides a solid foundation for the installation of electrical components.
- Made of galvanized steel for increased stability and corrosion protection
- Maximum load capacity of 135 kg, suitable for demanding applications
- Universal mounting accessories, compatible with various enclosures
- Easy installation options, for both step slides and direct attachment.

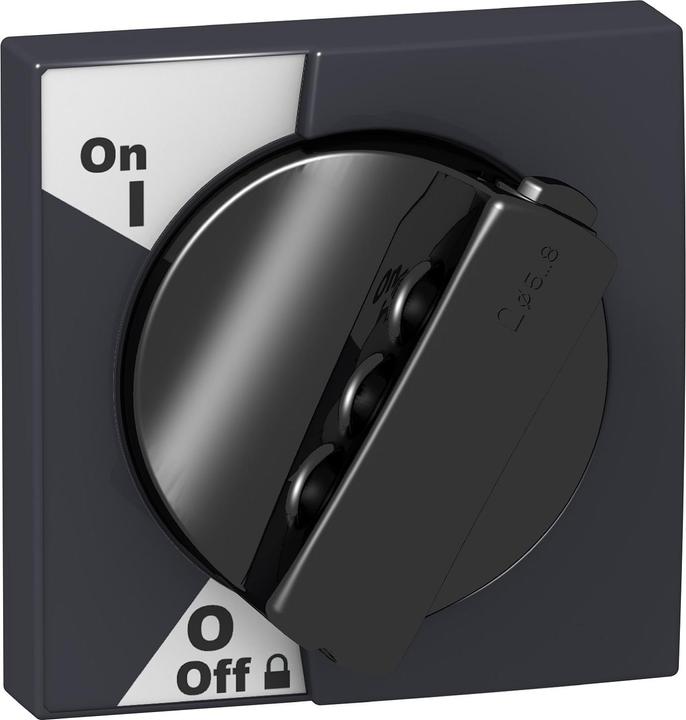

9. Schneider Electric Acti9 Rotary Handle black iC60
Accessory variant: Rotary handle
Range: Acti 9
Series: iC60
Rotary handle Acti9 for iC60. The rotary handle can be mounted on the front or side. The rotary handle protection has an IP55 protection rating. The control mechanism is mounted on the device, and the rotary handle is attached to the front or side of the housing. Suitable for C60, iSW, Vigi iC60.
10. Schneider Electric SE KNA-160ZJ4 Connection block 160A
Schneider connection block KNA-160ZJ4.
