Schneider Electric MTN6513-1202

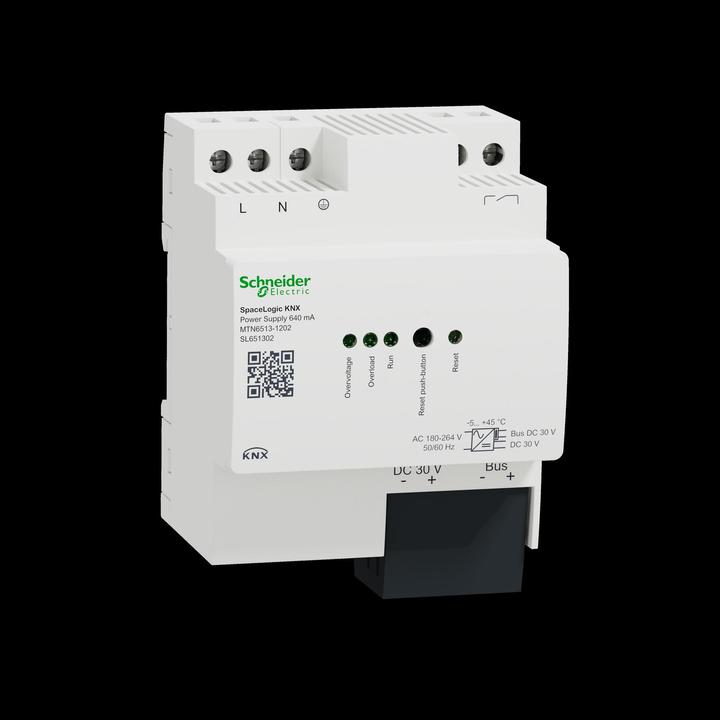

Schneider Electric Power Supply 640mA MTN6513-1202

Manufacturer: Schneider Electric
Description: Power Supply 640mA SpaceLogic KNX
Type: MTN6513-1202
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 4
With LED Display: yes
Bus Voltage Bufferable: no
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 640 mA
Secondary Voltage: 30 V

Further Details:
KNX Power Supply 640mA, REG SpaceLogic KNX Power Supply 640mA.
Intended Use:

• Supply of KNX devices with bus voltage
• Supply of devices with DC voltage

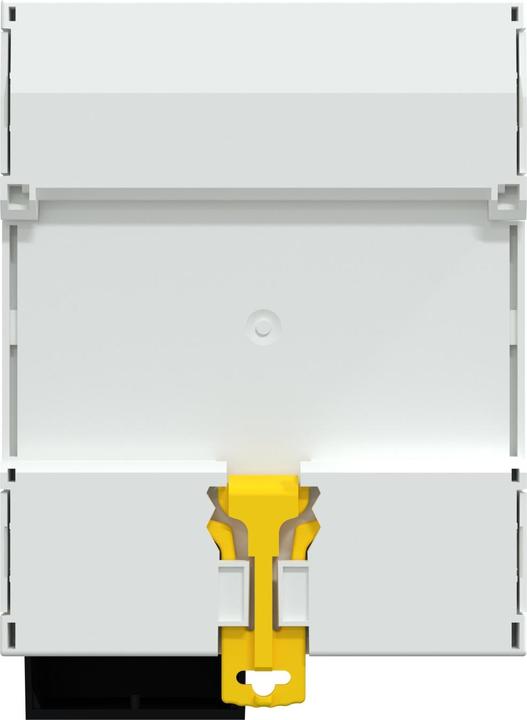

• For mounting on DIN rails TH35 according to EN 60715.

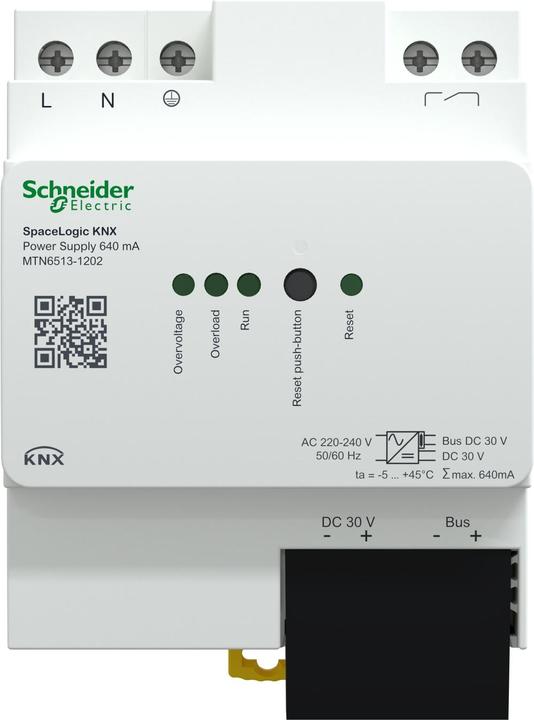

The bus is connected via a bus connection terminal. The SpaceLogic KNX power supply generates the bus voltage for the KNX line. The power supply has two outputs: one KNX output with integrated choke and one DC 30 V output for additional devices. Two identical power supplies can be connected in parallel to double the output current. The power supply features a potential-free relay contact for operational and diagnostic notifications.

Features:

• The rated current can be distributed as needed.
• Reset button to turn off the power supply and reset bus devices.
• Short-circuit proof
• Overvoltage proof
• No-load proof
• For operation in systems with emergency power supply.

Technical Data:
Rated Voltage: 220-240 V AC
Mains Frequency: 50/60 Hz
Power Loss: max. 1.8 W
KNX Medium: TP256
Bus Output Voltage: 28-31 V DC SELV
Bus Output Current: 640 mA (all outputs)
DC 30 V.
Device Width: 4 TE (72 mm)

Contents: With bus connection terminal and cable cover.
EAN: 3606481902825.
