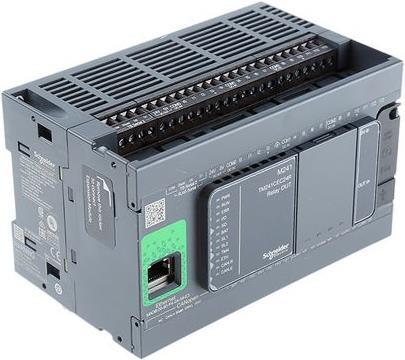

Schneider Electric CONTROLLER M241-24IO RELAY ETHERNET CAN

Number of Inputs/Outputs: 24
Manufacturer Series: Modicon M241
Number of Inputs: 14
Voltage Category: 100 - 240 V
Output Type: Relay
Number of Outputs: 10
Network Type: Ethernet, ModBus, Profibus DP, USB
Display Included: Yes
Communication Interface Type: Ethernet, RS232, RS485, USB
Program Memory: 128,000 Steps
Programmable Interface: Mini-USB
Width: 95 mm

Modicon M241 – Logic Controller. The Modicon M241 logic controller is designed for controlling simple motion control machines and offers class-leading communication with 5 integrated ports. It features state-of-the-art technical specifications and embedded CANopen for fieldbus architectures with up to 63 devices while reducing installation time and costs. Gain unlimited access to your machine via Ethernet – anywhere and anytime, and simplify maintenance with any mobile device through visualization pages developed directly in SoMachine and stored on the PLC web server. Logic Controller M241 with 5 ports: Ethernet, CANopen, 2 serial lines, USB port for programming. CPU for high processing power and cartridge expansions. Web and FTP server. Pulse output / high-speed counter. SD card. Safety function. Programming with SoMachineBasic software. All programming, visualization, and commissioning are done through a single intuitive tool. Additional modules for this controller include: Tesys SoLink motor starters, a wide range of analog and digital modules, Ethernet, and Profibus.
