Best Theben products in the Timers category
On this page you'll find a ranking of the best Theben products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Theben Timer 26 CH
The mechanical timer Timer 26 from Theben is a reliable solution for the automated control of electrical devices indoors. It allows for precise programming of switching times through a daily schedule that can be set in 15-minute intervals. With a total of 96 switching segments, the timer offers high flexibility in planning on and off times. Installation is straightforward via a power outlet, making setup easy. The switching status indicator informs users about the current status of the timer, ensuring they always have an overview. This timer is ideal for anyone looking for a simple and effective way to operate their devices on a schedule.
- Mechanical operation for easy use
- 96 programmable switching segments for flexible time planning
- Daily program with 15-minute intervals
- Switching status indicator for clear status information.
2. Theben Elpa 8
Staircase light timer, electromechanical. 4-wire with connection for floor lighting. 3-wire connection without floor lighting (no longer permitted for new installations). Can be switched on and off. No quiescent current consumption. Toggle switch for continuous light. Maximum reliability thanks to synchronous motor drive. Simple time setting and direct reading of the delay time on an absolute scale. Precision mechanics and therefore exact switching time. Very high resistance to interference.
3. Theben TR 612 top3
Theben Digital Timer TR 612 top3
Manufacturer: Theben
Description: Digital Timer
Type: TR 612 top3
Mounting Type: DIN Rail
Number of Channels: 2
Supply Voltage: 230 V
Type of Supply Voltage: AC
Frequency of Supply Voltage: 50-60 Hz
Backup Time in Years: 10
Accuracy per Day: 0.25 s
Display Text Guidance: Yes
External Programming: Yes
With Memory Card: No
60 Min Program: Yes
24 H Program: Yes
Weekly Program: Yes
Yearly Program: No
Holiday Program: Yes
Pulse Program: No
Cycle Program: No
Astro Program: No
Random Program: No
Operating Hour Counter: Yes
Network Synchronized: No
Quartz Controlled: Yes
Radio Controlled: No
Radio Controlled (DCF77): No
GPS: No
Contact Type: Changeover (NO/NC)
Number of Contacts: 2
Output Signal: Other
Shortest Switching Time Channel 1: 1 min
Shortest Switching Time Channel 2: 1 min
Number of Memory Slots: 56
Automatic Summer/Winter Time Change: Yes
Suitable for Manual Operation: Yes
External Button Input: No
Switching Preselection: Yes
Rated Switching Current at 250 V AC: 16 A
Max. Switching Power LED: 600 W
Potential-Free Switching Contact: Yes
Protection Class (IP): IP20
Width in Division Units: 2
Width: 35 mm
Height: 90 mm
Depth: 60 mm

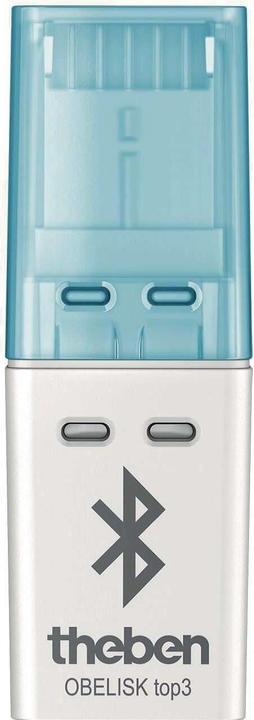

Additional Details: Digital timer for DIN rail, 2 channels, weekly program, width 2 TE, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum manipulation security, timer programs can only be transferred from the app to the timer when the Bluetooth OBELISK top3 is plugged into the timer, 100% compatible with top2, 600 Watt LED power, 800 Ampere/200 microseconds inrush current, 0.4 Watt standby power, DuoFix terminal blocks, backup time and programmed summer/winter time change, OBELISK interface for PC programming.

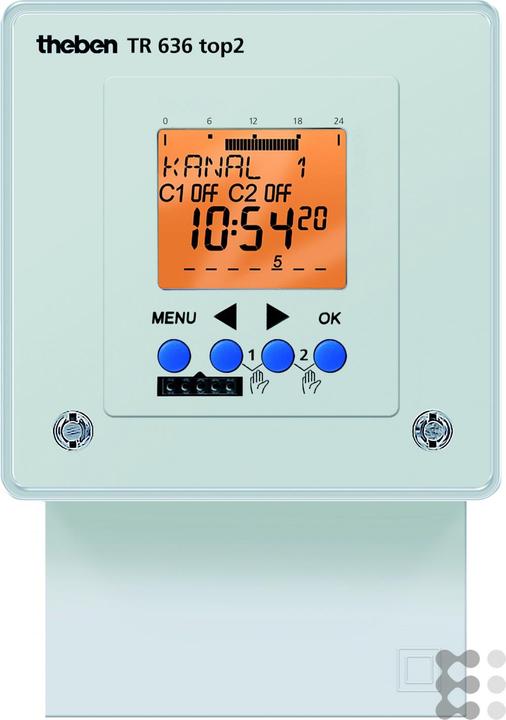

4. Theben TR 636 top2
The Theben TR 636 top2 is a digital timer designed for a variety of applications. It features a user-friendly text-based interface and a backlit display that simplifies programming and usage. With a wall-mounted installation type and a compact front frame of 72x72 mm, it is ideal for use in various environments. The timer enables precise control of electrical devices through its extensive programming options, including daily and weekly programs as well as special functions like holiday and pulse programs. With a battery life of up to 10 years and automatic summer/winter time adjustment, it ensures reliable and low-maintenance operation. The TR 636 top2 offers flexibility and adaptability for individual needs with 84 memory slots and the option for pre-switching.
- Two channels for independent control of devices
- 84 memory slots for individual programming
- Automatic summer/winter time adjustment
- Random programs to simulate presence
- Text-based interface for easy handling.
5. Theben LUNA 121 top3 RC AL
Theben twilight switch LUNA 121 top3 RC AL
Manufacturer: Theben
Designation: Twilight switch with surface-mounted light sensor
Type: LUNA 121 top3 RC AL
Rated voltage: 230 V
Rated frequency: 50-60 Hz
Max. lamp load: 3600 W
Incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. fluorescent lamp load (parallel compensated): 3600 W
Fluorescent lamp load (parallel compensated): 1200 VA
Max. switching current (cos phi: 0.0 Hz)
Max. switching current (cos phi: 0.6): 10 A
Rated switching current: 16 A
Brightness value setting range: 1-99,000 lx
With programmable night shut-off: Yes
Pushbutton input: Yes
Max. cable length light sensor: 100 m
Protection class light sensor: II
Light sensor mounting type: Wall-mounted
Mounting type: DIN rail
Width in pitch units: 2
Installation depth: 69.2 mm
Protection class (IP): IP20
Protection class (IP), light sensor: IP55
Digital twilight switch/light controller with integrated timer, 1 channel, weekly program, separate surface-mounted light sensor (IP 55) included, DCF or GPS radio control with external antenna possible, 1-99,000 lx, external input, 3 special programs with yearly function, width 2 TE, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum manipulation security, time switch programs can only be transmitted from the app to the clock if the Bluetooth OBELISK top3 is in the clock, 600 watts LED power, 800 amps/200 microseconds inrush current, low stand-by power, hour meter, DuoFix plug-in terminals, power reserve and programmed summer/winter time changeover, OBELISK interface for PC programming.
Supplied with: Theben twilight switch with surface-mounted light sensor LUNA 121 top3 RC AL, packaging unit: 1 piece.
6. Theben ELPA 1
Theben staircase time switch ELPA 1
Manufacturer: Theben
Designation: Staircase time switch 1S, 0.5-20 min
Type: ELPA 1
Function: Electronic with multifunction
Mounting type: DIN rail
Width in pitch units: 1
Installation depth: 60 mm
Number of contacts as NO contacts: 1
Control voltage 1: 220-240 V
Control voltage type 1: AC
Frequency of control voltage 1: 50-60 Hz
Control voltage 2: 8-240 V
Control voltage type 2: AC/DC
Frequency of control voltage 2: 50-60 Hz
Rated switching current: 16 A
Max. switching current (cos phi: 0.6): 16 A
Release delay: 0.5-20 min
Push-button glow lamp current: 150 mA
Circuit type: 3- and 4-wire circuit
Switch-off pre-warning: Flickering
Current surge function selectable: Yes
Post-switching: Can be switched on + continuous light + time extension
Supply voltage: 220-240 V
Supply voltage type: AC
Max. bulb load: 3600 W
Incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. fluorescent lamp load (parallel compensated): 1200 VA
Theben staircase lighting timer switch ELPA 1 features a row-mounted design with 10 functions, a width of 1 TE, switchable options, and a switch-off pre-warner (DIN 18015-2). It has a long-time range of 60 min, supports 3- and 4-wire connections, and includes a push-button input with electronic overload protection. An additional push-button input is galvanically isolated for intercom systems AC/DC 8-240 V. It also features an LED display.
7. Theben TR 030 top3 UP
The digital timer TR 030 top3 UP from Theben is an advanced solution for the timed control of electrical devices. It is designed for flush mounting and offers a weekly program that allows for flexible adjustments to individual schedules. Programming can be conveniently done via an app, ensuring user-friendly operation. The timer supports secure transmission of time control programs through the optional Bluetooth Low Energy interface OBELISK top3, which provides maximum tamper protection. This feature ensures that programs can only be transmitted when the Bluetooth adapter is plugged into the timer. With a maximum LED power of 600 watts and an inrush current of up to 800 amperes, the timer is versatile and suitable for both indoor and outdoor applications. The integrated power reserve and automatic switching to summer and winter time provide additional convenience.
- App programming for easy handling
- Maximum tamper protection through Bluetooth OBELISK top3
- Compatible with smart home systems like Apple Home and Google Assistant
- Random generator for added security
- Energy efficient with only 0.4 watts standby power.
8. Theben Time switch
The digital timer from Theben is a reliable device for the automated control of electrical consumers. It is ideally suited for use in residential and commercial spaces to turn lights, heating systems, or other electrical devices on or off at specific times. With a compact design intended for mounting on a DIN rail, the timer can be easily integrated into existing installations. Programming is done via a user-friendly 7-day segment program, allowing for flexible adjustments to individual needs. The timer offers a backup power reserve of up to three days, ensuring reliable operation even during power outages. The shortest switching time is two hours, enabling precise control of connected devices.
- 7-day segment program for flexible time control
- Shortest switching time of 2 hours
- Backup power reserve of 3 days for reliable operation
- DIN rail mounting for easy installation.
9. Theben TR 622 top2 24V
Supply voltage: 12 to 24 V
Time unit: days, hours, minutes, seconds
Number of channels: 2
Type: Digital
Contact arrangement: 2-pole changeover switch
Switching distance: 1 s
Height: 90.1 mm
Depth: 69.2 mm
Memory capacity: 84
Battery life: 10 years
Weekly timer - TR622 Top 2. The TR622 Top 2 digital timer features weekly programming. It includes 2 channels and 2 external inputs, allowing for connectable sensors (external selector switch, sequence timer) and connectable switches (permanent ON/OFF switching). It has DuoFix spring terminals for 2 conductors each and provides text-oriented user guidance on the display. The timer comes with a preset date and time and is fully functional without a mains connection.
It offers 84 memory locations and an interface for the OBELISK top2 memory card (PC programming), which is included in the scope of delivery. There are 2 usable switching programs, with options for copying and saving programs. The power reserve lasts for 10 years (lithium battery).
The timer features zero-crossing switching for relay-friendly switching and high lamp loads (not for 24 V devices), ON/OFF switching times, pulse programming, cycle programming, and switching preselection. It also allows for permanent ON/OFF switching, timer countdown, and has an integrated operating hours counter with a reset option.
There is a service function for monitoring maintenance intervals and holiday programs. The display has backlighting (which can be switched off) and a PIN code for security. The timer automatically changes between summer and winter time, which can be deactivated. Date control options for Europe, the USA, and other countries are already stored, with options for custom date control or changeover of set dates available.
10. Theben SUL 188 g
The Theben SUL 188 g is an analog timer designed for rail mounting. It offers a backup time of three days and allows for easy programming via a 24-hour segment program. With a minimum switching time of 30 minutes, this model is ideal for applications requiring precise control of electrical devices. The timer is intended for mounting on a DIN rail and features a robust construction that meets the demands of daily use. The SUL 188 g is a reliable solution for automating lighting and other electrical devices in residential and commercial spaces.
- Easy programming via 24-hour segment program
- Robust construction for daily use
- Suitable for mounting on DIN rails.
