Theben TR 622 top3

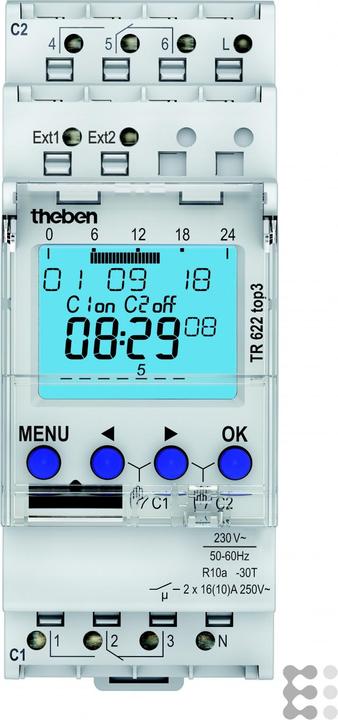

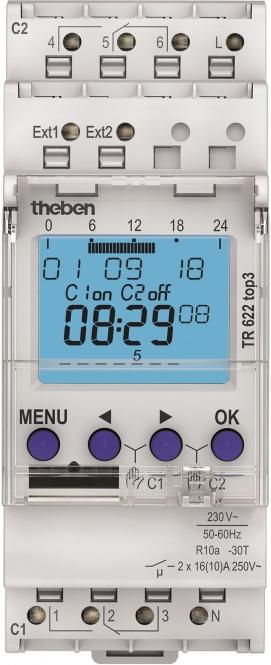

Theben Digital Timer TR 622 top3

Manufacturer: Theben
Description: Digital Timer Weekly Program 2K
Type: TR 622 top3
Mounting Type: DIN Rail
Number of Channels: 2
Supply Voltage: 230 V
Type of Supply Voltage: AC
Frequency of Supply Voltage: 50-60 Hz
Battery Backup in Years: 10
Accuracy per Day: 0.25 s
Text Display: Yes
External Programming: Yes
With Memory Card: Yes
60 min Program: Yes
24 h Program: Yes
Weekly Program: Yes
Annual Program: No
Holiday Program: Yes
Pulse Program: Yes
Cycle Program: Yes
Astro Program: No
Random Program: Yes
Operating Hour Counter: Yes
Quartz Controlled: Yes
Radio Controlled: No
Radio Controlled (DCF77): No
GPS: No
Contact Type: Changeover (NO/NC)
Number of Contacts: 2
Output Signal: Other
Shortest Switching Time Channel 1: 0.016 min
Shortest Switching Time Channel 2: 0.016 min
Number of Memory Slots: 84
Automatic Daylight Saving Time Changeover: Yes
Suitable for Manual Operation: Yes
External Button Input: Yes
Switching Preselection: Yes
Rated Switching Current at 250 V AC: 16 A
Max. Switching Power LED: 600 W
Potential-Free Switching Contact: Yes
Protection Class (IP): IP20
Width in Division Units: 2

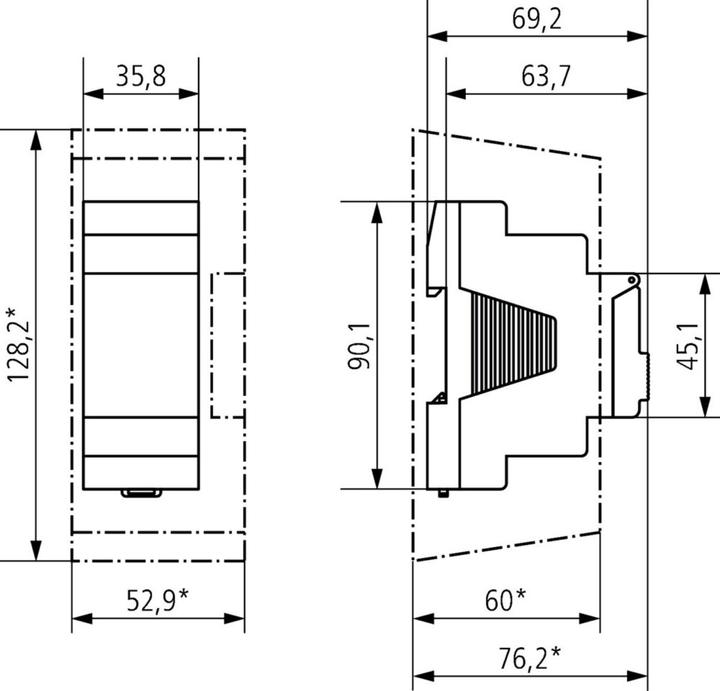

Width: 35 mm
Height: 90 mm
Depth: 60 mm

Additional Details: Digital timer for DIN rail, 2 channels, weekly program, 2 external inputs, 3 special programs, channel switching and channel locking, width 2 TE, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum tamper-proof security, timer programs can only be transferred from the app to the timer when the Bluetooth OBELISK top3 is inserted into the timer, 100% compatible with top2, 600 Watt LED power, 800 Ampere/200 microseconds inrush current, 0.4 Watt standby power, DuoFix terminal blocks, battery backup and programmed daylight saving time changeover, OBELISK interface for PC programming.
