Best Savöx products in the RC servos category
On this page you'll find a ranking of the best Savöx products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

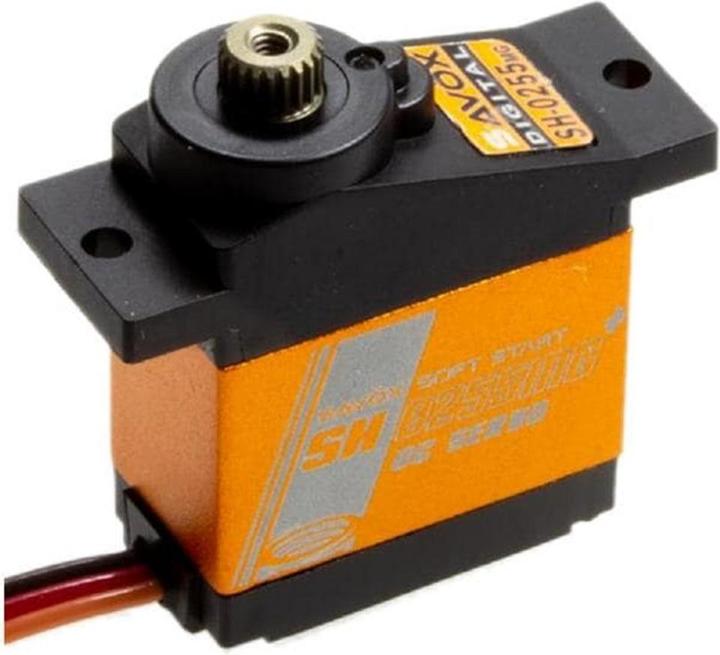

1. Savöx Micro Servo SH-0255MG+ Digital, Metal Gear, 3.9 kg
The Savox SH-0255MG Plus micro, metal-gear, digital servo has plenty of torque to match a much larger standard size servo and outperform other competitive micro-size servos. "Plus" series servos feature soft start and Sanwa SSR compatibility.

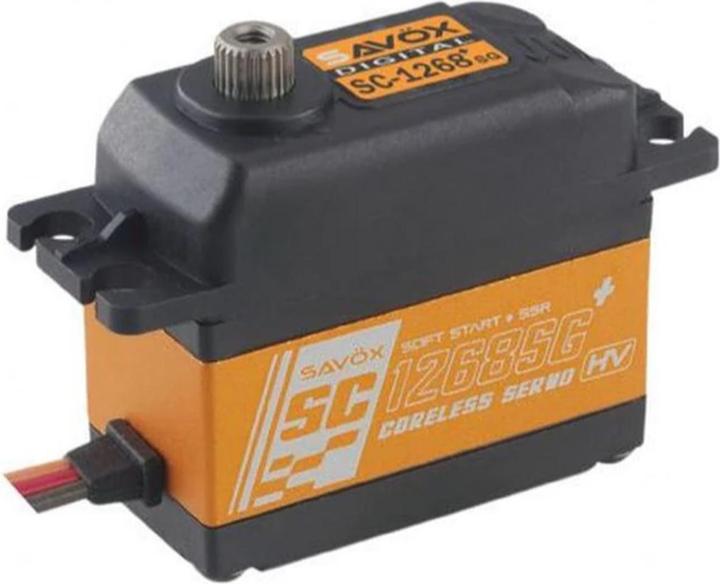

2. Savöx Standard Servo SC-1268SG+ 25 kg Digital HV
The SC-1268SG+ is a powerful standard-sized servo that is well-suited for use as a steering or throttle servo in buggies or truggies. Of course, it can also be used in airplanes when a durable, impact-resistant servo is required, such as for tow couplings or landing gear. Another option is its application as a swashplate servo for scale helicopters up to the 700 class. The new + version of the well-known SC-1268SG+ servo differs only minimally in appearance and technology from its predecessor. A soft start feature, which slowly moves the servo to its starting position when powered on, and the Sanwa SSR mode are highlights of the + version. The technical specifications of the servo leave nothing to be desired: 0.11/0.10 sec/60 degrees and 25/30 kg*cm at 7.4/8.4 volts, with a control frequency of up to 333 Hz and a center pulse of 1520 µs. Like all HV servos from Savöx, the SC-1268SG+ can naturally be operated with up to 8.4 V.

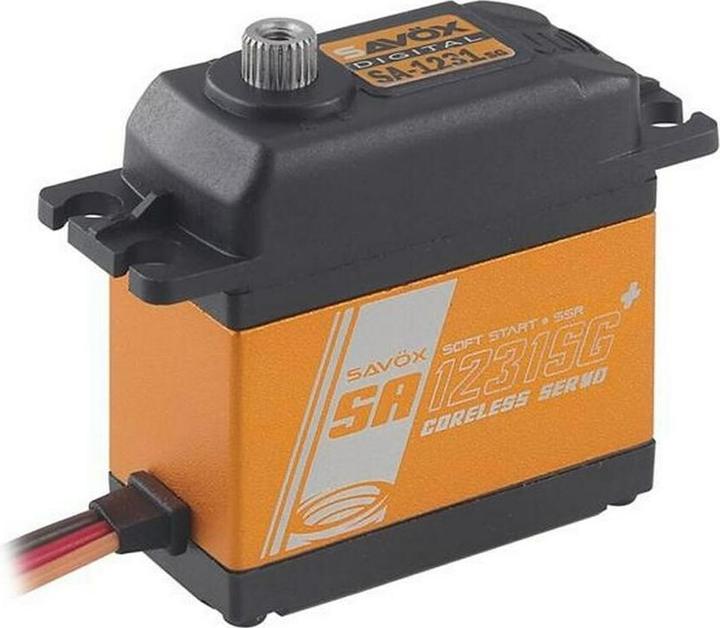

3. Savöx Standard servo SA-1231SG+ Digital, 32 kg, 0.14 s
The Savöx Standard Servo SA-1231SG+ is a highly advanced digital servo designed for precise control applications in remote-controlled models. With a maximum torque of 32 kg at 6.0 V and a response speed of 0.14 s, this servo delivers outstanding performance suitable for demanding applications. The servo is equipped with a robust steel gear, ensuring durability and reliability. Digital technology allows for higher angle resolution and faster regulation of the servo position compared to traditional analog servos. Additionally, the servo is programmable, enabling customization of the neutral point and speed. Weighing 79 g and featuring compact dimensions, it is ideal for various RC applications where precision and performance are critical.
- Maximum torque of 32 kg at 6.0 V and 28 kg at 4.8 V
- Response speed of 0.14 s at 6.0 V and 0.18 s at 4.8 V
- Robust steel gear for increased durability
- Double ball-bearing for improved performance
- Programmable functions for individual adjustments.

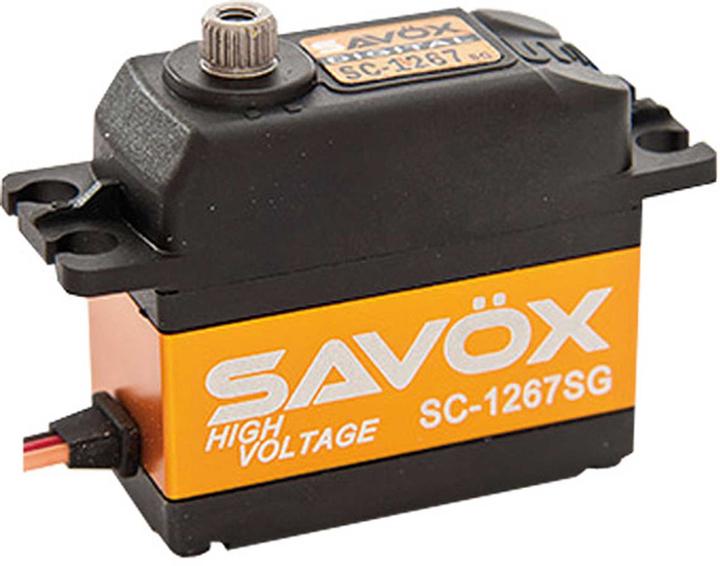

4. Savöx SC-1267SG Servo
The Savöx SC-1267SG Servo is a state-of-the-art digital HV standard servo designed for a wide range of applications in remote control technology. With a robust steel gear and a compact design, this servo offers both reliability and performance. It is equipped with a coreless motor that ensures high efficiency and a fast response time. The double ball-bearing construction provides improved stability and durability, while the operating voltage of 6 to 7.4 V allows for flexible use in various models. The combination of a maximum torque of up to 20 kg and a response speed of 0.095 s at 7.4 V makes this servo an excellent choice for demanding applications where precision and speed are crucial.
- Maximum torque of 20 kg at 7.4 V
- Fast response speed of 0.095 s at 7.4 V
- Double ball-bearing construction for increased stability
- Coreless motor for improved efficiency
- Robust steel gear for durability.
5. Savöx SC-1256TG Servo
The servos from Savöx are manufactured with the highest precision and are suitable for every application in model building due to their various sizes. The servos are highly durable, of excellent quality, and can fully impress in competitive use.
6. Savöx Low Profile Servo SC-1251MG+ Digital, Metal Gear, 9 kg
The SC-1251+ is a fast low-profile servo that is well-suited for use in RC cars. Of course, it can also be used in fixed-wing models where there is limited installation depth and a fast servo is required. Another option is its application as a swashplate servo in helicopters up to the 550 class.
The new + version of the well-known SC-1251MG servo has minimal visual and technical differences from its predecessor. A soft start feature that slowly moves the servo to the starting position upon activation and the Sanwa SSR mode are distinguishing characteristics of the + version.
Features:
- Response time S2/60° (sec): 0.09
- Response time S1/60° (sec): 0.10
- Width (mm): 20.2
- Height (mm): 25.4
- Voltage range: 4.8V-6V
- Length (mm): 40.8
- Weight (g): 44.5
- Torque S1 (kg*cm): 7
- Torque S2 (kg*cm): 9
- Control frequency: Up to 333Hz, 1520us center pulse
- High voltage capable up to 8.4V: No
- Voltage 1 (Volt): 4.8
- Recommended application: Helicopter, airplane, car
- Classification: Low Profile
- Ball bearings (number): 2
- Voltage 2 (Volt): 6.0
- Motor type: Coreless motor
- Gear type: Metal
- Housing type: Semi-metal
- Output teeth (number): 25.

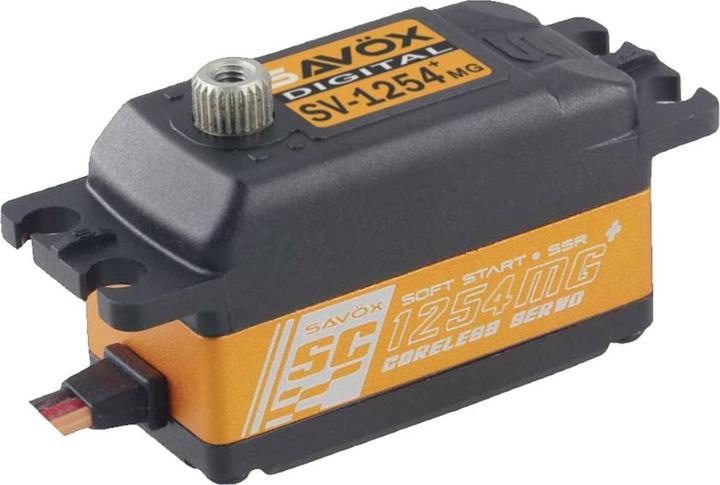

7. Savöx Servo SV-1254MG+
The SV-1254MG+ is a powerful low-profile servo that is well-suited for use in fixed-wing models. Of course, it can also be used in RC cars. Another option is its application as a swashplate servo for scale helicopters up to the 700 class. The new + version of the well-known SV-1254MG+ servo differs only minimally in appearance and technology from its predecessor. A soft start feature, which slowly moves the servo to the starting position upon activation, and the Sanwa SSR mode are distinguishing features of the + version. The technical specifications of the servo leave nothing to be desired: 0.085/0.075 sec/60 degrees and 15/18 kg*cm at 7.4/8.4 volts, control frequency up to 333 Hz, center pulse 1520 us. Like all HV servos from Savöx, the SV-1254MG+ can naturally be operated with up to 8.4 V! Package includes: Servo with servo horn and mounting screws.

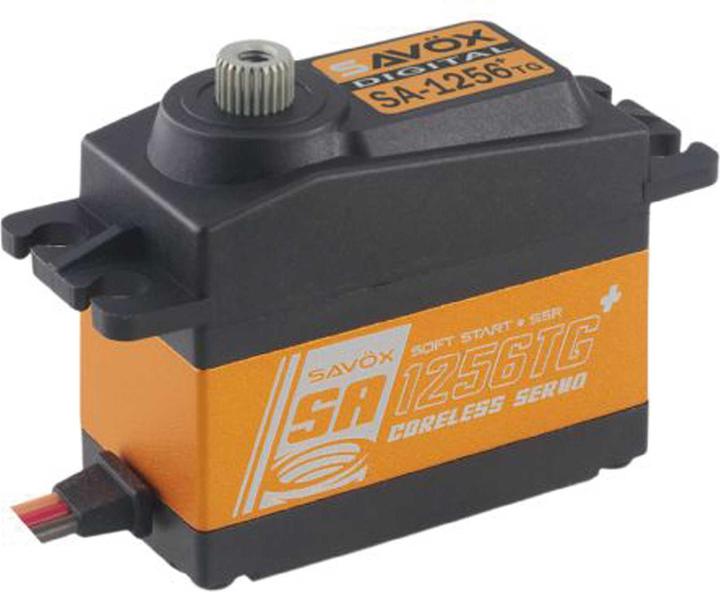

8. Savöx Servo SA-1256TG+
The SA-1256TG+ is a powerful standard-sized servo that is well-suited for use in fixed-wing models. Of course, it can also be used in RC cars. Another option is its application as a swashplate servo for scale helicopters up to the 700 class. The new + version of the well-known SA-1256TG servo has only minimal visual and technical differences from its predecessor. A soft start feature, which gradually moves the servo to its starting position when powered on, and the Sanwa SSR mode distinguish the + version. The SA version of the 1256TG servo is specifically designed for use in fixed-wing models. The "A" in SA stands for Aircraft, meaning airplane. The gear and software are optimized for this application, and the low-play titanium gear is extremely robust and reliable. The software has also been adjusted to optimize the holding power around the neutral position. Reinforced servo arms included in the package are specifically designed for fixed-wing models. Included in the package: fiberglass-reinforced plastic servo arms 1 x single arm 12 - 18 mm / 1 x single arm 15 - 28 mm / 1 x single arm 23 - 38 mm / 1 x double arm 23 - 38 mm.
9. Savöx Standard Servo SH-1290MG+ Digital 5 kg, 0.05 s
The Savöx SH-1290MG+ is a highly advanced digital standard servo designed for a wide range of applications in remote control technology. With an impressive torque of 5 kg/cm and a fast response time of just 0.05 seconds, this servo offers precise control and high performance. The use of metal gears ensures improved durability and reliability, while the dual ball-bearing construction enhances the efficiency and lifespan of the servo. The SH-1290MG+ is ideal for model-building enthusiasts who value quality and performance. It is equipped with a brushed DC motor that allows for smooth and powerful movement. This servo is an excellent choice for various RC applications, from cars to airplanes.
- Torque of 5 kg/cm for high performance
- Fast response time of 0.05 seconds
- Metal gears for improved durability
- Dual ball-bearing construction for increased efficiency.

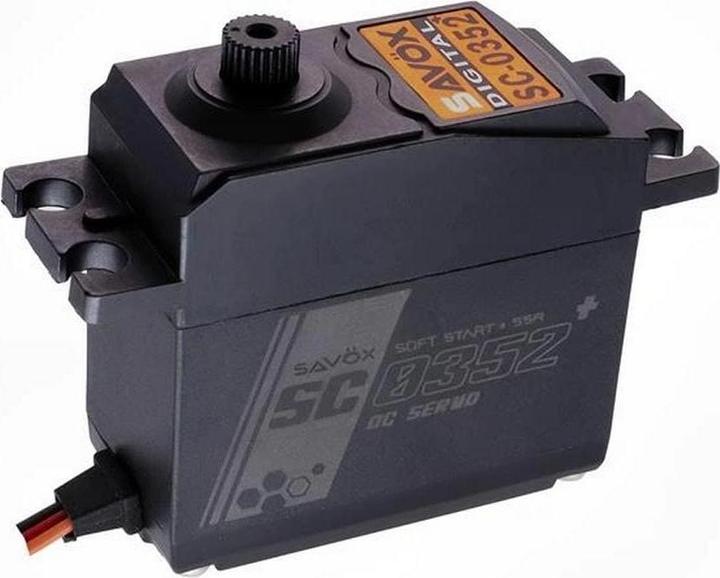

10. Savöx Servo SC-0352+ Digital
Brushless standard servo with metal gearbox
- Double ball bearing support for precision and gear support
- Quiet and smooth gearbox made of industrial plastic
- Torque at 4.8 V: 4.2 kg
- Torque at 6 V: 6.5 kg
- Speed: at 4.8 V: 0.14 sec / 60 degrees
- Speed at 6 V: 0.11 sec / 60 degrees.
