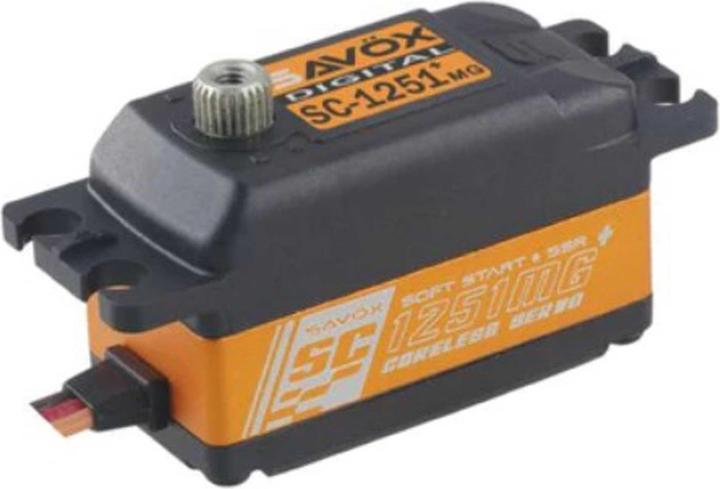

Savöx Low Profile Servo SC-1251MG+ Digital, Metal Gear, 9 kg

The SC-1251+ is a fast low-profile servo that is well-suited for use in RC cars. Of course, it can also be used in fixed-wing models where there is limited installation depth and a fast servo is required. Another option is its application as a swashplate servo in helicopters up to the 550 class.

The new + version of the well-known SC-1251MG servo has minimal visual and technical differences from its predecessor. A soft start feature that slowly moves the servo to the starting position upon activation and the Sanwa SSR mode are distinguishing characteristics of the + version.

Features:

• Response time S2/60° (sec): 0.09
• Response time S1/60° (sec): 0.10

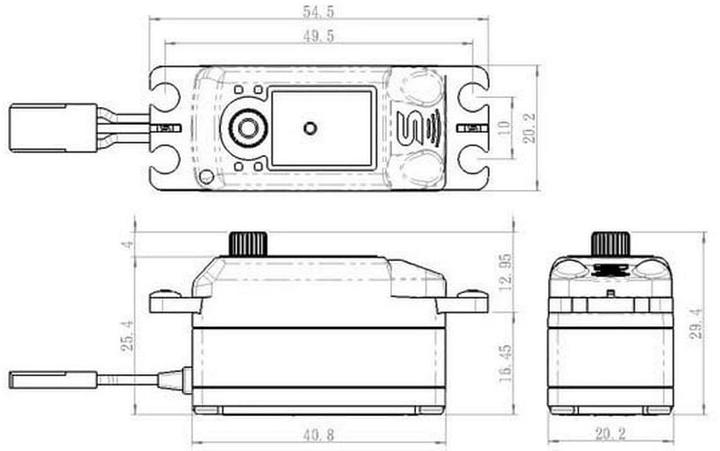

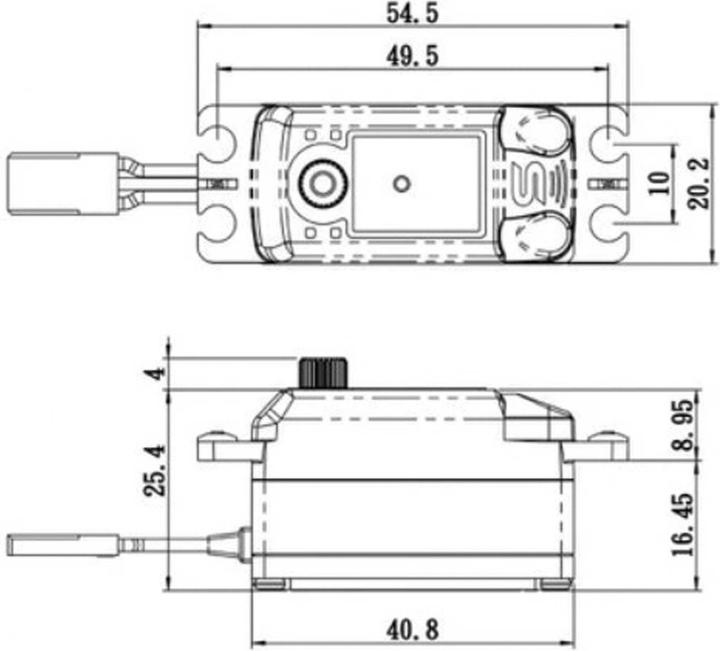

• Width (mm): 20.2
• Height (mm): 25.4
• Voltage range: 4.8V-6V
• Length (mm): 40.8
• Weight (g): 44.5
• Torque S1 (kg*cm): 7
• Torque S2 (kg*cm): 9
• Control frequency: Up to 333Hz, 1520us center pulse
• High voltage capable up to 8.4V: No
• Voltage 1 (Volt): 4.8
• Recommended application: Helicopter, airplane, car
• Classification: Low Profile
• Ball bearings (number): 2
• Voltage 2 (Volt): 6.0
• Motor type: Coreless motor

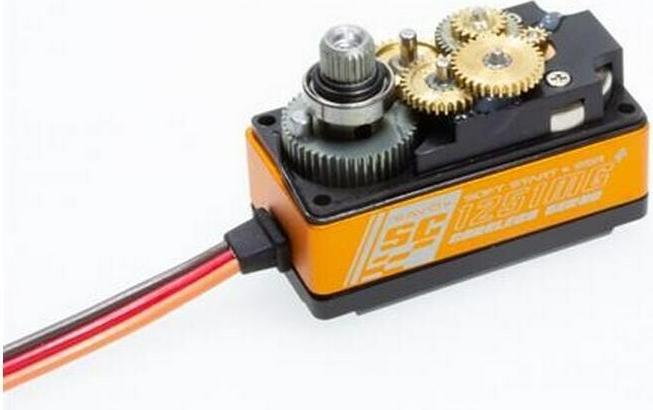

• Gear type: Metal
• Housing type: Semi-metal
• Output teeth (number): 25.
