Savöx Mini Servo SW-0250MG+, 5.0 kg Digital, Waterproof

Ratings
BrandMore from Savöx
Delivered tomorrow
Only 1 piece in stock
Free shipping starting at 50.–

Product details

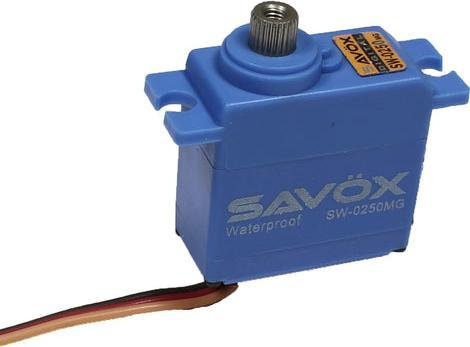

The SW-0250MG+ is a powerful, waterproof, and highly reliable servo. Its special dimensions make it ideal as an upgrade servo for RTF cars.

The new + version of the well-known SW-0250MG+ servo differs visually and technically only slightly from its predecessor. A soft start feature, which slowly moves the servo to the starting position upon activation, and the Sanwa SSR mode are distinguishing features of the + version.

The SW-0250MG+ is protected according to IP67, making it perfect for environments where water may be present.

The technical specifications speak for themselves: 0.14 sec/60 degrees and 5 kg*cm at 6.0 volts. The robust metal gear ensures durability even under tough conditions.

Features:

  • Response time S1/60° (sec): 0.14

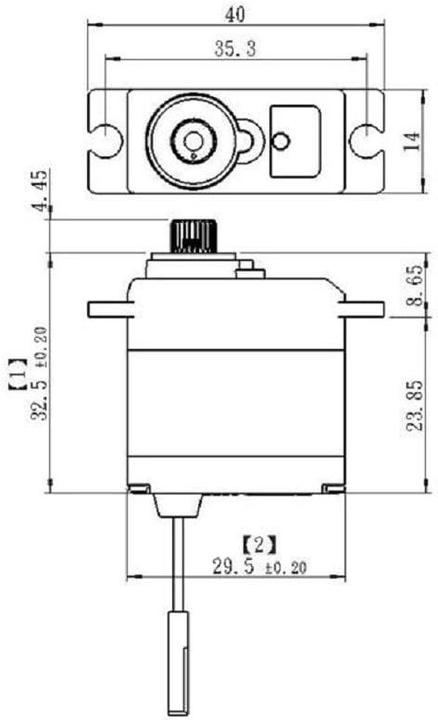

  • Width (mm): 14
  • Weight (g): 25
  • Length (mm): 29.5
  • Height (mm): 32.5
  • Voltage range: 4.8V-6V
  • Torque S1 (kg*cm): 5
  • Control frequency: Up to 333Hz, 1520us neutral pulse
  • High voltage capable up to 8.4V: No
  • Motor type: Brushed motor
  • Recommended applications: Helicopter, airplane, car, boat
  • Housing type: Plastic
  • Ball bearings (number): 2
  • Voltage 1 (Volt): 6.0
  • Gear type: Metal
  • Output teeth (number): 25
  • Classification: Midi.

Key specifications

servotype
Mini servo
Servo Technology
Digital
moment of force
5 kgf·cm
Servo speed
0.14 s

General information

Item number
25298564
Manufacturer
Savöx
Category
RC servos
Manufacturer No.
SW-0250MG+
Release date
24.4.2023
Sales rank in Category RC servos
3 of 1232

Colour

Colour
Blue

Material

Material group
Metal, Plastic
Material
Metal

Target group

Warning label toy
Warning: Not suitable for children under 3 years. Choking hazard due to small parts that can be swallowed.

RC servo properties

servotype
Mini servo
Servo Technology
Digital
moment of force
5 kgf·cm
Servo speed
0.14 s
Engine type
Electric motor
Bearing type
Ball bearing, Double ball bearing

Voluntary climate contribution

CO₂ emissions
4.93 kg
Climate contribution
CHF 0.12

Scope of delivery

Scope of delivery
Servo

Product dimensions

Length
2.95 cm
Width
1.40 cm
Height
3.25 cm
Weight
25 g

Package dimensions

Length
15.10 cm
Width
8.40 cm
Height
1.70 cm
Weight
43 g
