Best selling RC servos
Here’s a ranking of the best selling RC servos. To give you a quick overview, we’ve added the most important information about each product. This page always stays fresh and updates automatically.

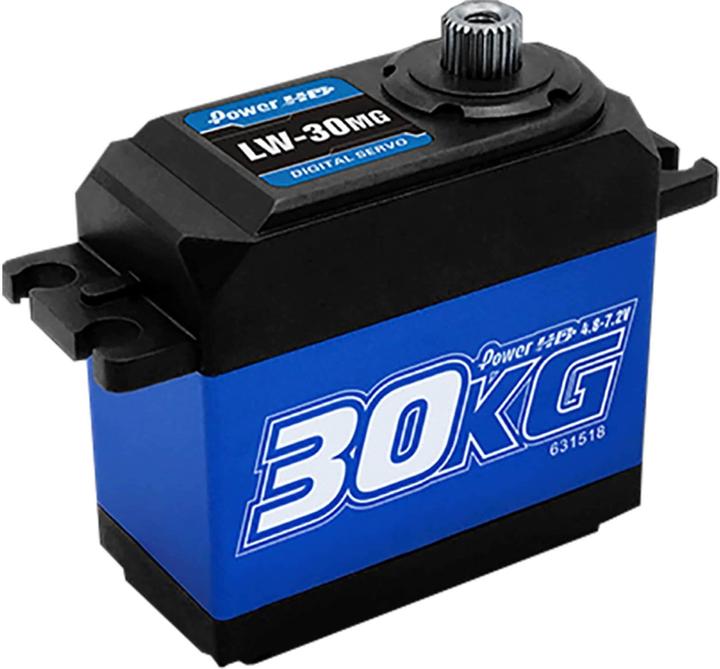

1. PowerHD Servo LW-30MG
The PowerHD Servo LW-30MG is a high-performance RC servo specifically designed for use in 1:10 scale remote-controlled vehicles. With its waterproof construction, it is ideal for various environments and weather conditions. The servo offers an impressive torque of up to 30 kg/cm, depending on the operating voltage, and enables a fast response time with actuation speeds of up to 0.14 seconds. The use of aluminum and copper in its construction ensures durability and reliability, while the double ball-bearing metal gear provides precise and smooth movement. This digital HV servo is an excellent choice for those who value performance and robustness.
- Waterproof design for use in various conditions
- Double ball-bearing metal gear for high precision
- Torque of up to 30 kg/cm at 7.2 V
- Fast actuation speed of 0.14 s at 7.2 V
- Made from high-quality materials such as aluminum and copper.
2. Amewi Amx 6208mg
Bearing type: double ball bearing. Motor type: coreless. Use this digital servo from Amewi for touring cars or drift cars. It impresses especially with a very fast response speed. Digital servos have a higher angular resolution compared to analog servos, and the servo position is controlled more quickly and precisely. Furthermore, they can often be programmed, allowing for adjustments to the zero point and speed, for example. Additionally, a digital servo typically requires about four times more power than an analog servo.
3. Savöx SB-3262SG (8,4V/35kg/0,065s) Brushless Digital Low Profile Servo mit Alugehäuse
The Savöx SB-3262SG is a highly advanced, digital brushless servo specifically designed for high-performance RC applications. With a compact low-profile design, this servo is ideal for RC cars and airplanes, particularly for 1/10 off-road buggies as well as 1/10 and 1/8 on-road vehicles. The patented brushless motor ensures efficient performance and improved responsiveness, while the aluminum casing not only provides durability but also allows for effective heat dissipation. This servo is built to meet the demands of challenging applications, offering a combination of high speed and torque that is essential for precise control and handling.
- Digital controller for precise control and responsiveness
- Water-resistant, suitable for various weather conditions
- Low profile design for applications with limited space
- High torque and speed for demanding tasks.
RC servos
CHF119.–
Savöx SB-3262SG (8,4V/35kg/0,065s) Brushless Digital Low Profile Servo mit Alugehäuse
4. DFRobot 15kg 270° servo DSS-M15S with metal gearbox
The DSS-M15S Servo from DFRobot is a powerful RC servo that is ideal for applications requiring high torque. With a robust metal gear, this servo offers impressive performance and durability. It can be easily operated with the Arduino Servo Library, making it a versatile choice for various projects. The servo has an operating angle of 270° and supports PWM communication, allowing for precise control. With a stall torque of up to 15 kg cm at 7.0V, it is capable of handling demanding tasks. The DSS-M15S is not only strong but also efficient, with a static current consumption of only 4mA at 6.0V. Its compact design and lightweight of 72g make it a practical solution for many applications.
- Robust metal gear for high durability
- 270° operating angle for versatile applications
- PWM communication for precise control
- Stall torque of up to 15 kg cm.
5. Purecrea High Torque Servo MG996R 10kg/cm
This robust, powerful servo is perfect for tasks that require a lot of strength. The servo features a durable metal gear and can be easily operated with the Arduino Servo Library. If you want to run multiple servos, there is also a motor shield or a servo driver with 16 channels available.
Technical details:
Gear: Metal
Operating voltage: 4.8 to 6V
Torque: 9 kg/cm at 4.8V or 10.5 kg/cm at 6V
Speed at 4.8V: 0.17 sec/60 degrees
Speed at 7.2V: 0.13 sec/60 degrees
Cable length: 290 mm
Operating temperature: 0°C to +55°C
Size: 40 x 20 x 40 mm
Weight: 64 g
Included in the package:
1x high torque servo TowerPro MG996R 10 kg/cm
4x servo arms
4x rubber dampers with metal sleeves
1x screw for servo arm
4x mounting screws.
6. Purecrea 360° High Torque Servo MG996R 10kg/cm
This robust 360° strong servo is perfect for tasks that require a lot of power. The servo is ideal for powered vehicles as it can rotate 360°. It features a durable metal gear and can be easily operated with the Arduino Servo Library. If you want to operate multiple servos, there is also a Motor Shield or a Servo Driver with 16 channels available.
Note: A 360° servo cannot target a specific angle. However, the 360° servo can continuously rotate left or right, making it excellent for building vehicles with Arduino.
Technical details:
- Gear: Metal
- Operating voltage: 4.8 to 7.2V
- Current draw without load: 120mA
- Current draw under full load: 1450mA
- Torque: 9kg/cm at 4.8V or 10.5kg/cm at 6V
- Speed at 4.8V: 0.19sec/60 degrees
- Speed at 6V: 0.18sec/60 degrees
- Cable length: 290mm
- Connector: JR/FP universal
- Operating temperature: 0°C to +55°C
- Size: 40 x 20 x 40mm
- Weight: 64g
Included in the package:
- 1x High Torque Servo TowerPro MG996R 10 kg/cm
- 4x Servo arms
- 4x Rubber dampers with metal sleeves
- 1x Screw for servo arm
- 4x Mounting screws.
7. Absima Servo HV Digital Full-Alu LP16DBF 16KG Team-Spec.
Servos are part of the RC system and serve as the foundation of a remote-controlled model. They are connected to the steering linkage and convert stick or rotary movements from the transmitter into steering movements for the vehicle. In combustion engine vehicles, they also act as throttle servos, controlling both the throttle of the carburetor and the brake. An undersized servo will have a longer response time and a shorter lifespan under load. Therefore, never skimp on the servo! A good servo doesn't have to be expensive, but it makes the model more reliable and lasts for years. In 1/8 and 1/10 RC cars, only standard-sized or low-profile servos are used. Our Team Spec servos are primarily used in competition vehicles and offer a range of excellent features:
Technical data highlights:
Servo category: High-speed / low profile
Operating voltage: 4.8 - 8.4V HV
Torque / speed @ 4.8V: 10.0kg / 0.078sec/60°
Torque / speed @ 6.0V: 13.0kg / 0.068sec/60°
Torque / speed @ 7.4V: 14.5kg / 0.062sec/60°
Torque / speed @ 8.4V: 16.0kg / 0.056sec/60°
Technology: Digital
Motor type: Brushless
Gear material: Reinforced steel
Housing material: AL6061 T6
Waterproof rating: IP65 waterproof
Bearings: Metal ball bearings (2)
Size: 40.8*20.2*26.5 mm
Weight: 61.0 g
Programmable: Yes, with USB interface adapter (sold separately).
8. Purecrea Digital servo tester ESC 4-channel
With this servo tester you can easily test and adjust servos. If you want to operate 4 servos at the same time, make sure you have a good power supply (2-3A).
With the Select button you can switch between three operating modes:S-1 => Manual mode (manual position adjustable via potentiometer)
S-2 => Bit mode neutral position (speed adjustable via potentiometer)
S-3 => Automatic mode (speed adjustable via potentiometer)
With the Pulse Width button you can set the servo signal cycle time:50H => 20us 50Hz suitable for analogue servos
125H => 8us 125Hz suitable for digital servos
250H => 4us 250Hz suitable for digital servos
Technical details:
Operating voltage: 5-6V DC
Number of servo channels: 4
Width of output signal: 800 to 2200us
Dimension: 75 x 28 x 25mm
Weight: 35g
Scope of delivery:
1x Digital Servo Tester ESC 4-channel.
9. Rc4Wd Servo Twister Extreme Coreless Digital-HV Metal Gearhead
The RC4WD Servo Twister Extreme is a highly advanced digital HV servo specifically designed for use in rock crawlers and other remote-controlled vehicles. With a robust metal gear and advanced coreless motor technology, this servo delivers impressive performance and reliability. It is waterproof, making it ideal for use in demanding conditions. The standard size and 25-tooth spline make it a versatile choice for various RC applications. With an operating voltage of 4.8 to 7.4 V and a maximum torque of up to 47 kg at 7.4 V, this servo can precisely control heavy loads. The speed of 0.09s at 7.4 V ensures quick reactions, making it perfect for dynamic driving maneuvers.
- Waterproof design for use in extreme conditions
- Maximum torque of 47 kg at 7.4 V
- Speed of 0.09s at 7.4 V for quick reactions
- Metal gears for increased durability and performance
- Coreless motor technology for improved efficiency and responsiveness.
10. JX-Servo PDI-1109HB 9g Digital Micro Servo 1.9Kg*cm
This is an affordable digital servo from JX. JX servos are known for their excellent price-performance ratio. The digital control of the servo ensures smooth torque, resulting in faster and more consistent response times.
Technical details:
Manufacturer: JX-Servo
Manufacturer SKU: PDI-1109HB
Input voltage: 4.8V-6V
Speed at 4.8V: 0.09s/60°
Speed at 6V: 0.07s/60°
Torque at 4.8V: 1.65 kg*cm
Torque at 6V: 1.9 kg*cm
Dead band: 1 µs 1520 µs/330hz
Cable length: 180mm
Max rotation angle: approx. 180°
Dimensions: 23.2 x 12 x 25.5
Net weight: 9.4g
Gross weight: 16g
Included in delivery:
1x PDI-1109HB 9g Digital Micro Servo 1.9Kg*cm
1x Screw for servo arm
2x Mounting screws
4x Servo arms.
