Purecrea Digital servo tester ESC 4-channel
Supplied by
Free shipping starting at 50.–

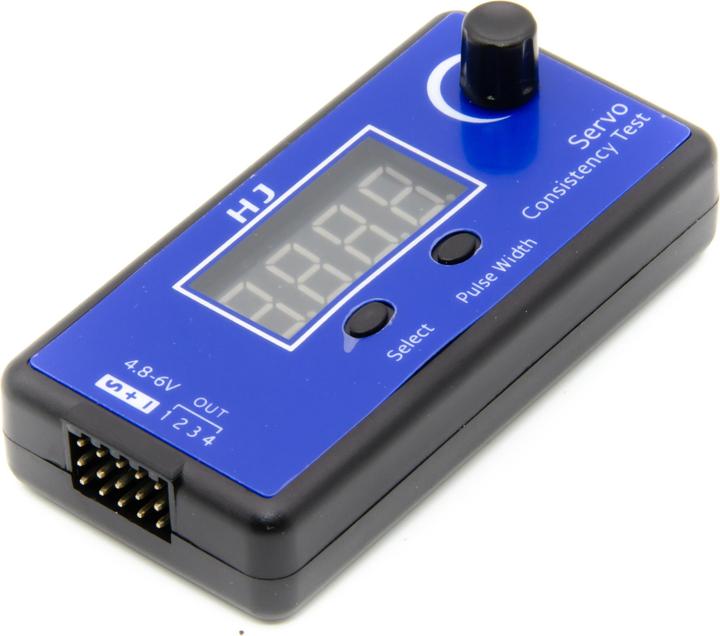

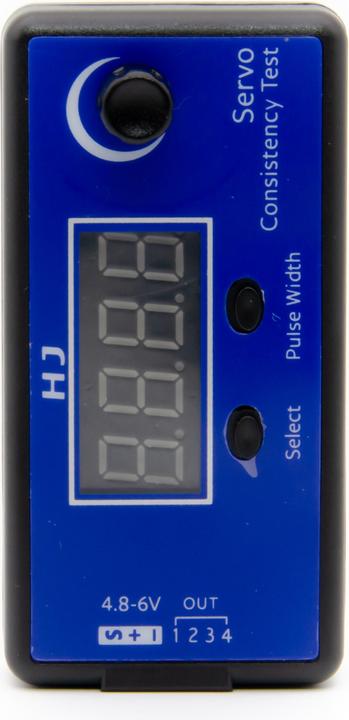

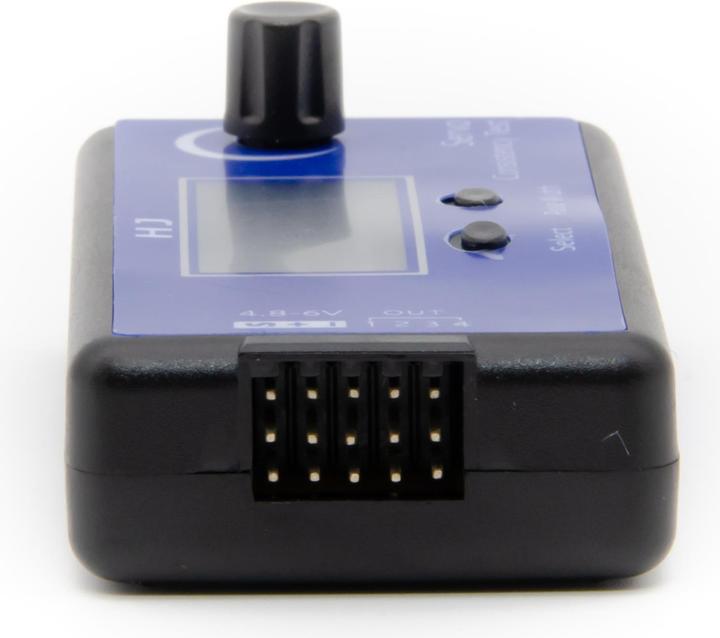

With this servo tester you can easily test and adjust servos. If you want to operate 4 servos at the same time, make sure you have a good power supply (2-3A).
With the Select button you can switch between three operating modes:S-1 => Manual mode (manual position adjustable via potentiometer)
S-2 => Bit mode neutral position (speed adjustable via potentiometer)
S-3 => Automatic mode (speed adjustable via potentiometer)
With the Pulse Width button you can set the servo signal cycle time:50H => 20us 50Hz suitable for analogue servos
125H => 8us 125Hz suitable for digital servos
250H => 4us 250Hz suitable for digital servos
Technical details:
Operating voltage: 5-6V DC
Number of servo channels: 4
Width of output signal: 800 to 2200us
Dimension: 75 x 28 x 25mm
Weight: 35g
Scope of delivery:
1x Digital Servo Tester ESC 4-channel.
moment of force | 5000000000 kg/cm |
Item number | 38771640 |
moment of force | 5000000000 kg/cm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x Digital Servo Tester ESC 4-channel |
Length | 2.80 cm |
Width | 7.50 cm |
Height | 2.50 cm |
Weight | 35 g |
