Best selling Electronics supplies + Casings from Niedax

On this page you’ll find a ranking of the best Electronics supplies + Casings from Niedax. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

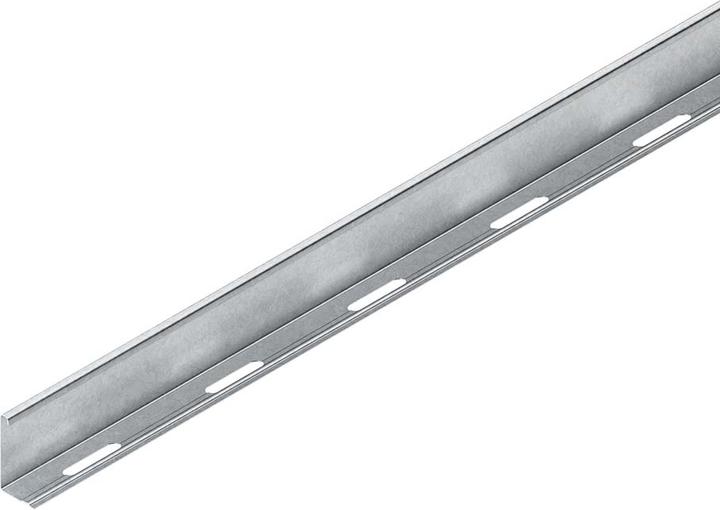

1. Niedax NIE RW50E3 divider 47x3000mm T0.8mm stainless steel

Niedax Divider RW 50 E3

Manufacturer: Niedax
Description: Divider
Type: RW 50 E3
Divider height: 47 mm
Length: 3000 mm
Design: L-profile
Mounting holes: yes
Mounting type: screwable
Suitable for cable tray: no
Suitable for cable ladder: yes
Suitable for cable duct: yes
Suitable for functional integrity: no
Material: stainless steel
Stainless steel, pickled: no
Material grade: rust and acid-resistant steel
Surface protection: other
Operating temperature: -20 to 120 °C

Niedax Divider RW 50 E3: additional details
Divider with edge protection, perforated bottom edge for screw fastening and continuously profiled for fitting into base or support tabs, for separating cables and lines with different voltages and functions. The potential equalization occurs automatically when clipping or screwing in, including proportional mounting accessories made of stainless steel. VDE certified! Please observe additional regulations for use in functional integrity!

Usable for:
Cable trays
Cable ducts/ladders
Wide span trays/ladders
Divider profile holders

Dimensions (approx. measurements)
H x Edge fold: 47 x 24 mm
Material thickness t: 0.8 mm
Delivery length L: 3000 mm
Material: stainless steel, material no. 1.4301, AISI 304.

2. Niedax NIE KWAT 300 Clamping adapter fire-delayed.

Niedax Clamp Adapter KWAT 300

Manufacturer: Niedax
Designation: Clamp Adapter
Type: KWAT 300
Material: Steel
Stainless Steel, Pickled: No
Material Quality: Other
Surface Protection: Hot-Dip Galvanized

The Niedax Clamp Adapter KWAT 300 is a clamp adapter for a 45° arm arrangement on T-beams with a flange width of 300 mm. It comes with mounting accessories for attaching the arm to the clamp adapter. The required clamping accessories for T-beams, such as 4 x HK 610/... and 4 x HSK..., must be ordered separately.

Generally, the arms must first be attached to the adapter. For the 45° adapters, the length of the required arms depends on the local conditions and the fittings to be used. The clamping attachment should be symmetrical, and the screws should be placed as close as possible to the flange.

The load capacity specifications of the arms being used apply. For the clamp adapters, these load capacity specifications are only valid if the surfaces of the T-columns and the profile clamps in the clamping area are made of steel or galvanized steel. If the construction surface at a clamping connection is painted, the paint must be removed, as otherwise the load capacity cannot be guaranteed.

Warning: Risk of slipping! If steel columns are coated with fire protection paint, it must not be removed without consultation and written approval from the client or construction management. In any case, the load introduction into the structure must be coordinated with the construction planning or construction management.

For hanging arm and wall arms: KTCL..., KTC...
For hanging arm and wall arms: KTAC..., KTAL..., KTAM..., KTA = 600 mm (F version), KTA...E3/E5

Dimensions (approximate): H x W: 296 x 400 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
Flange thickness of the beam in mm: [Customer information required]
EAN: 4013339838103.

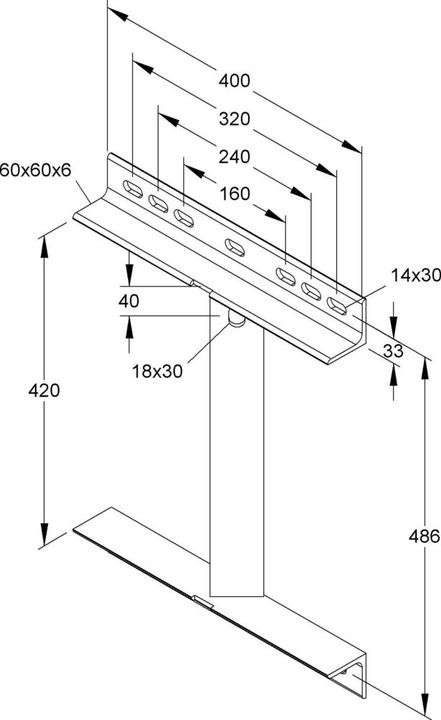

3. Niedax NIE KWATS300 Clamping adapter hot-dip galvanised DIN EN ISO 1461 incl.accessories

Niedax Clamp Adapter KWATS 300

Manufacturer: Niedax
Description: Clamp Adapter
Type: KWATS 300
Material: Steel
Stainless Steel, Pickled: No
Material Quality: Other
Surface Protection: Hot-dip Galvanized

Niedax Clamp Adapter KWATS 300: Additional Details
Clamp adapter for 45° arm configuration on T-beams with a flange width of 100 mm to 320 mm, including mounting accessories for attaching the arm to the clamp adapter. Required clamping accessories for T-beams, such as 4 x SKM 12X...(10.9), 4 x UGM 12, and 4 x HSKS..., must be ordered separately. Generally, the arms must be attached to the adapter first! For the 45° adapters, the length of the required arms depends on local conditions and the fittings used. The clamping attachment should be symmetrical, and the screws should be placed as close to the flange as possible. The load capacity specifications for the arms must be adhered to and apply only in conjunction with HSKS..., UGM 12, and M 12 screws, strength class 10.9, which must be tightened with a pre-tensioning torque of 123 Nm.

Particularly for connections that must transfer vertical loads through friction, it is essential to pay attention to the screw tightening torque and verify it with a torque wrench! The specified load values apply only to connections made of steel on steel (e.g., profile clamps). After applying half the load, the tightening torque of the screws must be checked again. Risk of slipping! If steel supports are coated with fire protection paint, it must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management.

For hanging and wall-mounted arms: KTAS..., KTASS...
Dimensions (approx. measurements) H x W: 540 x 400 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
Flange thickness of the beam in mm: [Customer specification required]
EAN: 4013339838202.

4. Niedax NIE RW60E3 divider 55x3000mm T0.8mm stainless steel

Niedax Divider RW 60 E3

Manufacturer: Niedax
Description: Divider
Type: RW 60 E3
Divider height: 55 mm
Length: 3000 mm
Design: L-profile
Mounting holes: yes
Mounting type: screwable
Suitable for cable trays: yes
Suitable for cable ladders: yes
Suitable for cable ducts: yes
Suitable for functional integrity: no
Material: stainless steel
Stainless steel, pickled: no
Material quality: rust and acid-resistant steel
Surface protection: other
Operating temperature: -20 to 120 °C

Niedax Divider RW 60 E3: additional details
Divider with edge protection, perforated bottom edge for screw mounting and continuously profiled for insertion into base or holding tabs, for separating cables and lines with different voltages and functions. Potential equalization occurs automatically when clipping or screwing in, including proportionate mounting accessories made of stainless steel. Please observe additional regulations for use in functional areas! VDE certified!

Usage for:
- Cable trays
- Cable ducts/ladders
- Wide span trays/ladders
- Divider profile holders

Dimensions (approx. measurements) H x edge fold: 55 x 24 mm
Material thickness t: 0.8 mm
Delivery length L: 3000 mm
Material: stainless steel, material no. 1.4301, AISI 304
EAN: 4013339333400.

5. Niedax Counter trough

The Niedax counter tray GW 54 is a high-quality electronic accessory specifically designed for use with hammer foot clamps and C-profile rails. It provides a reliable solution for securely fastening cables with a diameter of 50 to 54 mm. Made from halogen-free polyethylene (PE), the counter tray ensures high resistance to UV radiation and is suitable for use in a wide temperature range of -40 °C to 80 °C. The self-adhesive function on C-profile rails is supported by an integrated clamping spring, which facilitates installation and ensures a stable connection. With its robust construction and thoughtful features, the Niedax counter tray GW 54 is an ideal choice for professional applications in the field of electrical engineering.

- Made from halogen-free polyethylene (PE) for increased safety
- Self-adhesive on C-profile rails due to integrated clamping spring
- UV-resistant for long-term outdoor use
- Operating temperature range of -40 °C to 80 °C for versatile applications
- Suitable for cable diameters of 50 to 54 mm.

6. Niedax NIE KUGPK5050 Clamping head plate for profile U 5050 adjustable hot-dip galvanised.

The NIE KUGPK5050 clamping head plate from Niedax is a high-quality electronic accessory specifically designed for use with U 5050 type profiles. This adjustable clamping head plate provides a reliable and stable fastening solution, making it ideal for various applications in electrical engineering. With a height of 22 millimeters, a width of 40 millimeters, and a length of 112 millimeters, the plate is compact and functional. It is made from hot-dip galvanized material, which not only gives it an attractive silver color but also enhances its durability and resistance to environmental influences. The clamping head plate is delivered as a single piece, making it a practical addition to your projects. Made in Germany, the Niedax KUGPK5050 stands for quality and precision that is valued in the industry. This clamping head plate is an essential component for anyone who prioritizes safety and efficiency in their electrical installations.

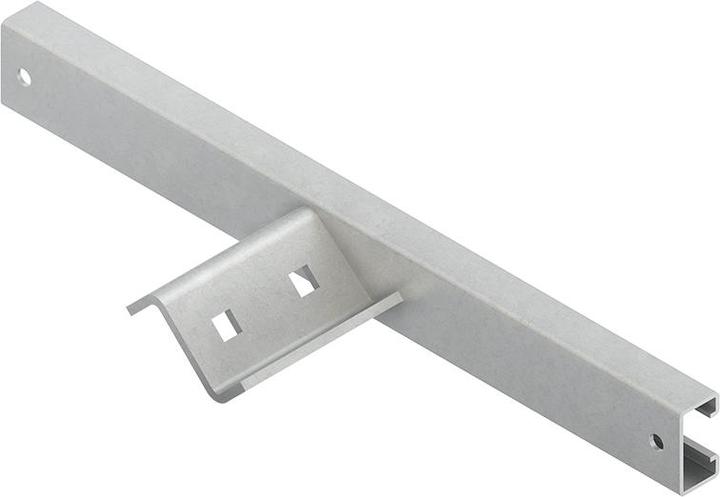

7. Niedax NIE KUDU 50 universal clamping head plate for profile U 50, U 5050 hot-dip galvanised

The NIE KUDU 50 Universal Clamping Head Plate is a versatile solution for clamping attachments to support profiles. It has been specifically designed for use with profiles U 50 and U 5050 and features a robust construction made of hot-dip galvanized steel, meeting the requirements of DIN EN ISO 1461. This clamping head plate allows for horizontal mounting and is suitable for support flange widths of up to 240 mm. It is ideal for cable tray runs that are parallel or crossing the support. The delivery includes proportional mounting accessories, while additional clamping accessories must be ordered separately. With its compact design and thoughtful dimensions, the KUDU 50 is a practical choice for various applications in the field of electronic accessories and enclosures.

- Suitable for support flange widths up to 240 mm
- Robust construction made of hot-dip galvanized steel
- Includes proportional mounting accessories
- Designed for cable tray runs parallel or crossing the support.

8. Niedax Profile clamp

The Niedax profile clamp HSKS 15 is a robust and reliable solution for clamping connections on steel beam flanges. This heavy-duty version is specifically designed for use with C-profiles and offers high stability and safety. Made from hot-dip galvanized steel according to DIN EN ISO 1461, the clamp ensures excellent corrosion resistance and durability. The profile clamp is easy to install and is suitable for flange thicknesses of 10 to 14 mm. With a clamping height of 15 mm, a width of 60 mm, and a length of 50 mm, it is versatile and meets the requirements in various applications in the field of electronic accessories and enclosures.

- Made from hot-dip galvanized steel for high corrosion resistance
- Suitable for flange thicknesses of 10 to 14 mm
- Easy installation on C-profiles
- Robust construction for high stability and safety.

9. Niedax NIE HU6040/1000E3 Hanging bar U-profile 60x40x1000mm stainless steel

Hanging pole, 3-sided continuously perforated U-profile with welded head plate, System HU 6040, for brackets for single, double, and triple-sided installation. To prevent deformation of the hanging pole profile during the installation of brackets, the hanging pole spacer profile HDS 60.40 E3 with hexagon screw must be considered for static reasons. When attaching the bracket to one side of the hanging pole profile, it is preferred that the closed side of the bracket aligns with the profile web of the hanging pole. For static reasons and to allow for easy placement of the protective cap, the bracket must be mounted 50 mm (from the bottom edge of the bracket to the end of the hanging pole) above the end of the hanging pole. VDE certified!

For brackets: KTAM E3, KTA E3, KTAS E3

Dimensions (approx. measurements):
Head plate L x W x t: 200 x 80 x 6 mm
Mounting hole: 13 x 28 mm
Center distance: 152 mm
U-profile: 40 x 60 x 40 mm
Material thickness t: 4 mm
Three-sided profile perforation, single row: 13 x 40 mm
Center distance: 50 mm
Total length L: 1006 mm
Material: Stainless steel, material no. 1.4301, AISI 304.

10. Niedax NIE KTTSS900 clamp boom very heavy 231X930mm 6,28 kN hot-dip galvanised.

Clamp arm, very heavy-duty design, for wall mounting and clamping attachment to bare steel beams with a flange width of 100 mm to 320 mm. Required clamping accessories for T-beams, such as 2 x SKM 12X, 2 x UGM 12, and 2 x HSKS, must be ordered separately. Required fastening accessories for wide-span cable trays/ladders must also be ordered separately. The clamping attachment should be symmetrical, and the screws should be placed as close to the flange as possible. The load capacity specifications apply only in conjunction with HSKS, UGM 12, and screws M 12, strength class 10.9, which must be tightened with a pre-tensioning torque of 123 Nm. Especially for connections that must transfer vertical loads through friction, it is essential to pay attention to the screw tightening torque and to verify it with a torque wrench. The specified load values apply only to connections of steel to steel (e.g., profile clamps). After applying half the load, the tightening torque of the screws must be checked again. Risk of slipping! If steel supports are coated with fire protection paint, it must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management.

Dimensions (approx. measurements):
Support height H: 231 mm
Angle width B: 400 mm
Support length L: 930 mm
Load capacity F at L/2: 6.28 kN tested in the system, applicable for beam flange widths of 220 mm and 300 mm.
Load capacity F2 at L/2: 6.5 kN tested in the system, applicable for beam flange widths of 220 mm.

Material of the arm: Steel, hot-dip galvanized according to DIN EN ISO 1461.
Flange thickness of the beam in mm: [Customer specification required].
