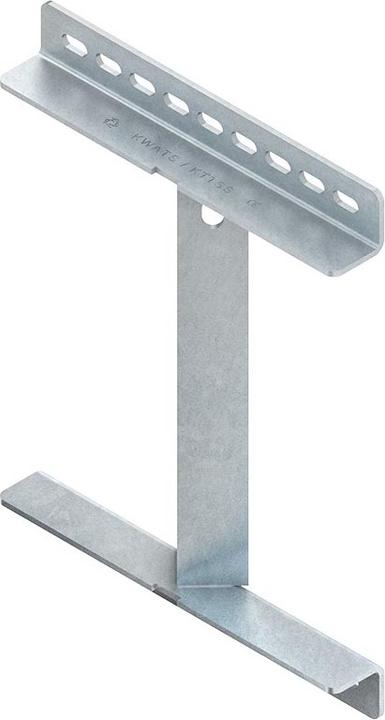

Niedax NIE KWATS300 Clamping adapter hot-dip galvanised DIN EN ISO 1461 incl.accessories

Niedax Clamp Adapter KWATS 300

Manufacturer: Niedax
Description: Clamp Adapter
Type: KWATS 300
Material: Steel
Stainless Steel, Pickled: No
Material Quality: Other
Surface Protection: Hot-dip Galvanized

Niedax Clamp Adapter KWATS 300: Additional Details
Clamp adapter for 45° arm configuration on T-beams with a flange width of 100 mm to 320 mm, including mounting accessories for attaching the arm to the clamp adapter. Required clamping accessories for T-beams, such as 4 x SKM 12X...(10.9), 4 x UGM 12, and 4 x HSKS..., must be ordered separately. Generally, the arms must be attached to the adapter first! For the 45° adapters, the length of the required arms depends on local conditions and the fittings used. The clamping attachment should be symmetrical, and the screws should be placed as close to the flange as possible. The load capacity specifications for the arms must be adhered to and apply only in conjunction with HSKS..., UGM 12, and M 12 screws, strength class 10.9, which must be tightened with a pre-tensioning torque of 123 Nm.

Particularly for connections that must transfer vertical loads through friction, it is essential to pay attention to the screw tightening torque and verify it with a torque wrench! The specified load values apply only to connections made of steel on steel (e.g., profile clamps). After applying half the load, the tightening torque of the screws must be checked again. Risk of slipping! If steel supports are coated with fire protection paint, it must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management.

For hanging and wall-mounted arms: KTAS..., KTASS...
Dimensions (approx. measurements) H x W: 540 x 400 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
Flange thickness of the beam in mm: [Customer specification required]
EAN: 4013339838202.
