Niedax NIE RW60E3 divider 55x3000mm T0.8mm stainless steel

Niedax Divider RW 60 E3

Manufacturer: Niedax
Description: Divider
Type: RW 60 E3
Divider height: 55 mm
Length: 3000 mm
Design: L-profile
Mounting holes: yes
Mounting type: screwable
Suitable for cable trays: yes
Suitable for cable ladders: yes
Suitable for cable ducts: yes
Suitable for functional integrity: no
Material: stainless steel
Stainless steel, pickled: no
Material quality: rust and acid-resistant steel
Surface protection: other
Operating temperature: -20 to 120 °C

Niedax Divider RW 60 E3: additional details
Divider with edge protection, perforated bottom edge for screw mounting and continuously profiled for insertion into base or holding tabs, for separating cables and lines with different voltages and functions. Potential equalization occurs automatically when clipping or screwing in, including proportionate mounting accessories made of stainless steel. Please observe additional regulations for use in functional areas! VDE certified!

Usage for:

• Cable trays
• Cable ducts/ladders
• Wide span trays/ladders
• Divider profile holders

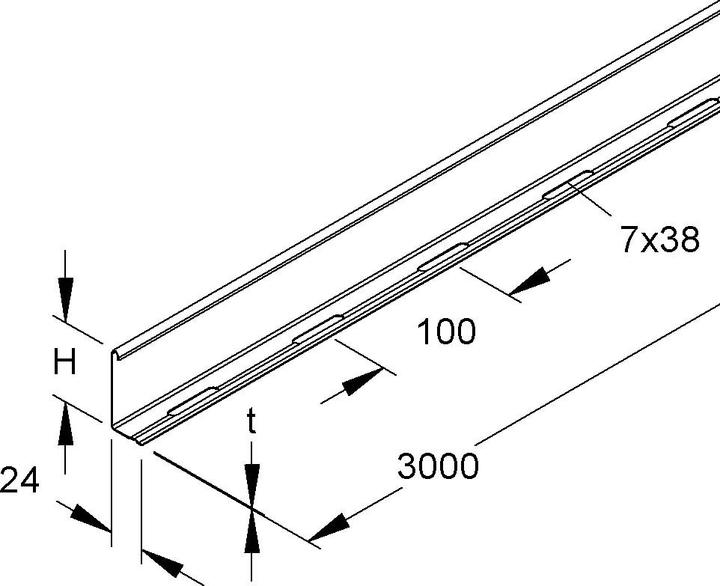

Dimensions (approx. measurements) H x edge fold: 55 x 24 mm
Material thickness t: 0.8 mm
Delivery length L: 3000 mm
Material: stainless steel, material no. 1.4301, AISI 304
EAN: 4013339333400.
