Best selling Electronics modules from WaveShare
On this page you’ll find a ranking of the best Electronics modules from WaveShare. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. WaveShare PoE HAT for Raspberry Pi 5
With this module, it is possible to power your Raspberry Pi with both network connectivity and electricity using a single Ethernet cable.
2. WaveShare PCIe auf M.2 SSD HAT+ mit PoE für Raspberry Pi 5
The PCIe to M.2 SSD HAT+ with PoE for Raspberry Pi 5 is an innovative expansion that offers a powerful and compact solution for integrating M.2 SSDs and network connectivity. This HAT module enables the use of Power over Ethernet (PoE), allowing both power supply and network connection to be realized through a single cable. It supports NVMe protocols, ensuring high read and write speeds while accommodating M.2 SSDs in the 2230 and 2242 formats. Additionally, the module allows the Raspberry Pi to boot directly from the SSD, enhancing flexibility and efficiency. An integrated active fan provides optimal cooling, even under heavy use, ensuring stable and reliable performance. The board is specifically designed for the Raspberry Pi 5 and utilizes the 16-pin PCIe connector for smooth connections and high transfer rates. Furthermore, additional accessories can be connected via the 40-pin GPIO header.
- Supports IEEE 802.3af/at PoE standard for stable network connection and power supply over a single cable
- Compatible with Raspberry Pi 5, but not with older models like Pi 4B or Pi 3B+
- Enables direct boot from M.2 SSDs, reducing system startup times
- Integrated active fan for optimal cooling and stability during intensive use
- Supports M.2 SSDs in NVMe format for high data transfer rates.
3. WaveShare 10.1inch DSI Capacitive Touch Display
Take your project to the next level with the 10.1-inch DSI Capacitive Touch Display from Waveshare. The display offers an impressive resolution of 800×1280 pixels and impresses with its brilliant colour reproduction thanks to IPS technology. Optical bonding technology gives you a particularly clear display and greater robustness against environmental influences. The integrated capacitive touch function allows smooth and precise operation with up to ten fingers simultaneously. This display has been specially developed for use with the Raspberry Pi via the DSI interface, which enables easy integration. The display comes with a robust toughened glass panel, which is ideal for demanding applications. The low latency of touch detection gives you a responsive user experience. An energy-efficient backlight ensures that you can benefit from a long operating time even during extended use. Whether for industrial controls, multimedia applications or DIY projects - this display is versatile and will inspire you with its quality.
4. WaveShare PCIe auf M.2 SSD HAT+ (B) mit PoE für Raspberry Pi 5
The PCIe to M.2 SSD HAT+ (B) combines Power over Ethernet (PoE) with PCIe expansion for the Raspberry Pi 5. This innovative solution supports M.2 NVMe SSDs in the formats 2230, 2242, 2260 and 2280, which significantly increases the storage performance of the Raspberry Pi. With the IEEE 802.3af/at PoE standard, this HAT delivers both network connectivity and power over a single cable. Thanks to the support for PCIe Gen2 and Gen3, it offers a high data transfer rate and enables booting directly from the SSD. The built-in 40-pin GPIO header allows the use of additional HATs. With an integrated heat sink and LEDs for status indication, stable and reliable performance is guaranteed.
Recommended accessories:
- Raspberry Pi 5
- M.2 SSD
- Raspberry Pi 5 active cooler with fan (B)
- Ethernet cable
Features:
- PoE function: Supports the IEEE 802.3af/at standard for network and power supply via a single cable.
- NVMe support: Compatible with NVMe SSDs in sizes 2230 to 2280 for maximum flexibility.
- High performance: PCIe Gen2/Gen3 modes ensure fast read and write speeds.
- Power outputs: 5V with up to 4.5A and 12V with up to 2A for Raspberry Pi and additional devices.
- Expandability: Standard 40-pin GPIO header for use with other HATs.
- Compatibility: Specially designed for the Raspberry Pi 5, not compatible with older models.
Technical specifications:
- Manufacturer: Waveshare
- Manufacturer SKU: 29320
- Input voltage: 37V - 57V DC via PoE.
- Current output: 5V 4.5A (GPIO), 12V 2A (2-pin connector).
- Network standard: IEEE 802.3af/at.
- SSD support: NVMe protocol, formats 2230, 2242, 2260, 2280.
- PCIe version: Gen2/Gen3.
- Compatibility: Only with Raspberry Pi 5
- Dimension: 85 x 56 x 23.5 mm
- Weight: 66 g
Scope of delivery:
- 1x PCIe to M.2 SSD HAT+ (B) with PoE for Raspberry Pi 5
- 1× 16-pin PCIe cable
- 1× SSD mounting screw
- 1× screw set.
5. WaveShare 3.5 Inch HDMI LCD Ips Touch Resistive Screen
6. WaveShare GPIO adapter for Raspberry Pi 400
Adapter that allows you to remote the GPIO port for better accessibility.
Electronics modules
Quantity discount
CHF8.15 per piece for 2 units
WaveShare GPIO adapter for Raspberry Pi 400
7. WaveShare SpotPear expansion board for Pi B+
The SpotPear DVK512 expansion shield from WaveShare offers you the following:
- Stacked pin headers to connect other expansions or an LCD
- UART interface: for connecting UART modules for RS232, RS485, etc.
- 8 I/O interface: for connecting expansions such as the Mix Board
- SPI interface: for connecting SPI modules
- I2C interface: for connecting I2C modules
- Character LCD interface: for connecting a 16x02 LCD
- USB port: USB to UART converter (onboard CP2102)
- Power status LED
- User LEDs
- User buttons
- Potentiometer: to adjust the contrast of the 1602 LCD
- RTC battery holder
- PCF8563: onboard RTC chip
- 32.768K crystal: RTC crystal
- CP2102: onboard USB to UART chip, e.g., for debugging
- CP2102 jumper
- RTC jumper
- User LEDs jumper
- User buttons jumper
All used pins can be individually released via jumpers, allowing you to still use all available expansions for your Pi.
At Play-Zone, you will receive the Pear Board including the MixBoard expansion, a remote control, a 16x02 LCD, as well as a USB cable and mounting materials.
The Mix Board includes an infrared receiver, a temperature sensor, and a small joystick with a button.
With the product, you will receive a download link for a customized image file with all example programs for controlling the individual expansions.

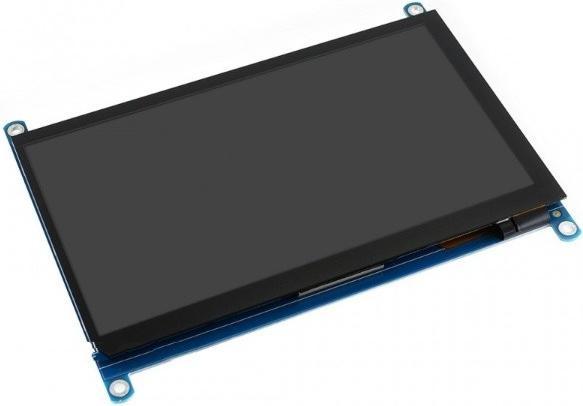

8. WaveShare LCD touch screen

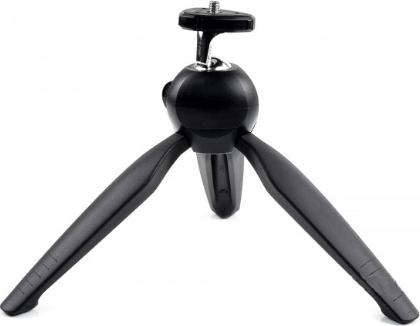

9. WaveShare Raspberry Pi HQ camera mini-tripod
The Raspberry Pi HQ Camera Mini Tripod from WaveShare is a practical accessory for the Raspberry Pi HQ camera. This electronic module provides stable and flexible support, allowing the camera to be fixed in various positions for optimal shots. The mini tripod is lightweight and compact, making it ideal for use on the go or in different environments. It is specifically designed for use with Raspberry Pi hardware, ensuring easy assembly and handling. The mini tripod is a valuable addition for anyone looking to expand the capabilities of the Raspberry Pi camera, whether for photography, videography, or other creative projects. Made in China, this product combines functionality and user-friendliness to meet the needs of technology enthusiasts.
Electronics modules
Quantity discount
CHF13.30 per piece for 2 units
WaveShare Raspberry Pi HQ camera mini-tripod
10. WaveShare 13.3" capacitive touchscreen LCD
