WaveShare SpotPear expansion board for Pi B+

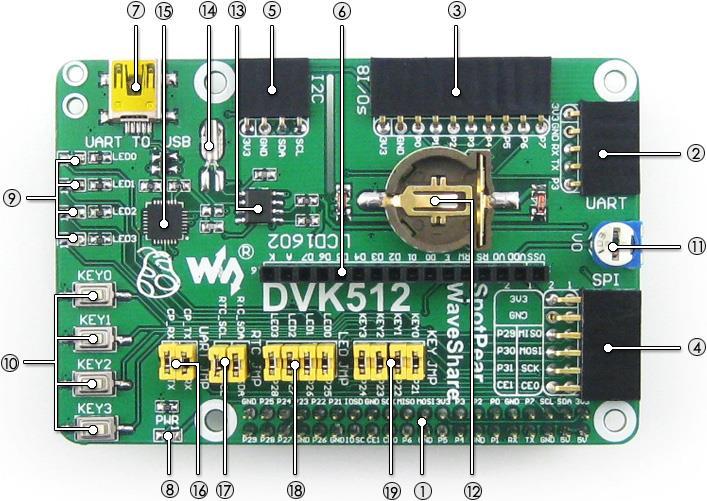

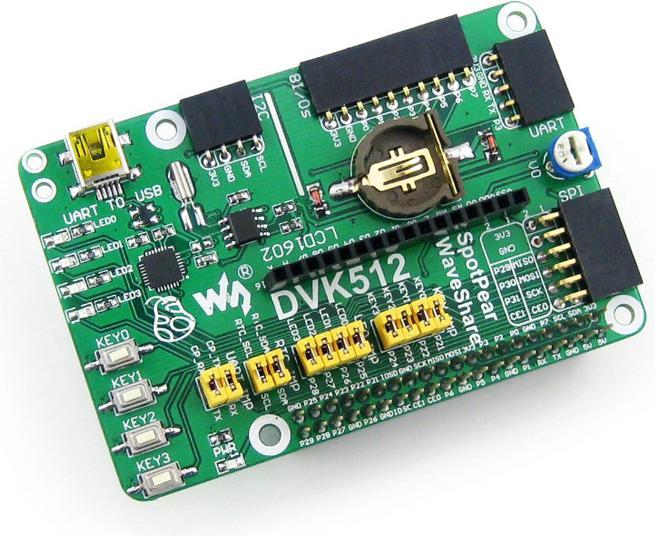

The SpotPear DVK512 expansion shield from WaveShare offers you the following:

• Stacked pin headers to connect other expansions or an LCD
• UART interface: for connecting UART modules for RS232, RS485, etc.
• 8 I/O interface: for connecting expansions such as the Mix Board
• SPI interface: for connecting SPI modules
• I2C interface: for connecting I2C modules

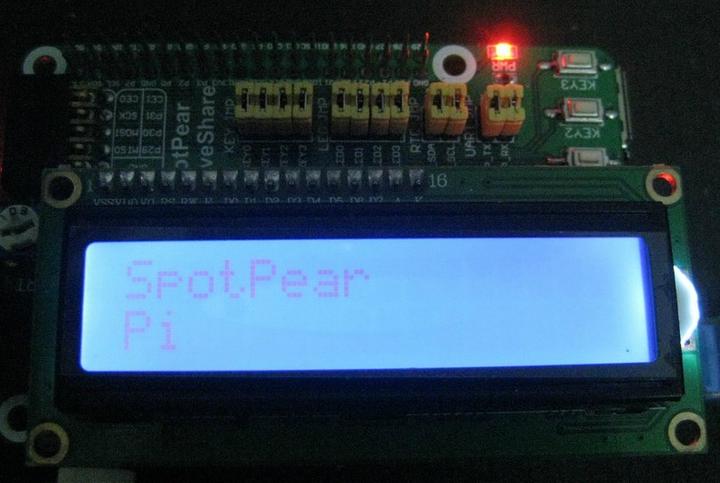

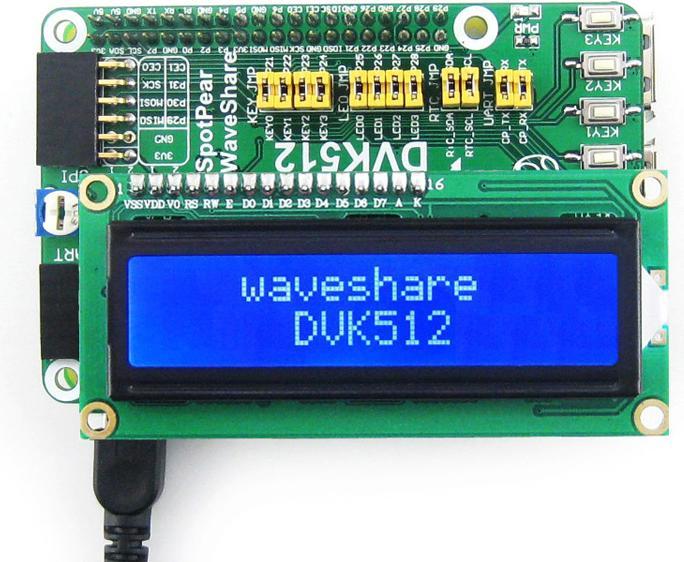

• Character LCD interface: for connecting a 16x02 LCD
• USB port: USB to UART converter (onboard CP2102)

• Power status LED
• User LEDs
• User buttons
• Potentiometer: to adjust the contrast of the 1602 LCD

• RTC battery holder
• PCF8563: onboard RTC chip
• 32.768K crystal: RTC crystal
• CP2102: onboard USB to UART chip, e.g., for debugging
• CP2102 jumper
• RTC jumper
• User LEDs jumper
• User buttons jumper

All used pins can be individually released via jumpers, allowing you to still use all available expansions for your Pi.

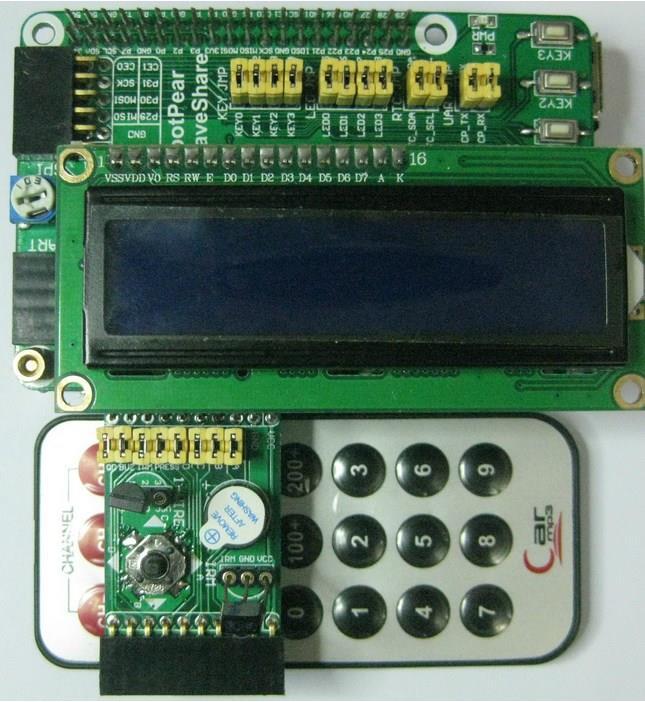

At Play-Zone, you will receive the Pear Board including the MixBoard expansion, a remote control, a 16x02 LCD, as well as a USB cable and mounting materials.

The Mix Board includes an infrared receiver, a temperature sensor, and a small joystick with a button.

With the product, you will receive a download link for a customized image file with all example programs for controlling the individual expansions.
