Victron Energy Orion-Tr Smart 24/48-8,5 isoliert
Only 3 pieces in stock at supplier
Nominal current5
Product details

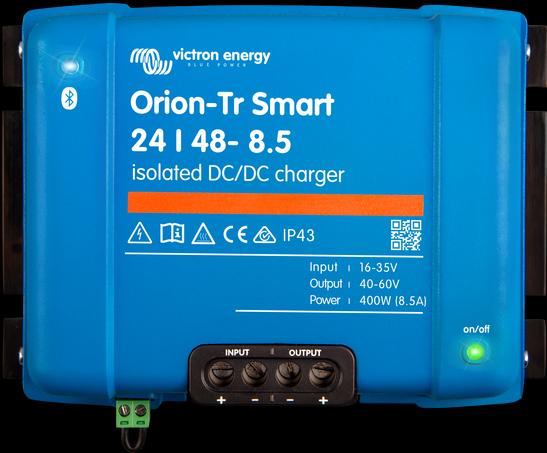

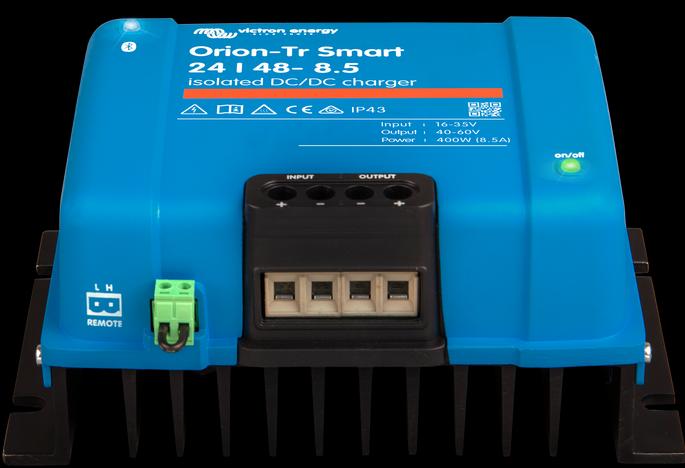

The Victron Orion-Tr Smart 24/48-8.5 is an isolated DC-DC charger designed for a variety of applications, particularly in vehicles with smart alternators of Euro 5 and Euro 6 classes. This device offers a flexible solution for charging service batteries by providing precise and controlled charging power, even in situations where the charging voltage is insufficient or voltage drops occur due to long cables. With a wide input and output voltage range, the Orion-Tr Smart is ideal for use in motorhomes, boats, and other mobile applications. The ability to control the device via Bluetooth Smart allows for easy adjustment of settings and access to important data through the VictronConnect app. This makes the Orion-Tr Smart a practical and user-friendly solution for anyone in need of a reliable power supply.
- Bluetooth Smart capable for easy control and adjustment of settings
- Suitable for use as a constant voltage source
- Protects the starter/input battery from discharge
- Optimized for vehicles with smart alternators.
Nominal voltage | 48 V |
Nominal current | 8.50 A |
Safety function | Overheating, Short circuit |
Item number | 54603554 |
Manufacturer | Victron Energy |
Category | Charge controller |
Manufacturer no. | ORI244840120 |
Release date | 11.2.2025 |
External links |
Material | Open ends 16mm2 |
Nominal voltage | 48 V |
Nominal current | 8.50 A |
Power output | 400 W |
Safety function | Overheating, Short circuit |
Display type | Digital |
Protection type (IP code) | IP43 |
Country of origin | Germany |
CO₂ emissions | 105.97 kg |
Climate contribution | CHF 2.52 |
Items per sales unit | 1x |

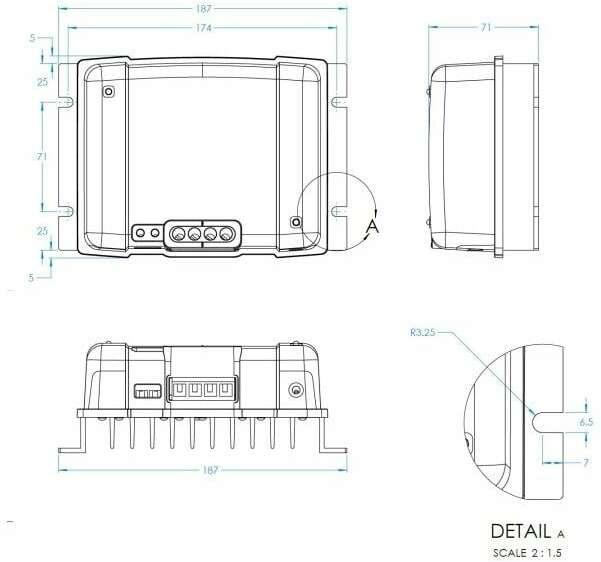

Length | 7 cm |
Width | 18.60 cm |
Height | 13 cm |
Weight | 1600 g |
Length | 20.90 cm |
Width | 13.40 cm |
Height | 10.10 cm |
Weight | 1.56 kg |
