Turck Actuator and sensor cable PUR connecting cable

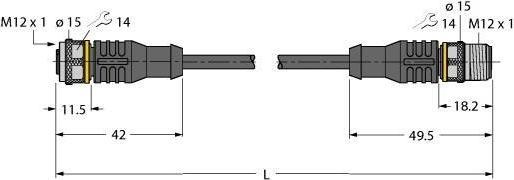

Turck actuator and sensor cable RKC8T15RSC8T/TXY3013 Manufacturer :Turck Designation :Actuator and sensor cable PUR Type :RKC8T15RSC8T/TXY3013 Sensor cable PUR Type :RKC8T15RSC8T/TXY3013 Number of poles :8 Type of electrical connection, field side :M12 Type of plug contact, field side :Male Arrangement of cable entry, field side :straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :straight Cable length :15 m Cable sheath material :polyurethane (PUR) Cable sheath colour :yellow With LED indicator :no Shielded :no Cable type :multi-core Contact base material :CuZn Contact coating material :gold Perm. Perm. external cable temperature after installation without vibration :-50..80 °C Perm. external cable temperature during installation/handling :-25..80 °C Rated current In :2 A Rated voltage :30 V Turck actuator and sensor cable RKC8T15 Sensor cable RKC8T15RSC8T/TXY3013: more details Actuator and sensor cable / PUR, connecting cable, M12 coupling, straight, 8-pin, cable length: 15 metres, sheath material: PUR, sheath colour: yellow, grip body colour: Yellow, Suitable for drag chains, Resistant to welding sparks, Resistant to chemicals, UV and oil, Flame-retardant, Free from halogen, silicone, PVC and LABS, Particularly abrasion-resistant, Approval: cULus, RoHS-compliant, Protection class IP67, M12 connector, straight, 8-pin , EAN: 4047101435719.
