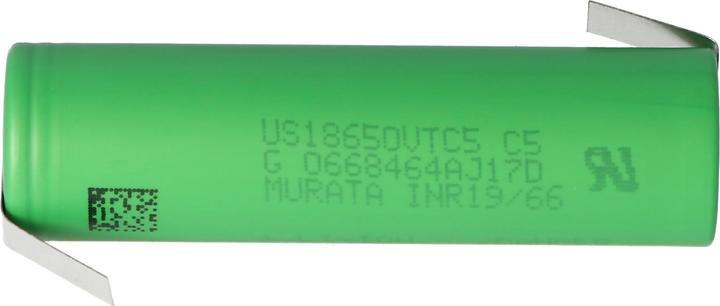

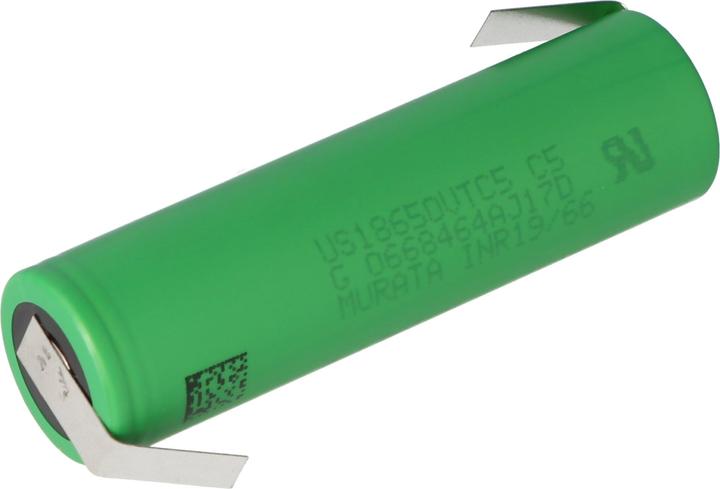

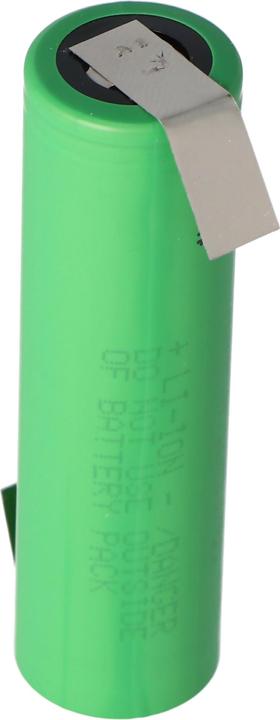

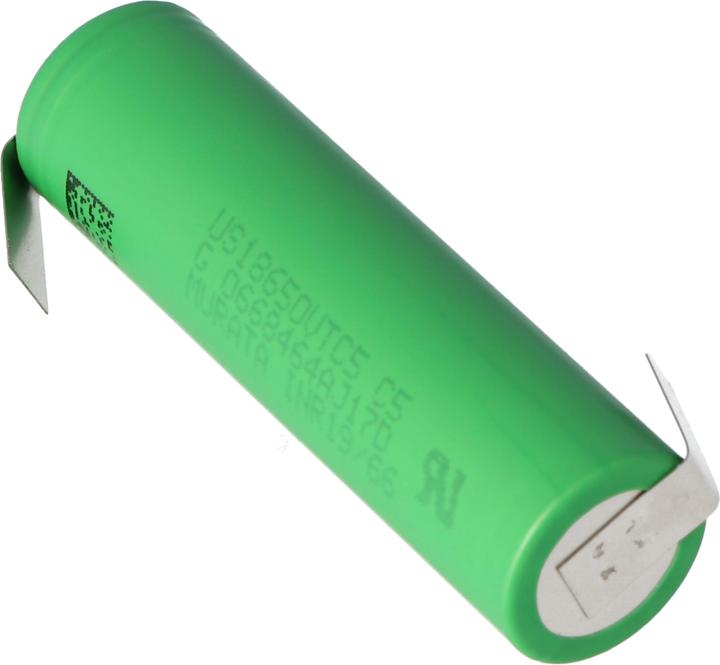

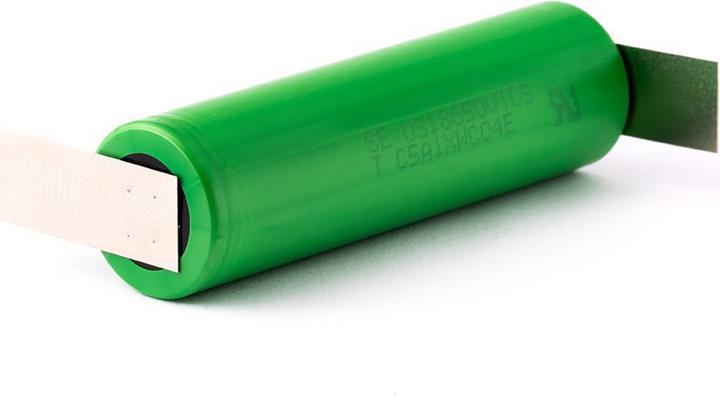

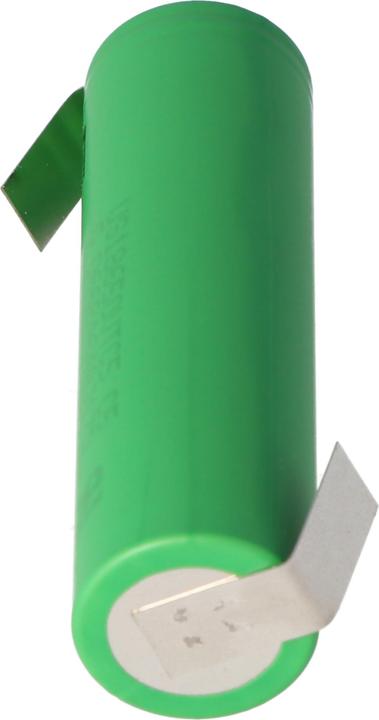

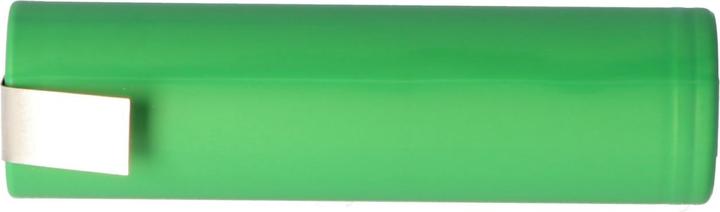

Sony Battery Konion US18650VTC5 + solder tag Z

1 pcs., 18650, 2600 mAh
CHF26.17/1pcs.
Ratings
BrandMore from Sony
Delivered between Thu, 8.5. and Tue, 13.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

A high-quality high-current cell developed by Sony with a discharge current of up to 30A (12C). Ideal for tools and industrial applications. Sony Konion US18650 VTC5 with solder tab Z.

Capacity: 2600mAh
Min. Capacity: 2500mAh
Nominal Voltage: 3.6V - 3.7V
Charge Termination Voltage: 4.2V ± 0.05V
Discharge Termination Voltage: 2.0V
Charge Current: 0.25A - 2.5A
Max. Charge Current: 4A
Max. Constant Discharge Current (with temperature monitoring): 12C = 30A
Max. Constant Discharge Current (without temperature monitoring): 7.5C = 19A
Chemical Composition: LiNiMnCoO2
Protection Circuit: no

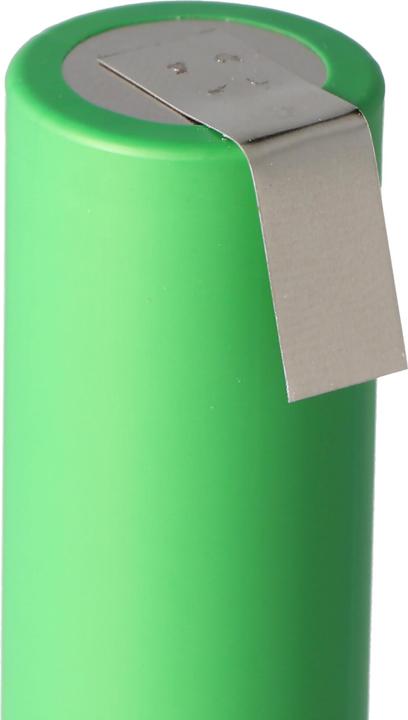

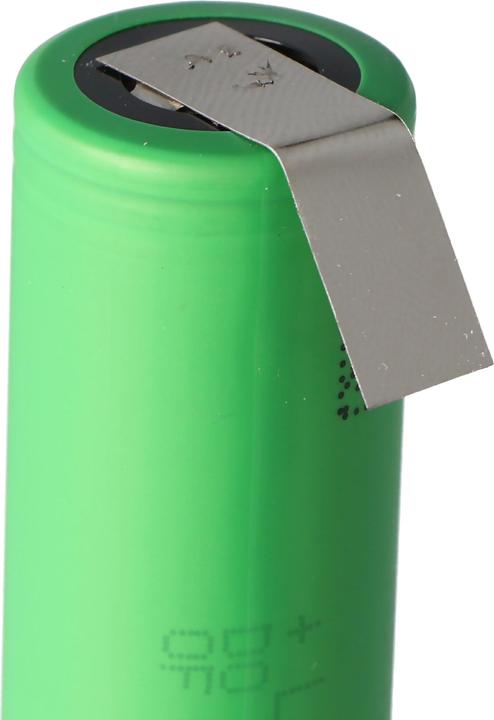

Solder Tabs LxWxT in mm: 27 x 10 x 0.15
Diameter: 18.2 mm ± 0.05 mm
Height: 65.4 mm ± 0.15 mm
Weight: 46 g ± 0.1 g
Charging Method: CC-CV

Safety Notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by a high energy density.

Technical Data for "Sony Konion US18650 VTC5 - 2600mAh, 3.6V - 3.7V + Solder Tab Z":
Normal Charge Current/Charging Time: 2500mA/3h
Max. Charge Current/Charging Time: 4000mA/2.5h
Operating Temperature for Charging: 0 °C - 45 °C
Operating Temperature for Discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged beyond a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advisable to charge the batteries only up to a certain state of charge.

Key specifications

Items per sales unit
1 pcs.
Battery type
Li-ion
Voltage
3.70 V
Item number
13101480

General information

Manufacturer
Sony
Category
Batteries
Manufacturer no.
AKT-1006662
Release date
19.4.2020

Battery properties

Battery size
18650
Voltage
3.70 V
Battery type
Li-ion
Battery capacity
2600 mAh
Rechargeable
Rechargeable

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Sony fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
65.40 mm
Diameter
18.20 mm
Weight
46 g
