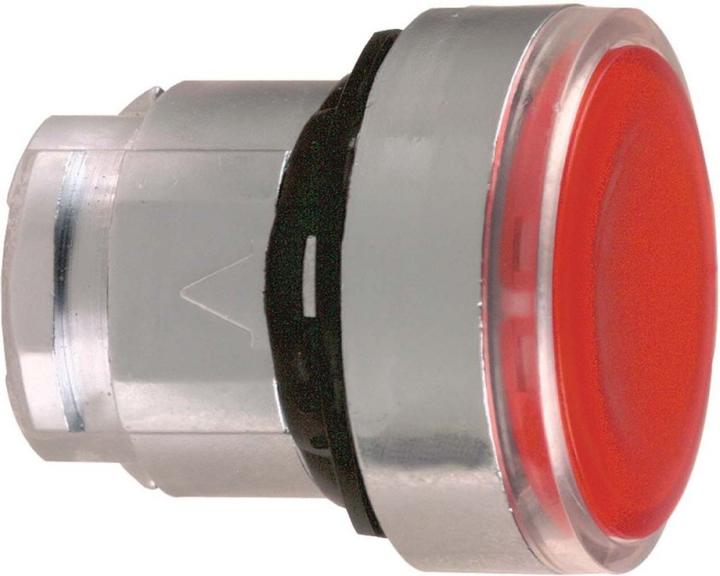

Schneider Electric Front element

Schneider Electric front element luminous print. ZB4BH0483. Manufacturer: Schneider Electric. Designation: Illuminated front element. Diameter: 22 mm, color: red. Number of command points: 1. Lens design: round. Hole diameter: 22.5 mm. Knob design: flat. Suitable for lighting: yes. With protective cover: no. Labelling: no. Switching function latching: yes. Keying: no. With front ring: yes. Front ring material: metal. Front ring color: chrome. Protection class (IP), front: IP66. Protection class (NEMA), front: other.

Further details: Front element for illuminated pushbutton Harmony ZB4. Front red, cover chrome-coated metal, unlabelled. Dimensions (WxHxD): 29 x 29 x 30 mm, mounting diameter: 22 mm, weight: 0.026 kg. Mechanical life: 500,000 cycles. Round head, standard. With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C. The modular metal range with 22 mm mounting dimension combines easy installation, efficiency, and modern design. UL listed, GL, DNV, BV, LROS (Lloyds register of shipping), CSA, RINA certifications. Product standards according to EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-5, JIS C 4520, EN/IEC 60947-5-1, EN/IEC 60947-1. EAN: 3389110067668.
